Quick Summary
The HTW-FC09-FVMN-24S modulating thermostat is designed for fan coil unit control. It manages 3-speed fans, EC fans, and 0–10V valve regulation. The controller supports two-pipe FCU systems with modulating valve control. A built-in transformer provides 24V output for valve operation.
This page explains how the modulating thermostat works in FCU control projects. It describes the practical meaning of key control functions. Technical parameters and wiring references are also included. Typical engineering questions and possible project customisation options are also discussed.
Modulating Thermostat Functional Highlights
(This section introduces the main control functions and their engineering value in fan coil unit HVAC systems.)
(01) 3-speed fan and EC fan support
This function allows one thermostat model to manage both traditional and EC fan units. It simplifies project deployment and reduces model variation during installation and maintenance.
(02) Two-pipe 0–10V modulating valve control
The thermostat regulates valve opening using a continuous control signal. This allows smoother temperature control and reduces frequent on/off cycles in FCU systems.
(03) Built-in transformer with 24V valve output
The integrated transformer provides stable 24V output for valve operation. This reduces the need for external power modules and simplifies wiring during project installation.
(04) RS485 Modbus communication
Modbus communication allows the thermostat to connect with building management systems. Central monitoring helps facility teams supervise room temperature and system status.
(05) External sensor function
An external temperature sensor can measure temperature from another location. This improves control accuracy when wall installation positions cannot reflect actual room temperature.
Modulating Thermostat Display

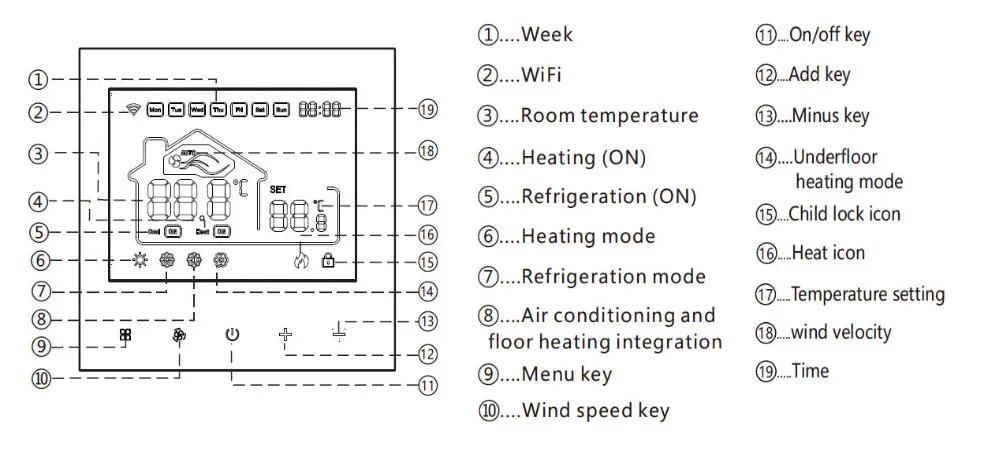

(This section shows the thermostat appearance, screen interface, and installation dimensions of this model.)
Modulating Thermostat Specifications
(This section lists the key technical parameters relevant to this thermostat model.)
| Parameter | Value |
|---|---|
| Power Supply | 95~240Vac, 50/60Hz |
| Fan Relay Load | 5A |
| Built-in Sensor | NTC3950, 10K |
| Temperature Accuracy | ±0.5°C |
| Set-Point Range | 5~35°C |
| Warranty | 2 Year |
| Installation | Standard 86×86mm Box |
Modulating Thermostat Wiring Diagram
(This section provides the wiring diagram for this thermostat in fan coil HVAC control systems.)
Guide
(This section explains what configuration the model code refers to.)
| Fan coil series | xx stands for |
| EC | EC fan |
| 2/4 | 2 for 2-pipe on/off; 4 for 4-pipe on/off system |
| M | Modulating valve control |
| W | Wi-Fi |
| N/B | N for Modbus; B for BACnet |
| K/E | K for Keycard; E for External sensor |
| 24 | Powered by 24V, or with 24V output for 0-10V valve |
| Example HTW-WF11-FC-xx: if xx = 2EN, it stands for a 3-speed fan, 2-pipe system with on/off valve control, external sensor function, and Modbus communication. Most sub-models are ready-made. Kindly contact us to confirm availability. | |
Project Fit & Customization
(This section describes project suitability, system limitations, and available customization options.)
This thermostat does not support four-pipe FCU systems or on/off valve control logic. Projects requiring BACnet communication are also not suitable for this model. Systems needing mobile app control or Wi-Fi connection should consider other thermostat options.
Despite these limitations mentioned above, certain functions may be customised for specific projects. Communication protocols or control logic may be adjusted when hardware conditions allow. Engineering teams may discuss project needs to evaluate feasible changes.
OEM cooperation is also supported for brand projects or distribution partners. Logo printing, housing colour, and packaging labels may be customised. Such options help match project identity and installation requirements.
Certifications

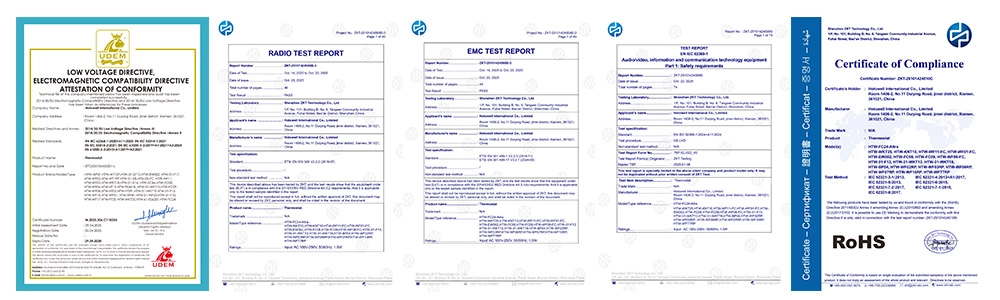

(This thermostat complies with European market requirements and is supported by certifications such as CE, RoHS, LVD test reports, EMC test reports, etc)
