Quick Summary
This HTW-MT8600 model is a 24V heat pump thermostat designed for low-voltage HVAC control. It works with conventional systems and fan coil units. The controller manages fan operation and valve outputs in both cooling and heating conditions. It also supports staged outputs for stable temperature control in different load conditions.
This page explains how the Heat Pump Thermostat works in real systems. It also covers control logic, parameter confirmation, and common installation questions. Buyers can understand how to match the unit with their project. It also shows what can be discussed for project-level adjustments and practical use.
Key Functional Highlights
(This section explains the main control functions of this Heat Pump Thermostat and how Multi-stage output improves stability and system efficiency in real HVAC operation.)
(01) 24V low-voltage operation
The unit uses a 24V supply, which suits most HVAC control standards. It reduces electrical risk during installation and service work. This design also helps integration with existing low-voltage control systems.
(02) Conventional system compatibility
This thermostat works with standard heating and cooling systems. It supports furnace, air conditioning, and simple rooftop units. This allows one model to cover multiple common project types.
(03) Heat pump control logic
The Heat Pump Thermostat supports reversing valve and AUX heating control. It can operate systems with or without backup heating stages. This ensures stable operation in colder climates or variable load conditions.
(04) Multi-stage temperature control
The controller supports staged outputs for cooling and heating. This Multi-stage control helps reduce temperature swings. It also improves energy efficiency during partial load operation.
(05) 2 / 4-pipe fan coil support
This model can control fan coil units using on/off valves. It works with both 2-pipe and 4-pipe configurations. This makes it suitable for hotels, apartments, and similar projects.

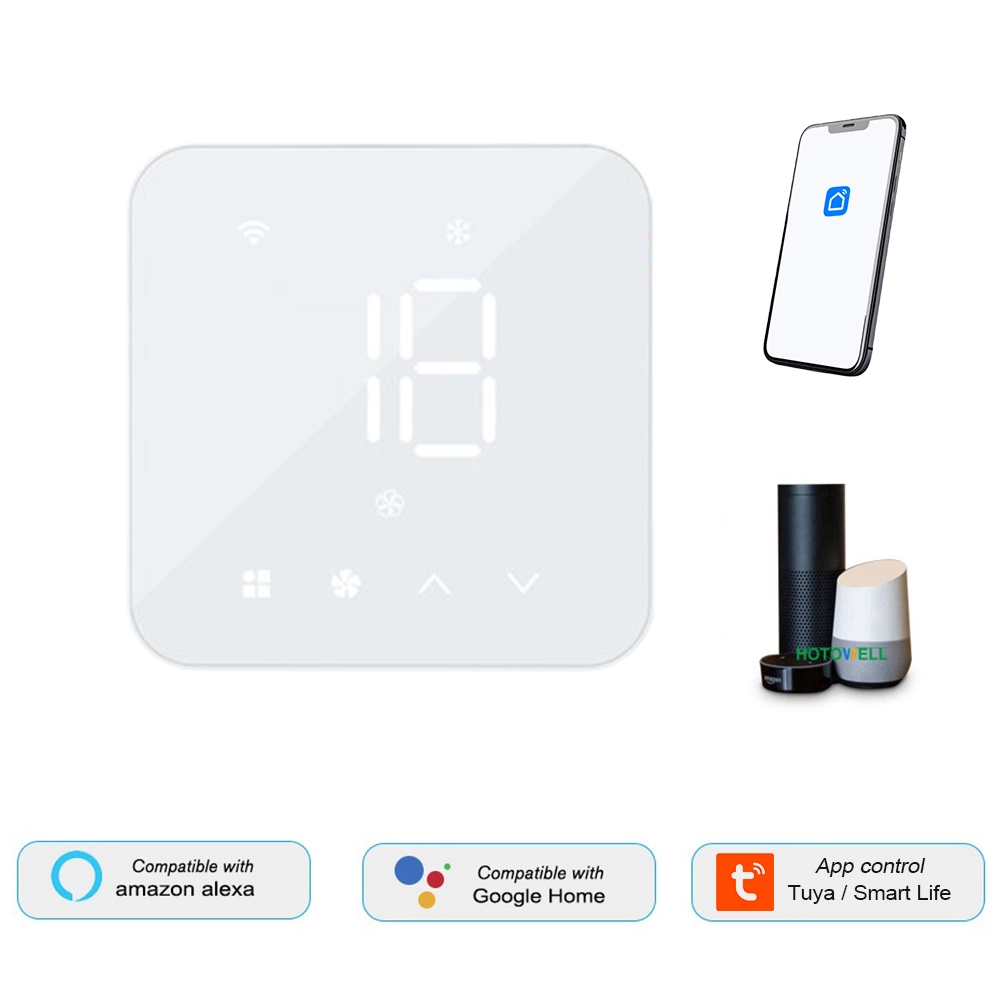

(06) Wi-Fi remote control
The thermostat supports app-based control through Wi-Fi connection. Users can adjust temperature and schedules remotely. This improves user convenience and supports energy-saving strategies.

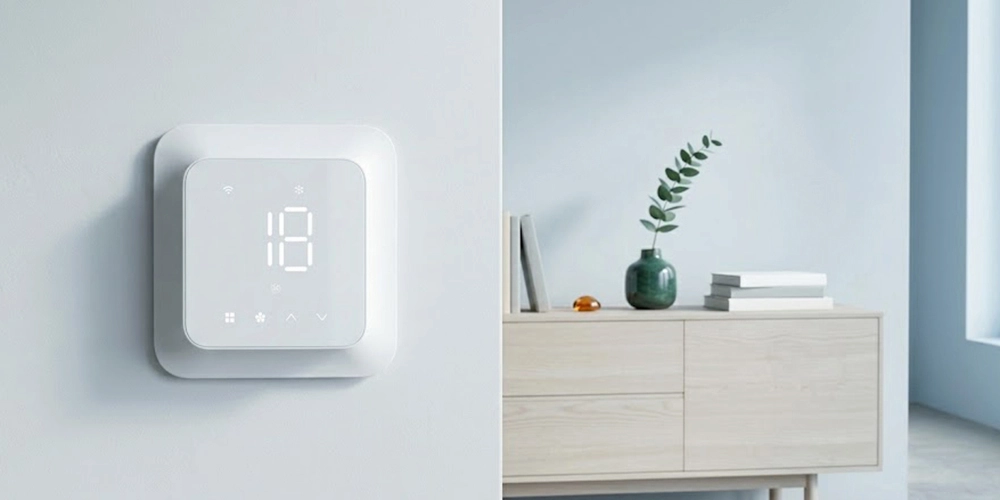

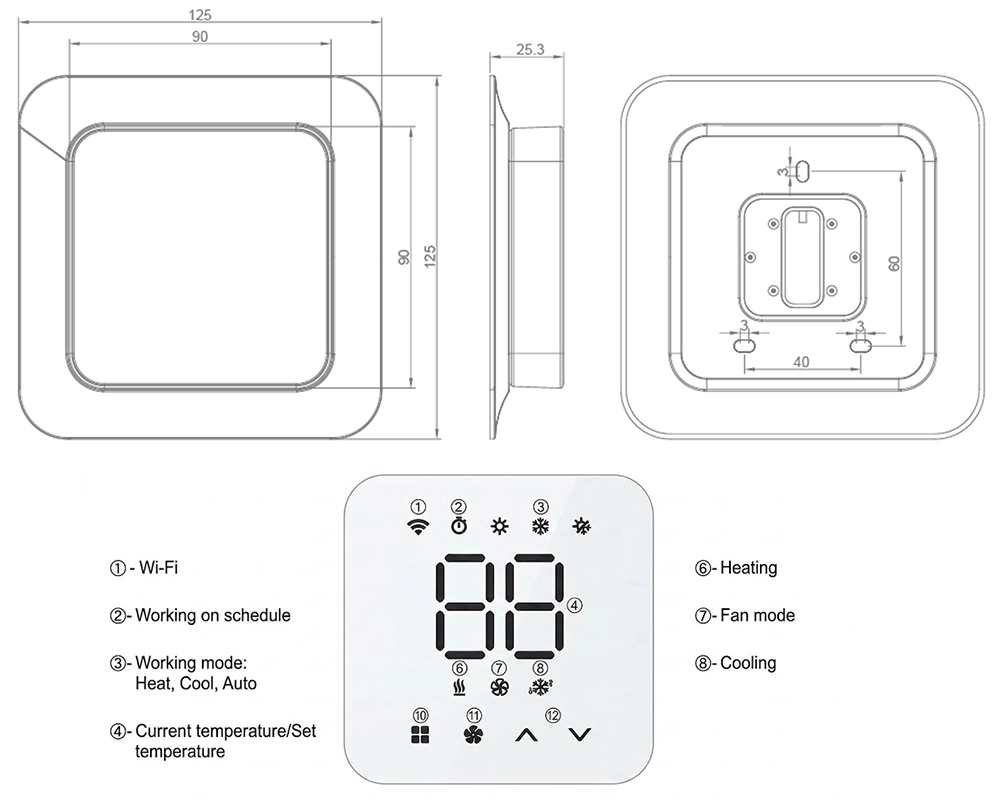

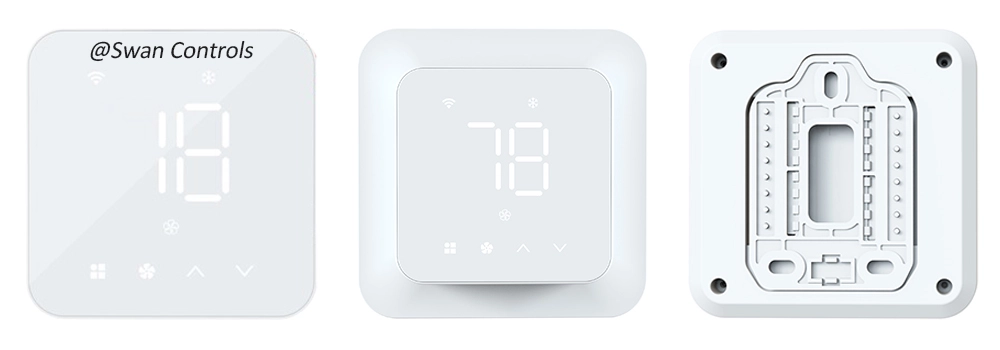

Product Design and Display
(This section shows the physical design and interface of this Heat Pump Thermostat, helping users understand daily operation and installation suitability in Multi-stage control environments.)
Technical Specifications
(This section lists the key parameters of this Multi-stage thermostat, including system compatibility and core setup requirements for Heat Pump Thermostat applications.)
| Parameter | Value |
|---|---|
| Power Supply | 24V |
| Compatible System | Conventional / Heat Pump / FCU |
| Display | LED |
| Temperature Unit | °C / °F |
| Installation | Surface-mounted |
| Control Type | Multi-stage |
| Fan Control | On/Off or multi-speed |
| Connectivity | Wi-Fi |
Compatible Systems
(This section outlines how this Heat Pump Thermostat connects with different HVAC systems, including Multi-stage output behaviour in conventional and fan coil applications.)
| Terminals | Conventional | Heat Pump | 2-Pipe Fan Coil | 4-Pipe Fan Coil |
|---|---|---|---|---|
| R | 24V~ Single Transformer – Heating or Cooling | |||
| Rc | 24V~ Dual Transformer – Cooling | |||
| Rh | 24V~ Dual Transformer – Heating | |||
| C | Common | |||
| G | Fan | |||
| Y | Stage-1 Cool | Stage-1 Compressor | Valve | Cool Valve |
| Y2 | Stage-2 Cool (2nd-speed Fan) | Stage-2 Compressor (2nd-speed Fan) | 2nd-speed Fan | 2nd-speed Fan |
| W/AUX | Stage-1 Heat | Stage-1 AUX Heat | AUX Heat | Heat Valve |
| W2 | Stage-2 Heat (3rd-speed Fan) | Stage-2 AUX Heat (3rd-speed Fan) | 3rd-speed Fan | 3rd-speed Fan |
| O/B | N/A | Reversing Valve | N/A | N/A |
| E | N/A | Emergency Heat | Emergency Heat | N/A |
| * | W3/AUX3 | |||
Project Fit & Customization
(This section explains where this Multi-stage controller fits, its limits, and how this Heat Pump Thermostat can be adjusted for different project needs.)
This model is not suitable for high-voltage HVAC systems. It also does not support direct BMS communication protocols. Projects requiring BACnet or Modbus integration may need a different controller.
Despite these limitations mentioned above, function upgrades can be discussed. Wi-Fi, staged control logic, or interface adjustments can be refined. We can review project needs and confirm what changes are feasible.
OEM customisation is also available for branding requirements. This includes logo printing, colour adjustments, and label changes. Packaging and user interface details can also be aligned with your market needs.
Certificates and Compliance
(This thermostat complies with European market requirements and is supported by certifications such as CE, RoHS, etc)
Exhibition Moments
(Our team regularly participates in international HVAC exhibitions such as Febrava in Brazil, The Big 5 in Dubai, and ISK-SODEX in Turkey, etc.)
Frequently Asked Questions
Q1: Can this thermostat work with both conventional and heat pump systems?
Yes, it supports both system types using standard 24V wiring. The Heat Pump Thermostat logic includes reversing valve and AUX heating control. This allows flexible use across different HVAC setups.
Q2: Does it support staged temperature control?
Yes, the unit supports Multi-stage control for both heating and cooling. This helps maintain more stable indoor temperatures. It also improves efficiency under partial load conditions.
Q3: Can it be used for fan coil units?
Yes, it supports 2-pipe and 4-pipe fan coil systems. It controls valves and fan operation based on room demand. This is common in hotel and apartment projects.
Q4: Does it support external sensors or BMS communication?
This model focuses on standalone control with built-in sensing. It does not include Modbus or BACnet communication. For BMS integration, other models are more suitable.
Q5: What is the minimum order and do you offer samples?
We support sample orders for testing before bulk purchase. Standard MOQ is around 300 units. Smaller quantities like 100 units can also be discussed.
Q6: How do I place an order and arrange shipping?
Please share your requirements and we will provide a PI. Payment methods include TT, PayPal, and Visa. Shipping terms such as EXW, FOB, or DAP are available.
Q7: How long does production take?
Samples without customisation can be ready within 7 days. Custom orders usually take 3 to 5 weeks. Bulk production around 300 units takes about one month.
Q8: What shipping methods are available?
Courier delivery like DHL or FedEx takes about 7 days. Air shipping is similar depending on location. Sea shipping usually takes around one month.
Need Help Choosing the Right Model?
If you are not sure which model fits your project, please feel free to get in touch with us. We can review your system and suggest a suitable option.
Related Thermostat Models
For other products, such as fan coil thermostats, please click here directly: Wi-Fi Thermostats | Modbus Thermostats | BACnet Thermostats
Final Note
The HTW-MT8600 Heat Pump Thermostat provides stable control for typical HVAC systems. Its Multi-stage capability helps balance comfort and energy use. For most standard projects, it offers a practical and flexible solution.
