Quick Summary
HTW-WKT25-3ANV3 is a WiFi Water Heating Thermostat for water and boiler heating systems. It controls heating output using relay switching and temperature sensing. The unit supports LED slide operation for direct adjustment. WiFi allows remote control through mobile application for flexible daily operation.
This page explains how the WiFi Water Heating Thermostat works in projects. It covers control logic, wiring method, and parameter setup. It also explains model configuration and customisation options. Typical questions and answers are included for quick reference.
Key Features
(This section explains the core control functions and their practical value.)
01 Slide-Based Control Interface
The WiFi Water Heating Thermostat uses slide up and down operation for temperature setting. This reduces button wear and improves control response. It allows quick adjustment and supports stable operation during daily use.
02 Stable Heating Output Control
The WiFi Water Heating Thermostat controls heating through relay switching based on temperature feedback. It reduces temperature fluctuation during operation. This helps maintain steady comfort and supports reliable system performance.
03 WiFi Remote Management
WiFi allows remote control through mobile application for temperature adjustment. Users can manage heating without visiting the room. This improves flexibility and supports central control in multi-room applications. The model HTW-WKT25-16A3 is the same series which can support electric heating system with WiFi function.

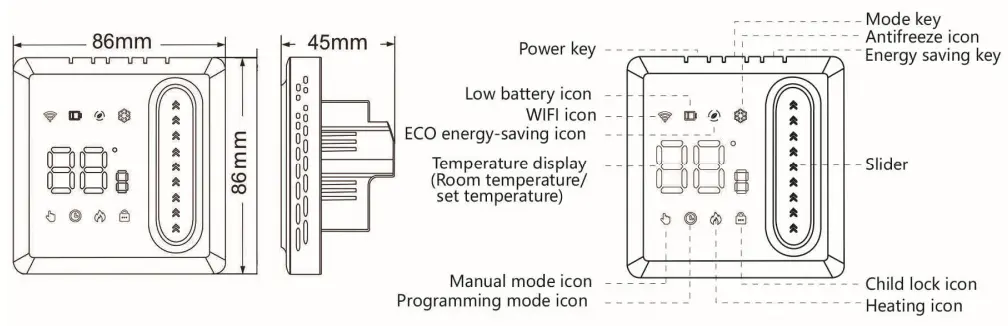

Product Design and Display
(This section shows the product’s dimensions and the interface layout.)
Technical Specifications
(This section lists the key parameters for reference and project confirmation.)
| Parameter | Value |
|---|---|
| Power Supply | 100~250Vac |
| Frequency | 50/60Hz |
| Accuracy | ±0.5°C |
| Sensor | NTC3950, 10K |
| Power Consumption | <1W |
| Temperature Range | 5~70°C |
| Product Size | 86×86×45 mm |
| Protection Class | IP20 |

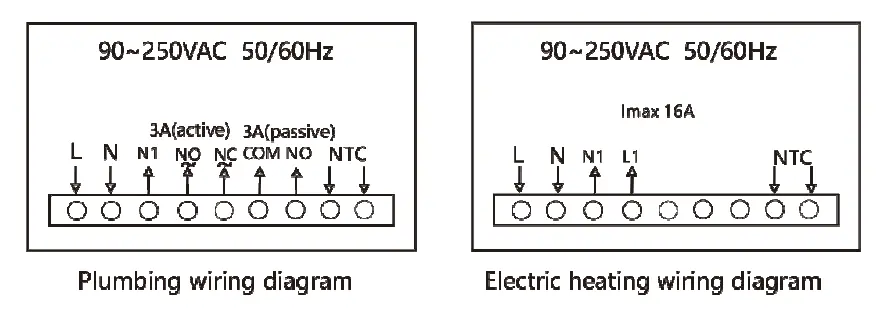

Wiring Diagram
(This section provides the wiring reference diagram for correct installation.)
Model Code Guide
(This section explains what configuration the model code refers to.)
| Heating series | xx stands for |
| 3A | Water Heating, with NC+NO+COM output terminals |
| 16A | Electric Underfloor Heating, with L+N line voltage output terminals + External Sensor |
| NV | Boiler Heating, with Non-Voltage Dry Contact |
| 3 | 3 = Wi-Fi |
| Example HTW-WKT25-xx: if xx = 3ANV3, it stands for water heating and boiler control with Wi-Fi function. Most sub-models are ready-made. Kindly contact us to confirm availability. | |
Project Fit & Customization
(This section explains where the product can be used, its limits, and OEM/ODM options.)
This WiFi Water Heating Thermostat is not suitable for electric floor heating systems. It does not support fan coil control. It is not designed for complex BMS protocols like Modbus. It is intended for water heating and boiler systems only.
Despite these limits mentioned above, ODM customisation can be discussed. Control logic or communication method may be adjusted. Interface behaviour or display style can also be adapted. Final solution depends on technical evaluation.
OEM services are available for branding and appearance changes. Logo printing, colour options, and label design can be supported. Packaging and interface adjustments may also be arranged for bulk projects.
Certificates and Compliance
Frequently Asked Questions
Q1. What system is this WiFi Water Heating Thermostat used for?
It is used for water heating and boiler systems, controlling heating output through relay switching based on temperature feedback.
Q2. How is the WiFi Water Heating Thermostat operated on the device?
It uses slide up and down operation for temperature adjustment, allowing quick and simple control during daily use without complex button interaction.
Q3. Can I control this WiFi Water Heating Thermostat remotely through mobile app?
Yes, WiFi allows remote control through mobile application, enabling users to adjust temperature and monitor system status without direct access.
Q4. What is the MOQ and can I order samples?
We support sample orders. Standard MOQ is 300 units, but smaller trial quantities such as 100 units can also be discussed.
Q5. How can I place an order?
Please contact us to confirm requirements. We will provide a proforma invoice. Payment supports TT, PayPal, Visa, and terms like EXW, FOB, or DAP.
Q6. How will the products be shipped?
Courier delivery is recommended and takes about 7 days. Air shipping also takes around 7 days, while sea freight usually takes over one month.
Related Thermostat Models
If you are comparing models or selecting alternatives, please contact us. We can help match suitable thermostats based on your project needs.
You could refer to below links:
Electric Underfloor Heating Thermostat
Water Underfloor Heating Thermostat
Final Note / Practical Takeaway:This WiFi Water Heating Thermostat provides stable control with remote access. It suits projects needing simple installation, reliable operation, and flexible daily heating management. 【More models：heating thermostat】]
