Quick Summary
The HTW-WF11-FC-4KN room thermostat is designed for 4-pipe fan coil systems. It controls a 3-speed fan and separate heating and cooling valves. The unit supports both heating and cooling modes with stable switching. It includes keycard input and Modbus communication for system-level control and monitoring.
This page explains how the room thermostat works in FCU control systems. It outlines control logic, parameter settings, and wiring structure. It also covers common application questions and project considerations. Basic customisation options are included for project matching and integration needs.
Key Functional Highlights
(This section introduces the main control functions and their engineering value in the specific HVAC system.)
(01) 3-speed fan control
The thermostat manages low, medium, and high fan speeds. This helps balance airflow with real-time room demand. It improves comfort while reducing unnecessary energy use.
(02) 4-pipe on/off valve control
Separate control of heating and cooling valves ensures clear system logic. This avoids conflicts between heating and cooling demands. It supports stable operation in mixed-use buildings.
If one is looking for the 2-pipe on/off valve control instead, one may refer to this model (please click → HTW-WF11-FC-2KN).

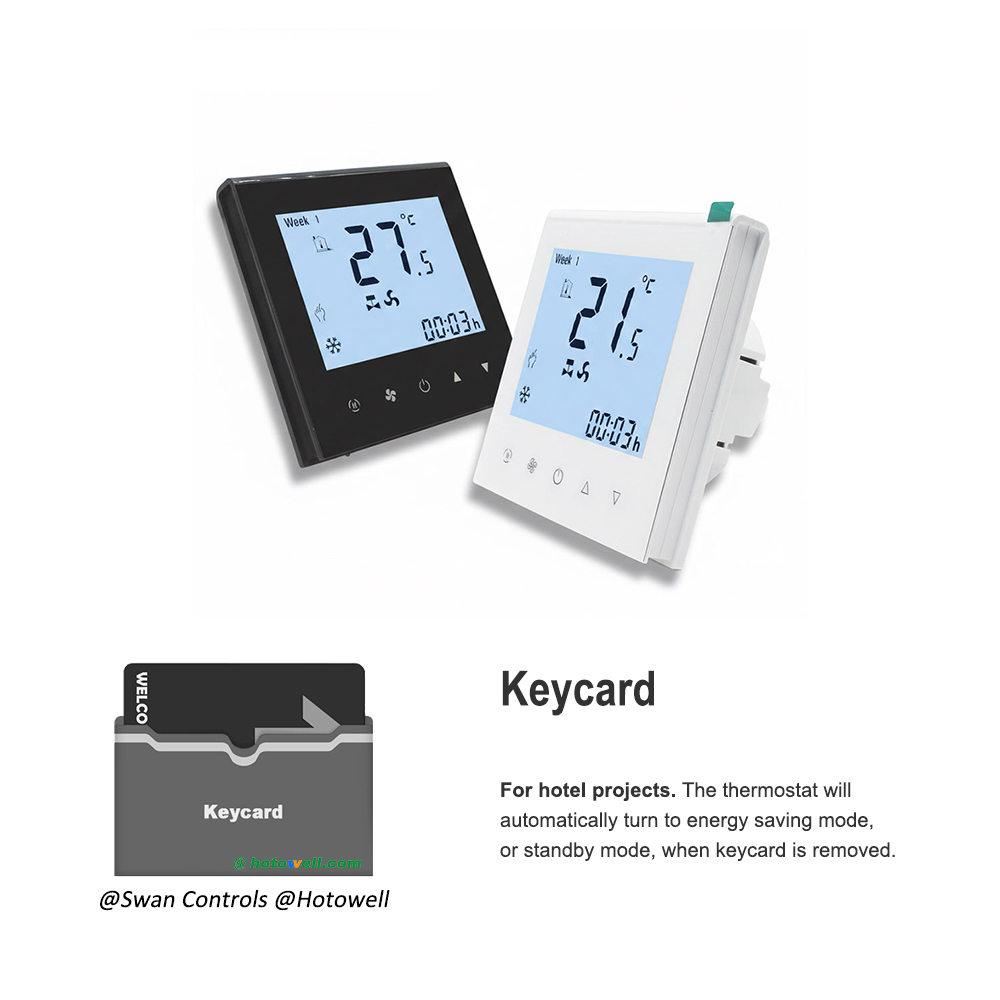

(03) Remote setback (Keycard)
The keycard function detects room occupancy status. When the card is removed, the system reduces output. This helps save energy and avoids unnecessary operation.

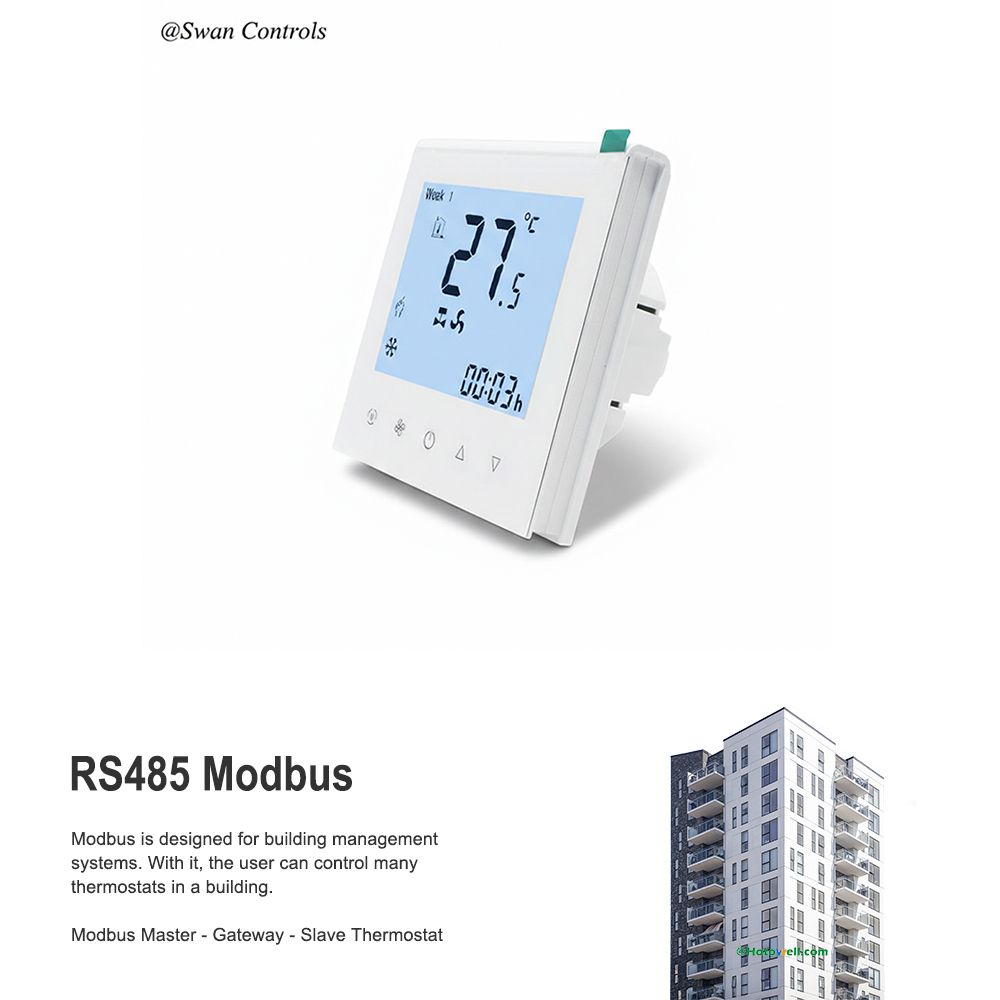

(04) RS485 Modbus communication
Modbus enables connection to a building management system. It allows central monitoring and control of multiple units. This improves maintenance efficiency and system visibility.
(05) Set-point limitation
The set-point limitation function defines minimum and maximum temperature ranges. This prevents users from selecting extreme settings during operation.

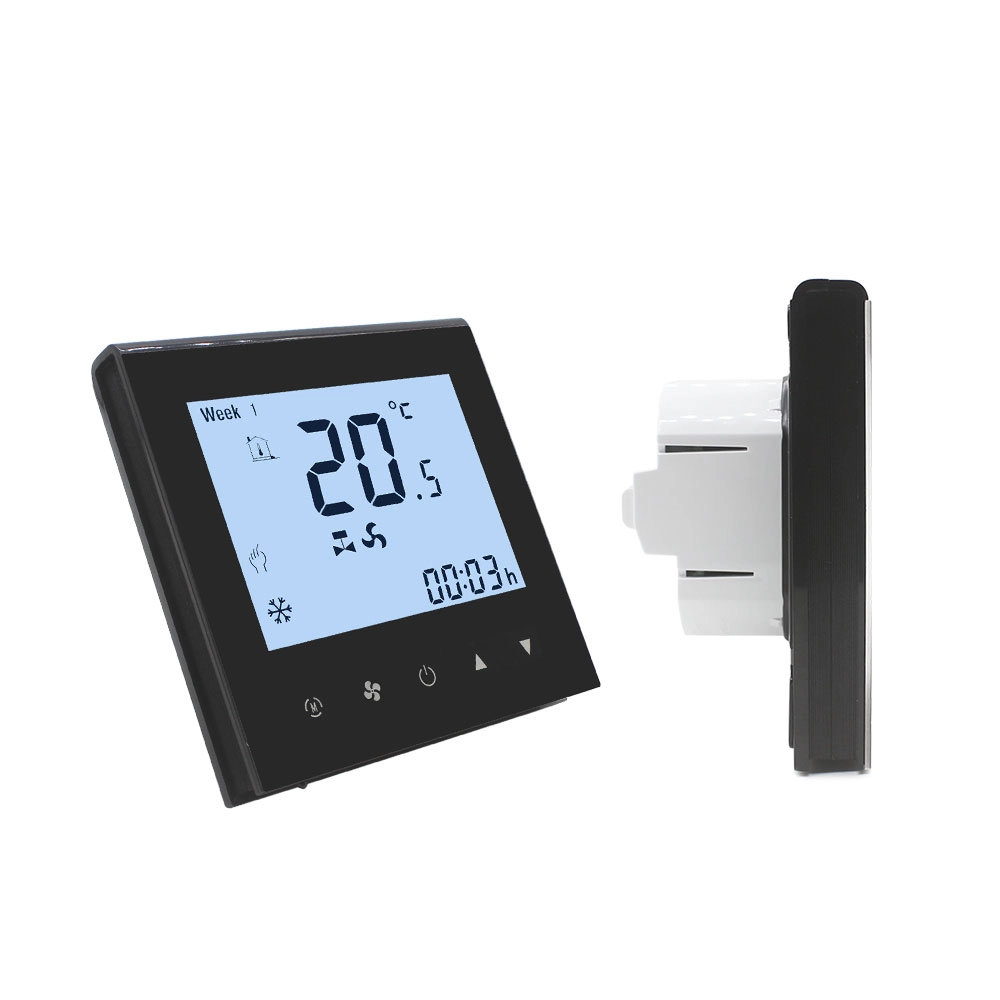

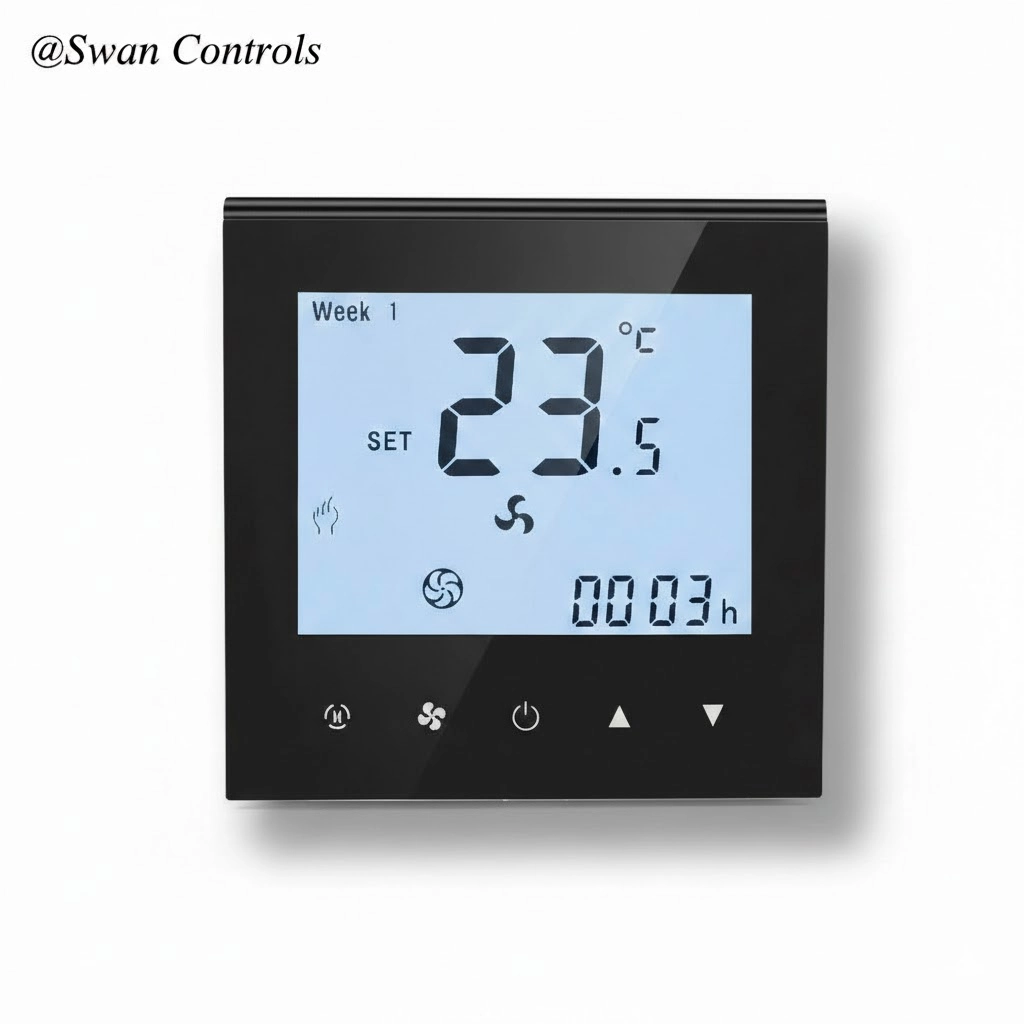

Product Design and Display

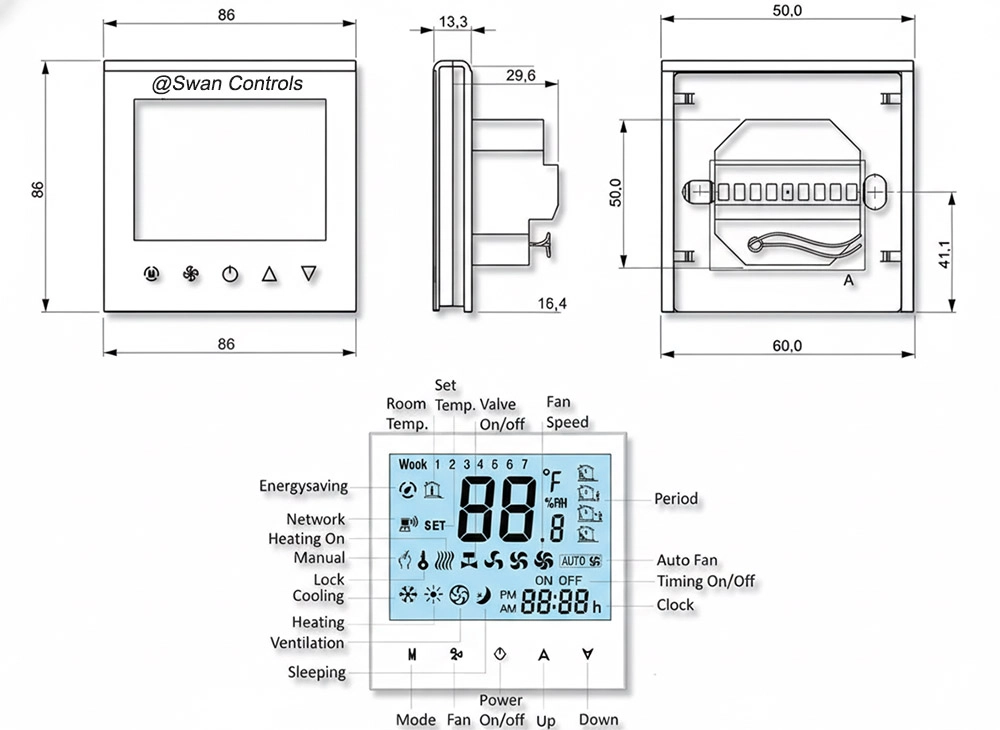

(This section shows the thermostat appearance, screen interface, or installation dimensions of this specific model.)
Technical Specifications
(This section lists the key technical parameters relevant to this thermostat model.)
| Parameter | Value |
|---|---|
| Power Supply | 95~240Vac, 50/60Hz |
| Current Load | Fan 5A; Valve Relay 5A |
| Built-in Sensor | NTC3950, 10K |
| Temperature Accuracy | ±0.5°C |
| Set-Point Range | 5~35°C |
| Warranty | 2 Year |
| Installation Box | EU round box or Standard 86×86mm Box |
Wiring Diagram

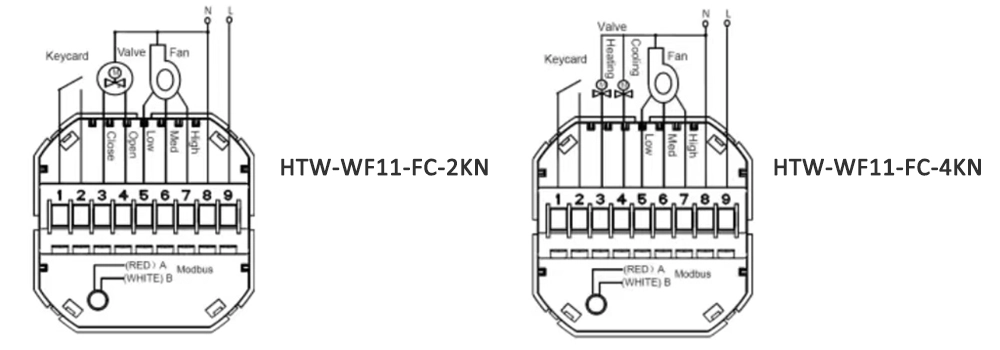

(This section provides the wiring diagram for this thermostat in the relevant HVAC control system.)
Model Code Guide
(This section explains what configuration the model code refers to.)
| Fan coil series | xx stands for |
| EC | EC fan |
| 2/4 | 2 for 2-pipe on/off; 4 for 4-pipe on/off system |
| M | Modulating valve control |
| W | Wi-Fi |
| N/B | N for Modbus; B for BACnet |
| K/E | K for Keycard; E for External sensor |
| 24 | Powered by 24V, or with 24V output for 0-10V valve |
| Example HTW-WF11-FC-xx | if xx = 2EN, it stands for a 3-speed fan, 2-pipe system with on/off valve control, external sensor function, and Modbus communication. Most sub-models are ready-made. Kindly contact us to confirm availability. |
Project Fit & Customization
(This section describes project suitability, system limitations, and available customization options.)
This room thermostat is not suitable for EC fan systems with 0–10V control. It does not support BACnet or wireless communication. It is not designed for underfloor heating or boiler-only systems.
Despite these limitations mentioned above, function upgrades can be discussed. Wi-Fi or BACnet communication may be added in customised versions. External sensor or control logic changes can also be evaluated.
OEM customisation is available for project branding needs. This includes logo printing, housing colour, and packaging labels. Interface layout adjustments may also be discussed for specific markets.
