Quick Summary

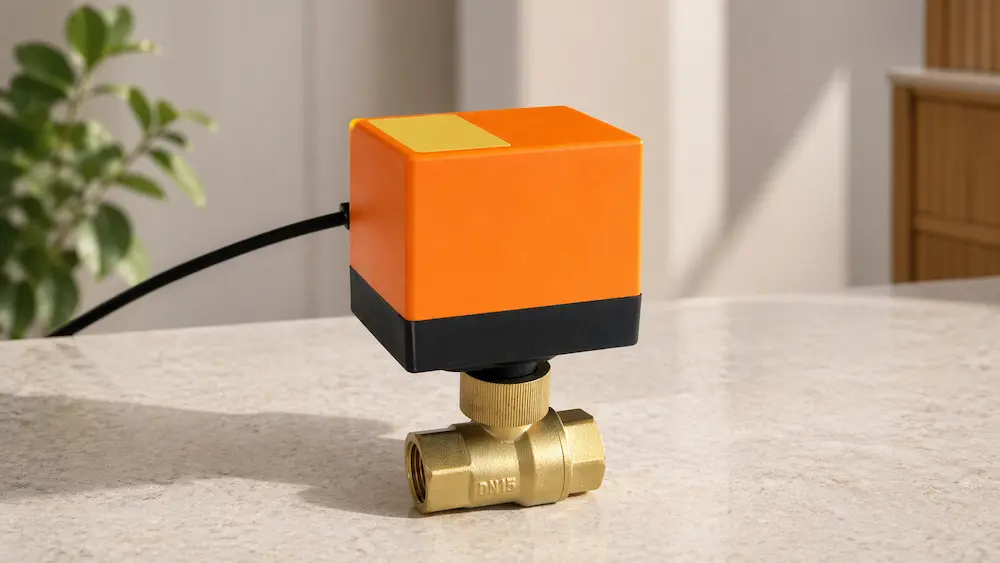

The HTW-EG motorized ball valve combines a brass valve body with an electric actuator for hydronic HVAC systems. It is designed for on/off or 3-point control of water flow in chilled and hot water systems such as FCU, AHU, and zone control. This HVAC motorized ball valve ensures stable operation and reliable shut-off performance under standard HVAC conditions.
This page helps you quickly understand how this motorized ball valve fits your project. It explains valve structure, actuator matching, control logic, and key selection points, while also supporting OEM and project-based customization.
Key Functional Highlights
(This section introduces the main control functions of the motorized ball valve and actuator assembly, and their engineering value in HVAC water systems.)
(01) 220Vac Power Supply
This motorized ball valve supports standard 220Vac power supply, widely used in HVAC projects. It simplifies wiring and avoids extra transformers. This improves installation efficiency and ensures stable actuator operation.

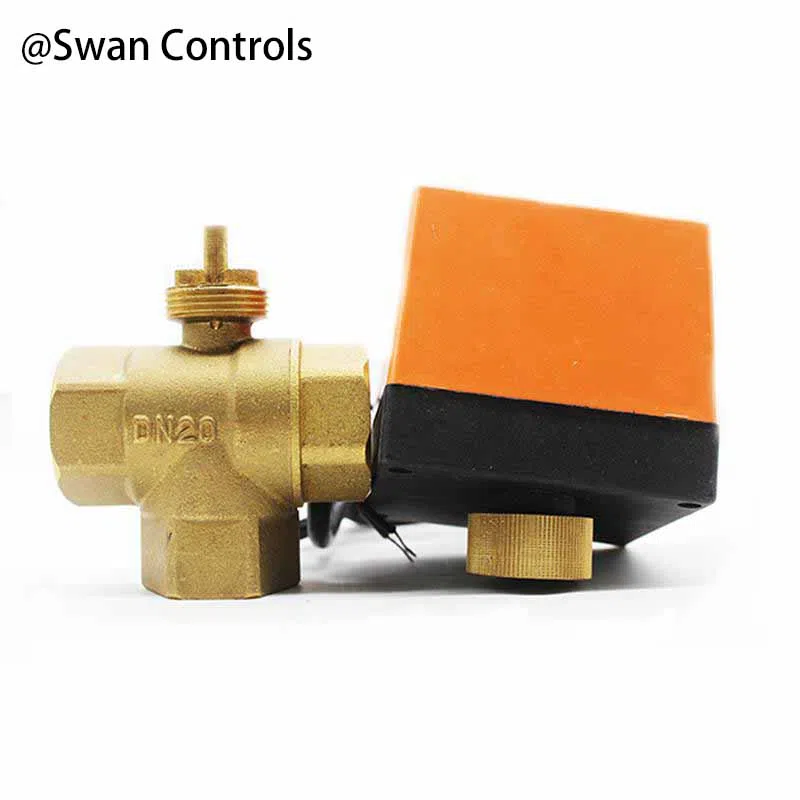

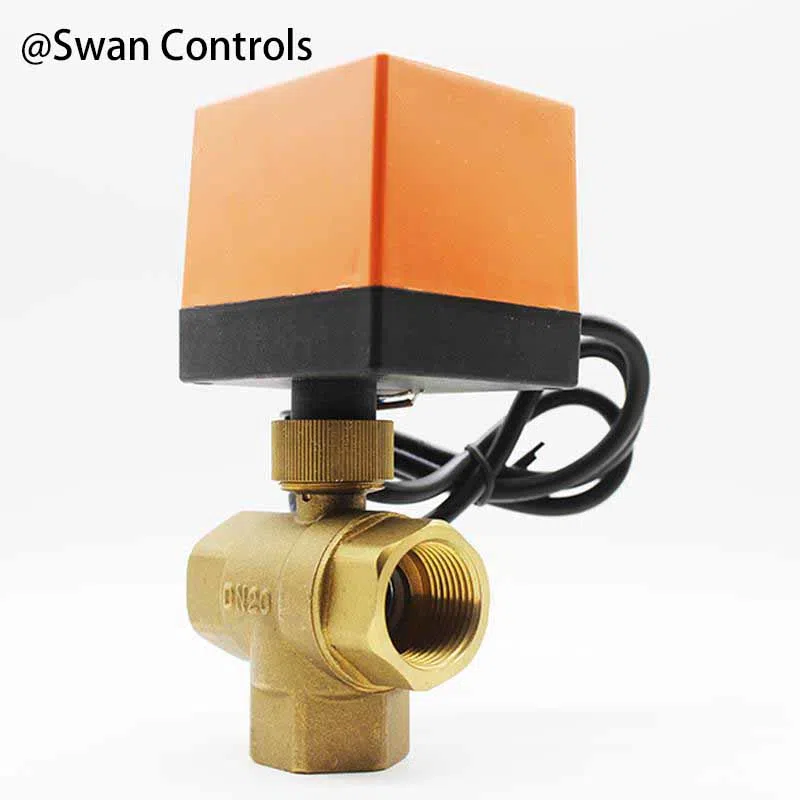

(02) 2-Way and 3-Way Options
This motorized ball valve is available in 2-way and 3-way versions. 2-way is suitable for shut-off control, while 3-way supports mixing or diverting flow. This allows flexible system design for FCU, AHU, and zone control applications.

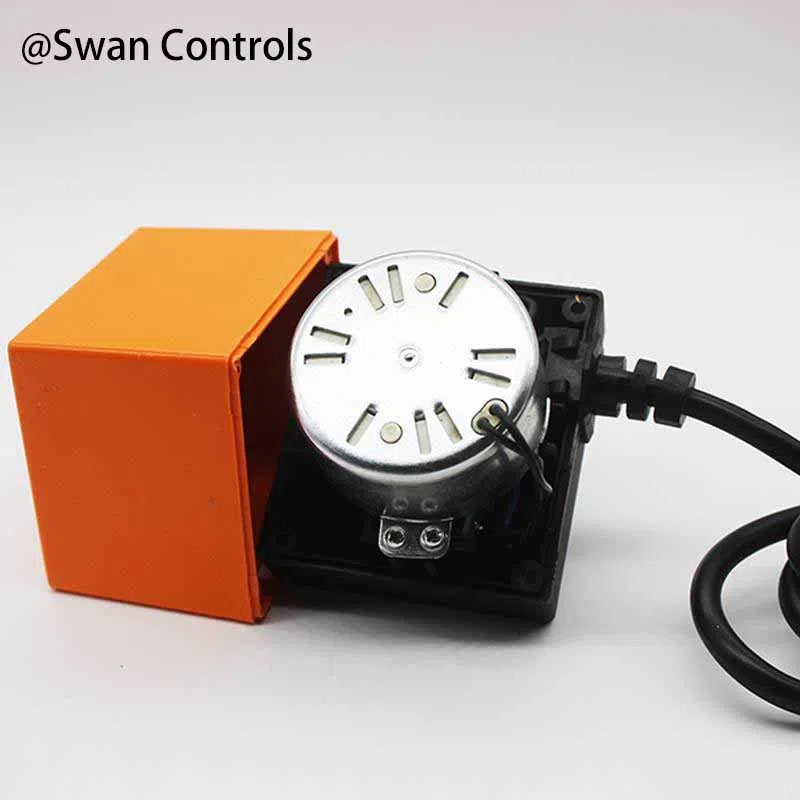

(03) Reversible Synchronous Motor
The actuator uses a reversible synchronous motor. This ensures stable opening and closing action. It helps improve control accuracy and reduces failure risk during repeated operation.
(04) Media Temperature Range
This motorized ball valve supports 2°C to 90°C media temperature. It is suitable for chilled and hot water systems. This makes it reliable across different HVAC applications.
(05) BSP Connection
The valve uses BSP thread connection. This ensures compatibility with common piping systems. It reduces installation errors and improves sealing reliability.

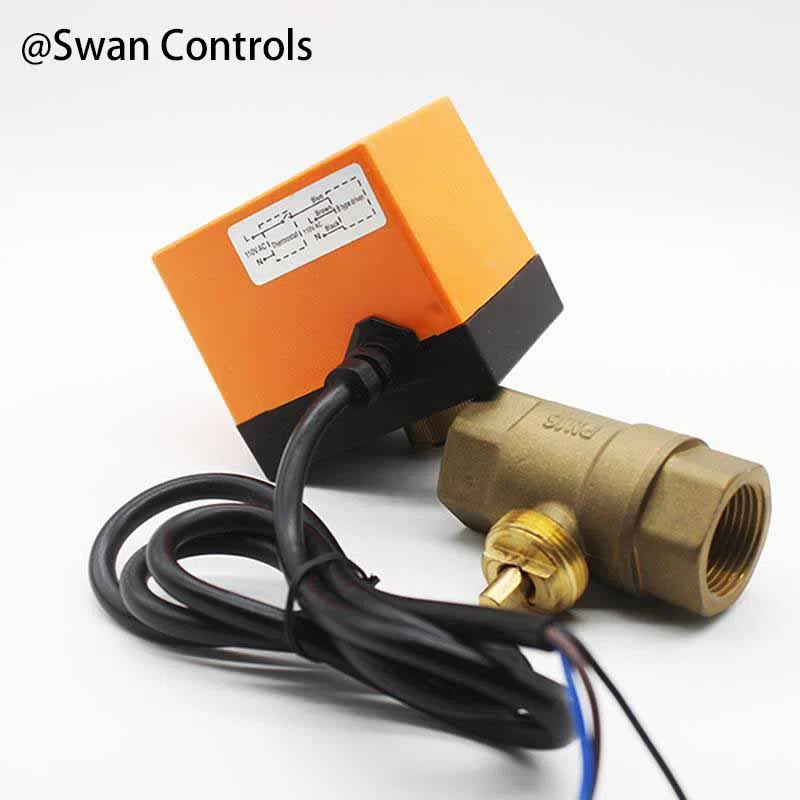

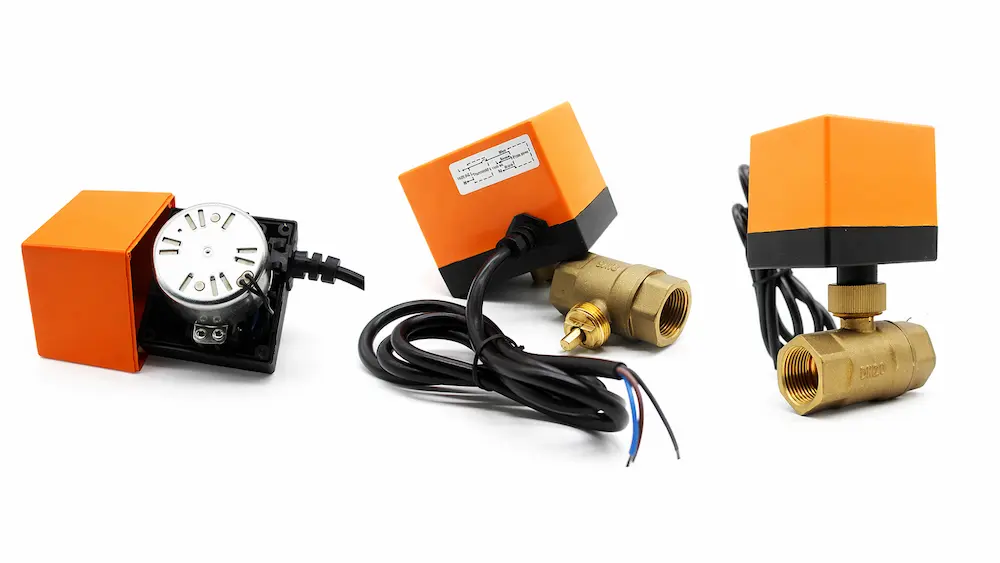

Product Design and Display
(This section shows the valve body, actuator appearance, connection form, and installation structure of this motorized ball valve model.)
Model Code (Sizes, etc)
| Model Code | Size |
|---|---|
| HTW-EG-215/315 | 215=2 way + DN15(1/2 inch); 315=3 way + DN15(1/2 inch) |
| HTW-EG-220/320 | 220=2 way + DN20(3/4 inch); 320=3 way + DN20(3/4 inch) |
| HTW-EG-225/325 | 225=2 way + DN25(1 inch); 325=3 way + DN25(1 inch) |
| HTW-EG-232/332 | 232=2 way + DN32(1.1/4 inch); 332=3 way + DN32(1.1/4 inch) |
| HTW-EG-220 refers to a 2-way DN20 (3/4 inch) valve with a standard 220Vac power supply, BSP thread, and SPDT actuator. To confirm the sub-model that suits you, please feel free to get in touch with us directly. | |
Technical Specifications
(This section lists the key technical parameters relevant to this motorized ball valve model.)
| Parameter | Value |
|---|---|
| Valve Type | Motorized Ball Valve |

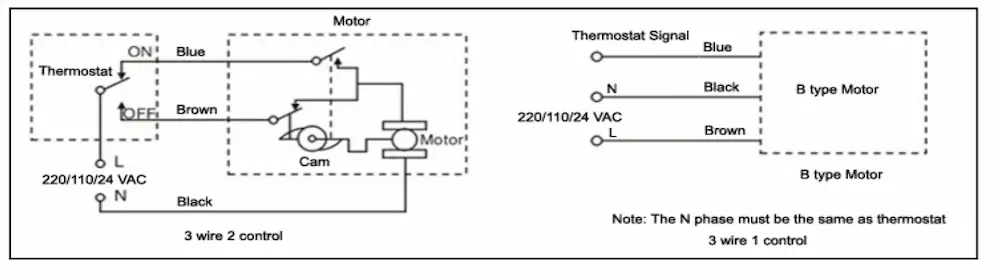

| Control Signal | On/Off or 3-point |
| Power Supply | 220VAC (Optional: 24VAC / 110VAC) |
| Connection Type | G / BSP |
| Output Torque | 3.5 N.m |
| Power Consumption | <5W |
| Pressure Rating | PN20 |
| Ambient Temperature | -5°C ~ 60°C |

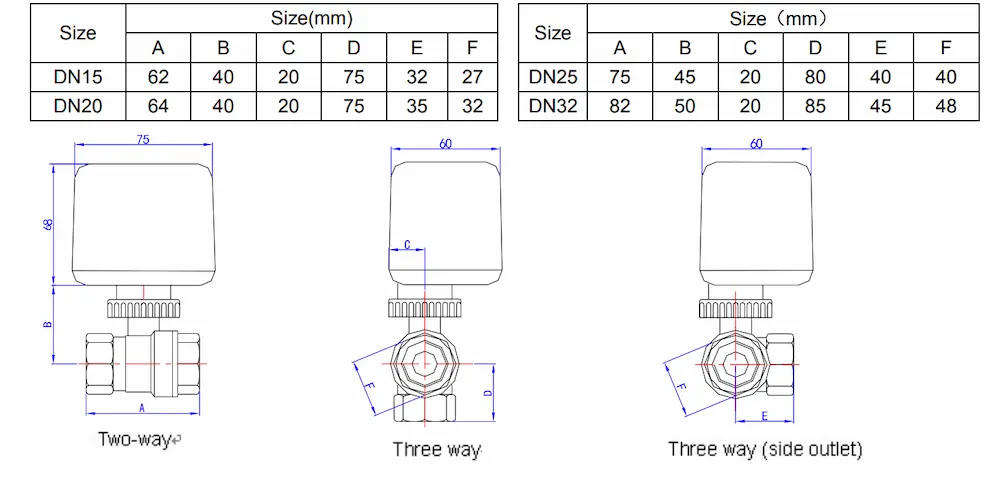

Dimensions and Flow Direction
(This section provides the size reference and flow direction guidance for the motorized ball valve in HVAC systems.)
Project Fit & Customization
(This section describes project suitability, system limitations, actuator-valve matching conditions, and available OEM options for this motorized ball valve.)
This motorized ball valve is suitable for standard chilled water and hot water HVAC systems, including FCU, AHU, and zone control projects. It is not suitable for steam systems or corrosive media. It should not be used beyond PN20 pressure limits.
For standard HVAC water control, this valve is usually a practical choice when the project needs reliable shut-off, simple actuator control, and stable long-term operation. For steam, corrosive media, high-temperature industrial fluid, or unsupported control signals, another valve type should be selected.
Despite these limitations, power supply, actuator type, and connection standard can be adjusted. These can be evaluated based on project needs and order quantity. We are happy to support selection.
OEM is supported. Logo printing, label customisation, and packaging adjustments are available. Appearance identification can also be discussed based on order quantity.
Certificates and Compliance
(This valve product is designed for HVAC applications and can comply with CE-related requirements for the European market.)
Exhibition Moments
(Our team regularly participates in international HVAC exhibitions such as Febrava in Brazil, The Big 5 in Dubai, and ISK-SODEX in Turkey, etc.)
Frequently Asked Questions
Q1: When should I choose a motorized ball valve?
A motorized ball valve is suitable when the project needs reliable shut-off, low leakage risk, and simple on/off or 3-point water control in FCU, AHU, or zone HVAC systems.
Q2: What is the difference between 2-way and 3-way?
2-way valves control flow on/off. 3-way valves allow mixing or diverting flow. The selection depends on system design.
Q3: Can this valve support different voltages?
Yes, 220Vac is standard, and 24Vac or 110Vac options are available. Please confirm power supply before ordering.
Q4: What media can this valve handle?
This motorized ball valve is designed for chilled and hot water. It is not suitable for steam or aggressive fluids.
Q5: What is the MOQ and do you support samples?
We support sample orders. The typical MOQ is 100 units, but it can be discussed based on project needs.
Q6: How can we place an order?
Please share your requirements with us. We will provide a PI for confirmation. Payment options include TT, PayPal, and Visa.
Q7: What is the lead time?
Standard samples ship within 7 days. Custom orders take about 3–5 weeks. A batch of 100 units usually needs around one month.
Q8: What shipping methods are available?
Courier delivery takes about 7 days. Air freight is similar. Sea shipping takes about one month or longer depending on destination.
Need Help Choosing the Right Model?
If you are not sure which motorized ball valve suits your project, please feel free to get in touch with us. We are happy to support you.
Related Valve Models
To find out other valves, please click here directly:
Motorized Valves |
Ball Valves |
If one is looking for the thermostat also, please click here:
FCU Wi-Fi Thermostat |
FCU Modbus Thermostat |
Heating Thermostat
Final Note: In hydronic HVAC systems, stable water control is important for zoning and temperature balance. The HTW-EG motorized ball valve provides reliable shut-off through actuator control. It helps improve system stability, reduce maintenance issues, and support long-term operation.
