Quick Summary
HTW-WF10-NV3 is a WiFi Water Gas Boiler Heating Thermostat for water and gas boiler systems. It uses 3A non-voltage dry contact output for control. The unit operates on 95–240Vac power supply. WiFi enables remote control through mobile application for flexible operation.
This page explains how the WiFi Water Gas Boiler Heating Thermostat works in projects. It covers control logic, wiring method, and parameter setup. It also explains model configuration and customisation options. Typical questions and answers are included for quick reference.
Key Features
(This section explains the core control functions and their practical value.)
01 WiFi Remote Control
The WiFi Water Gas Boiler Heating Thermostat supports remote control through mobile application. Users can adjust temperature settings without being on site. This improves flexibility and helps manage heating systems in daily operation. We have another standalone model HTW-WF10-NV1.
02 Dry Contact Boiler Control
The thermostat uses non-voltage dry contact output to control boilers safely. This matches common water and gas boiler systems. It ensures reliable switching and stable operation in heating projects.
03 Stable Temperature Control
The internal sensor monitors room temperature continuously. The system adjusts heating output based on setpoint. This helps maintain consistent comfort and reduces temperature fluctuation in daily use.

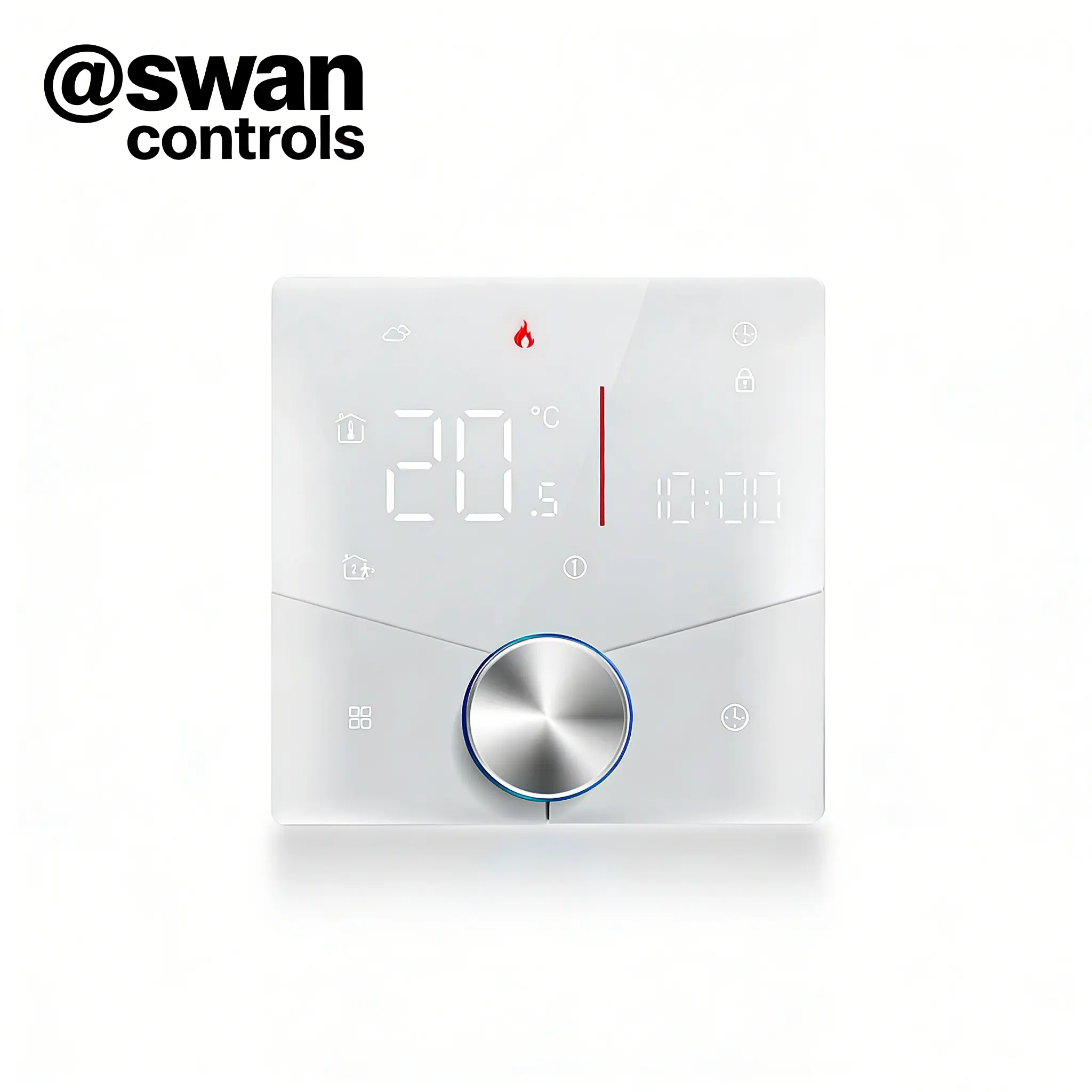

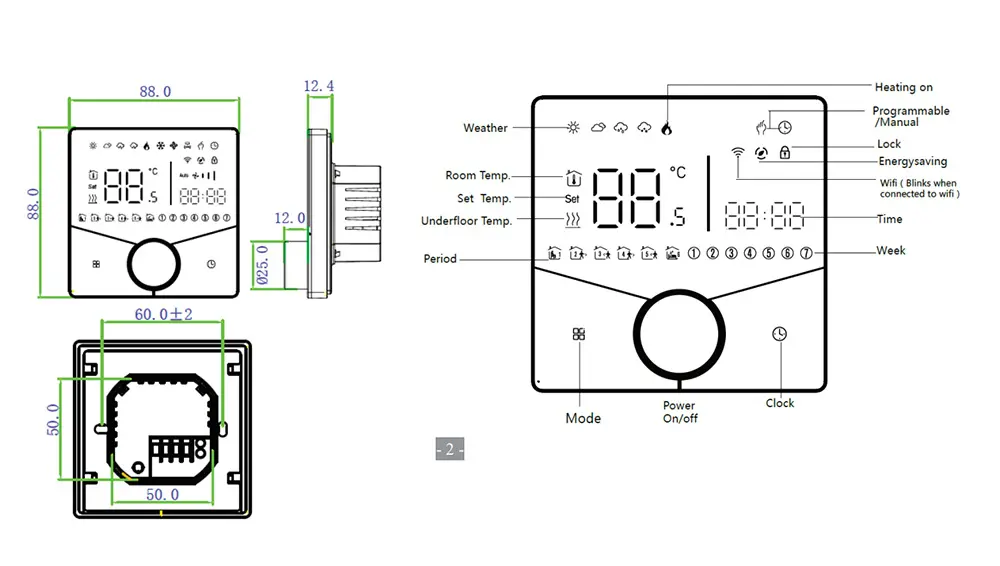

Product Design and Display
(This section shows the product’s dimensions and the interface layout.)
Technical Specifications
(This section lists the key parameters for reference and project confirmation.)
| Parameter | Value |
|---|---|
| Power Supply | 95~240Vac |
| Frequency | 50/60Hz |
| Accuracy | ±0.5°C |
| Sensor | NTC3950, 10K |
| Power Consumption | <1W |
| Temperature Range | 5~70°C |
| Product Size | 86×86×45 mm |
| Protection Class | IP20 |

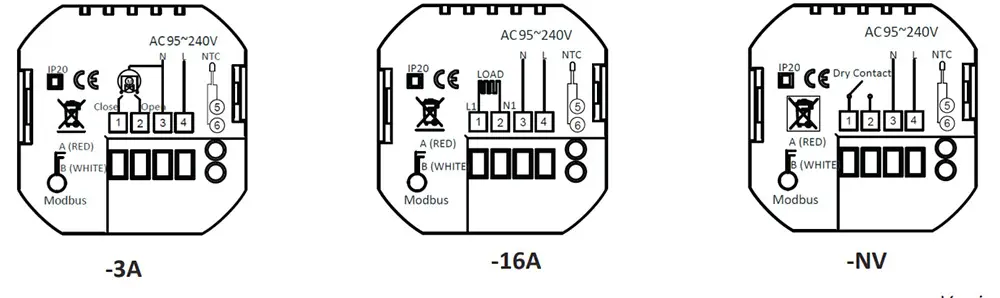

Wiring Diagram
(This section provides the wiring reference diagram for correct installation.)
Model Code Guide
(This section explains what configuration the model code refers to.)
| Heating series | xx stands for |
| 3A | Water Heating, with NC+NO+COM output terminals |
| 16A | Electric Underfloor Heating, with L+N line voltage output terminals + External Sensor |
| NV | Boiler Heating, with Non-Voltage Dry Contact |
| 3 | 3 = Wi-Fi |
| Example HTW-WF10-xx: if xx = NV3, it stands for boiler heating thermostat with WiFi function. Most sub-models are ready-made. Kindly contact us to confirm availability. | |
Project Fit & Customization
(This section explains where the product can be used, its limits, and OEM/ODM options.)
This WiFi Water Gas Boiler Heating Thermostat is not suitable for electric floor heating systems. It does not support water valve control or fan coil systems. It cannot be used for complex BMS integration. It is designed for simple boiler control with WiFi access only.
Despite these limits mentioned above, ODM customisation can be discussed. Communication protocol or control logic may be adjusted. Interface behaviour or sensing options can be modified. Final solution depends on technical review and project needs.
OEM services are available for branding and product appearance. Logo printing, colour changes, and label design can be supported. Packaging and interface layout can also be customised for project delivery.
Certificates and Compliance
Frequently Asked Questions
Q1. What system is this WiFi Water Gas Boiler Heating Thermostat used for?
It is designed for water and gas boiler systems and controls heating output through non-voltage dry contact switching with WiFi remote access.
Q2. Can I control the thermostat remotely?
Yes, the WiFi Water Gas Boiler Heating Thermostat supports mobile app control, allowing users to adjust temperature settings remotely from anywhere with internet access.
Q3. What type of output does this model use?
It uses one pair of non-voltage dry contact terminals, suitable for controlling most water and gas boiler systems safely and reliably.
Q4. What is the MOQ and can I order samples?
We support sample orders. Standard MOQ is 300 units, but smaller quantities can also be discussed based on project needs.
Q5. How can I place an order?
Please contact us to confirm requirements. We will provide a proforma invoice. Payment supports TT, PayPal, Visa, and EXW, FOB, DAP terms.
Q6. How will the products be shipped?
Courier delivery is recommended and takes about 7 days. Air shipping also takes around 7 days, while sea freight usually takes over one month.
Related Thermostat Models
If you are selecting or comparing models, please contact us. We can help recommend suitable thermostats based on your heating system and project needs. You also can refer to below links:
Electric Underfloor Heating Thermostat
Water Underfloor Heating Thermostat
This WiFi Water Gas Boiler Heating Thermostat is suitable for boiler control projects. It offers remote access and stable switching control. It helps improve operation flexibility and system reliability. 【More models: heating thermostat】
