Quick Summary
The HTW-WF07RP-16A-W WiFi Electric Heating Thermostat is designed for electric floor heating systems. It controls heating output using relay switching and temperature sensing. It supports WiFi remote control and external sensor input. The control logic helps maintain stable room temperature and safe floor heating operation.
This page explains how this WiFi Electric Heating Thermostat works in real use. It covers wiring reference, key parameters, and control behaviour. It also includes typical project questions and answers. Customisation options and system matching guidance are also briefly explained.
Key Features
(This section explains the core control functions and their practical value.)
01 Intelligent temperature control
This WiFi Electric Heating Thermostat uses internal and external sensors for stable control. It helps keep room temperature within the set range. This improves comfort and reduces unnecessary heating cycles. Please refer to this link if you need a thermostat for water heating or boiler heating thermostat: HTW-WF07RP-3ANV-W.
02 External sensor protection
The external sensor monitors floor temperature during operation. It helps prevent overheating and protects floor materials. This is important for wood or sensitive surface finishes in heating projects.
03 WiFi remote operation
The thermostat connects to mobile applications through WiFi. Users can adjust settings without being on site. This helps improve control flexibility in residential and light commercial projects.
04 Simple touch operation design
The passive touch buttons provide a clear and stable user interface. The LED display shows working status and temperature clearly. This makes daily operation easy and reduces user confusion.

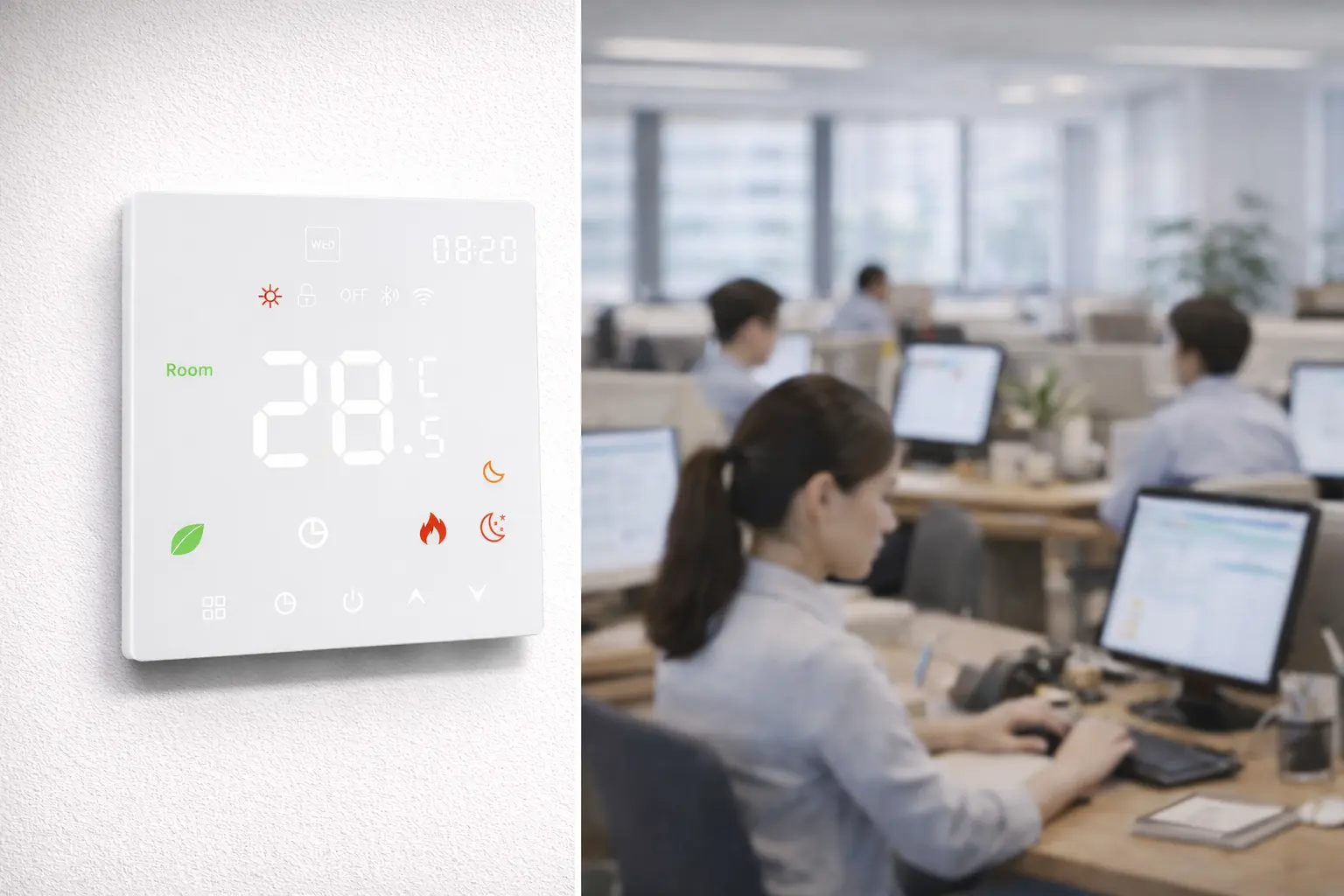

Product Design and Display
(This section shows the product’s dimensions and the interface layout.)
Technical Specifications
(This section lists the key parameters for reference and project confirmation.)
| Parameter | Value |
|---|---|
| Power Supply | 100~250Vac |
| Frequency | 50/60Hz |
| Accuracy | ±0.5°C or ±1°F |
| Sensor | NTC3950, 10K |
| Power Consumption | <1W |
| Temperature Range | 5~70°C |
| Product Size | 86×86×45 mm |
| Protection Class | IP20 |

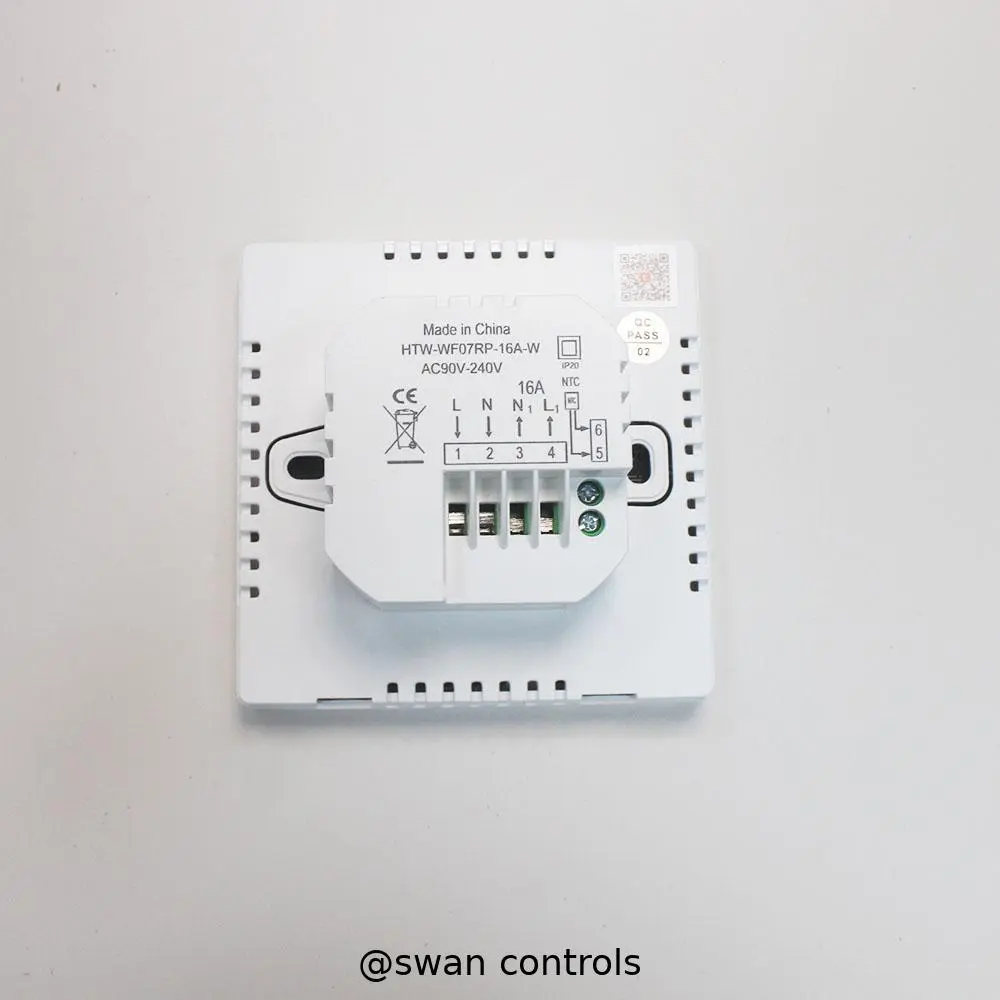

Wiring Diagram
(This section provides the wiring reference diagram for correct installation.)
Model Code Guide
(This section explains what configuration the model code refers to.)
| Heating series | xx stands for |
|---|---|
| 3A | Water Heating, with NC+NO+COM output terminals |
| 16A | Electric Underfloor Heating, with L+N line voltage output terminals + External Sensor |
| NV | Boiler Heating, with Non-Voltage Dry Contact |
| 1/3 | 1 = Standalone, 3 = Wi-Fi |
| Example HTW-WF11-xx: if xx = 16A3, it stands for electric floor heating with external sensor support and Wi-Fi function. Most sub-models are ready-made. Kindly contact us to confirm availability. | |
Project Fit & Customization
(This section explains where the product can be used, its limits, and OEM/ODM options.)
This WiFi Electric Heating Thermostat is not suitable for systems requiring BMS integration. It does not support Modbus or BACnet communication. It is also not designed for water valve control systems. High current loads beyond rated capacity should be avoided.
Despite these limits mentioned above, ODM customisation can be discussed. Communication protocols or control logic may be adjusted for specific projects. Hardware changes may also be considered after evaluation. All changes depend on project requirements and feasibility.
OEM customisation is supported for branding and appearance. This includes logo printing, colour changes, and packaging design. Label adjustments and minor interface changes are also available. These options help match different market needs.
Certificates and Compliance
Frequently Asked Questions
Q1. Can this thermostat be used for electric floor heating systems?
Yes, it is designed for electric floor heating with relay control and external sensor support for accurate temperature management.
Q2. Does this WiFi Electric Heating Thermostat support remote control?
Yes, it supports WiFi connection and mobile app control, allowing users to adjust temperature and settings remotely.
Q3. Is the external sensor necessary for operation?
The thermostat can work with internal sensing, but external sensor improves safety and helps prevent overheating in floor heating systems.
Q4. What is the minimum order quantity and do you support samples?
We support sample orders. Standard MOQ is 300 units, but smaller trial quantities can be discussed based on project needs.
Q5. How can we place an order?
Please contact us to confirm requirements. We will provide a proforma invoice. Payment supports TT, PayPal, Visa, and terms like EXW, FOB, or DAP.
Q6. How will the products be shipped?
Express delivery is recommended and takes about 7 days. Air freight is similar. Sea shipping takes over one month depending on destination.
Related Thermostat Models
For projects requiring water or boiler control, other models in this series may be more suitable. Please contact us for application advice and model selection support. You can refer to below links:
Electric Underfloor Heating Thermostat
Water Underfloor Heating Thermostat
Final Note / Practical Takeaway:This WiFi Electric Heating Thermostat is designed for stable electric heating control in indoor projects. It supports safe temperature management with external sensor protection. It helps improve comfort and control flexibility in daily heating use. 【More models: heating thermostat】
