Quick Summary
HTW-WF06RP-16A-W is an Electric Heating Thermostat designed for electric floor heating systems. It uses 16A relay output for direct load control. The unit includes an external sensor for floor temperature protection. It operates on 100–250Vac and supports WiFi application for remote control.
This page explains how the Electric Heating Thermostat works in real projects. It covers control logic, wiring setup, and key parameters. It also explains model options and customisation possibilities. Practical questions and answers are included to support system selection and installation.
Key Features
(This section explains the core control functions and their practical value.)
01 Direct Load Control for Electric Heating
This Electric Heating Thermostat supports direct control of electric heating loads up to 16A. It removes the need for external relays. This helps simplify wiring and improves system stability in residential heating applications.
02 External Sensor for Floor Safety Control
The thermostat includes a 3m external sensor to monitor floor temperature. It helps limit overheating and protects floor materials. This improves long-term safety in electric heating projects. If you need this thermostat designs for water heating and boiler heating system, please refer to this link: HTW-WF06RP-3ANV-W.
03 WiFi Control with LED Display Interface
The Electric Heating Thermostat supports WiFi application for remote control and monitoring. Users can adjust settings without entering the room. The LED display and button interface ensure clear feedback and simple operation.

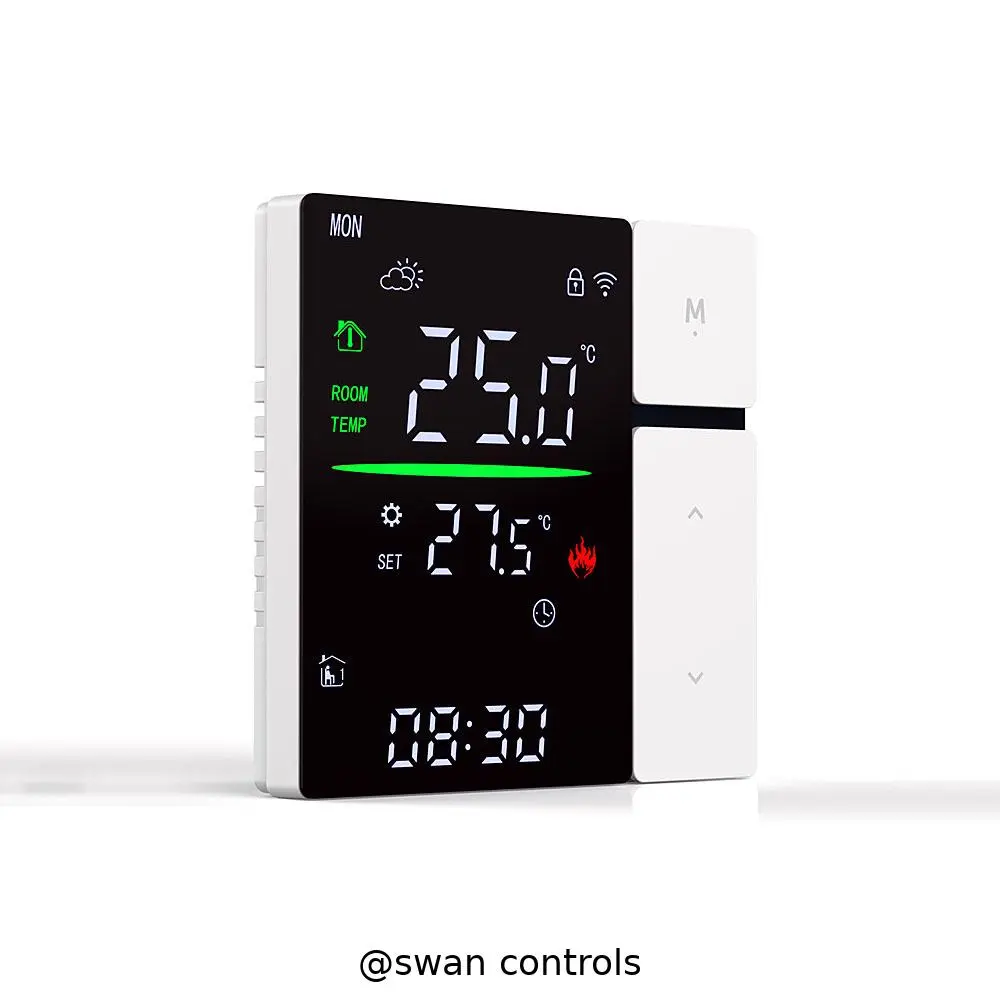

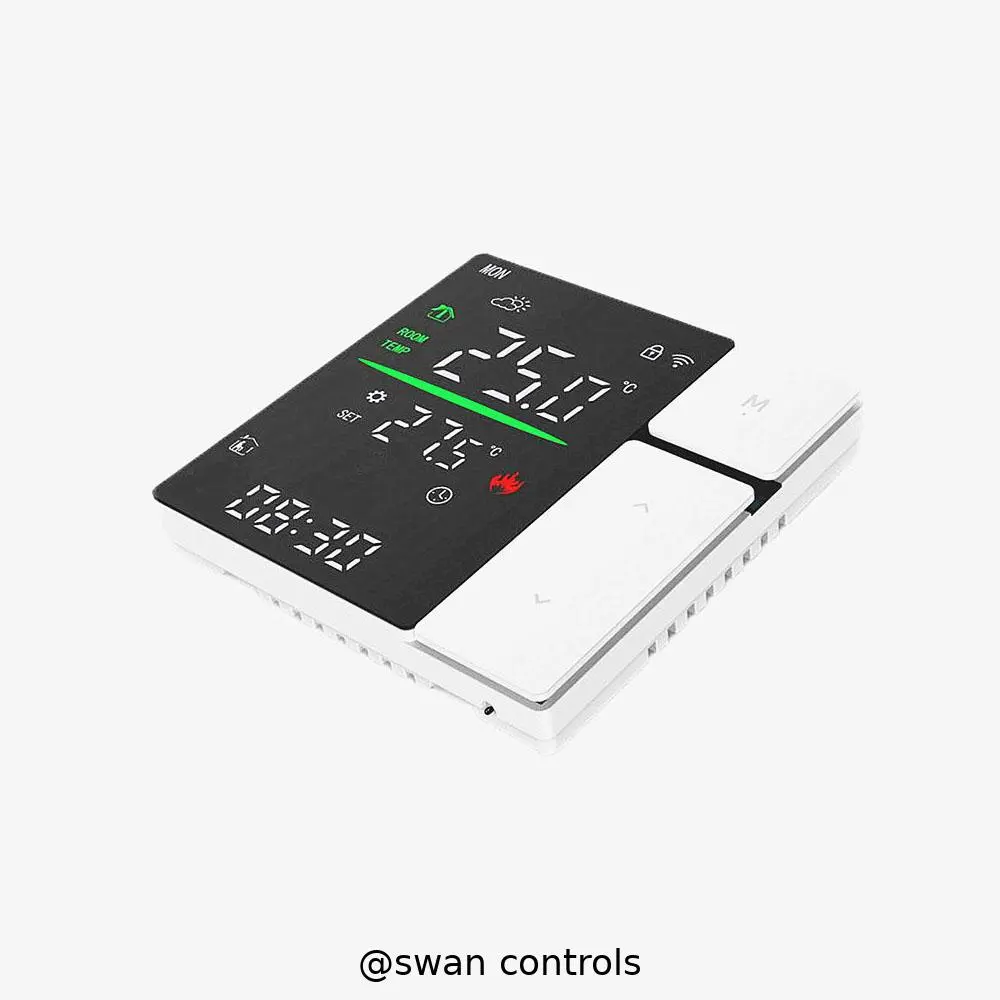

Product Design and Display
(This section shows the product’s dimensions and the interface layout.)
Technical Specifications
(This section lists the key parameters for reference and project confirmation.)
| Parameter | Value |
|---|---|
| Power Supply | 100~250Vac |
| Frequency | 50/60Hz |
| Accuracy | ±0.5°C |
| Sensor | NTC3950, 10K |
| Power Consumption | <1W |
| Temperature Range | 5~70°C |
| Product Size | 86×86×45 mm |
| Protection Class | IP20 |
Wiring Diagram
(This section provides the wiring reference diagram for correct installation.)
Model Code Guide
(This section explains what configuration the model code refers to.)
| Heating series | xx stands for |
| 3A | Water Heating, with NC+NO+COM output terminals |
| 16A | Electric Underfloor Heating, with L+N line voltage output terminals + External Sensor |
| NV | Boiler Heating, with Non-Voltage Dry Contact |
| 3 | 3 = Wi-Fi |
| Example HTW-WF06RP-xx: if xx = 16A-W, it stands for electric floor heating thermostat with external sensor support. Most sub-models are ready-made. Kindly contact us to confirm availability. | |
Project Fit & Customization
(This section explains where the product can be used, its limits, and OEM/ODM options.)
This Electric Heating Thermostat is not suitable for water heating or boiler systems. It does not support dry contact output. It cannot be used for fan coil systems or complex HVAC control. It is designed only for electric heating applications.
Despite these limits mentioned above, ODM customisation can be discussed. Communication functions and interface behaviour may be adjusted. Control logic can be modified based on project requirements. Final options depend on technical evaluation and application conditions.
OEM services are also supported. Logo printing, colour customisation, and label design can be arranged. Packaging and interface details can be adapted to match project branding and delivery needs.
Certificates and Compliance
Frequently Asked Questions
Q1. What system is this Electric Heating Thermostat designed for?
It is designed for electric floor heating systems and supports direct load control through 16A relay output for stable and simple temperature control.
Q2. Does it support external sensor protection?
Yes, it includes a 3m external sensor to monitor floor temperature and prevent overheating, helping improve safety in long-term heating operation.
Q3. Can the Electric Heating Thermostat be controlled remotely?
Yes, it supports WiFi application, allowing users to adjust temperature settings remotely and improve system convenience and operation efficiency.
Q4. What is the MOQ and can I order samples?
We support sample orders. Standard MOQ is 300 units, but smaller quantities can also be discussed depending on project needs.
Q5. How can I place an order?
Please contact us to confirm requirements. We will provide a proforma invoice. Payment supports TT, PayPal, Visa, and EXW, FOB, DAP terms.
Q6. How will the products be shipped?
Courier delivery is recommended and takes about 7 days. Air shipping also takes around 7 days, while sea shipping usually takes over one month.
Related Thermostat Models
If you are selecting or comparing models, please contact us. We can help recommend suitable thermostats based on your heating system and project requirements. You can refer to below links:
Electric Underfloor Heating Thermostat
Water Underfloor Heating Thermostat
Electric heating projects require stable control and safe operation. This model provides direct load control with simple wiring. It supports efficient temperature management and reliable project use. 【More models: heating thermostat】
