Quick Summary

HTW-HT09-3ANV1 is a water heating boiler heating thermostat designed for water heating and boiler systems. It supports dual relay outputs and non-voltage dry contact control. The thermostat measures room temperature using an internal NTC sensor. This water heating boiler heating thermostat provides stable heating switching control.

This page explains how the water heating boiler heating thermostat works in projects. It introduces control logic, wiring reference and key technical parameters. Model configuration meaning and project adaptation options are also explained. Typical installation questions and practical usage information are included.

Key Functional Highlights

(This section explains the core control functions and their practical value.)

01. Dual Output Heating Control
This water heating boiler heating thermostat supports both relay output and dry contact control. This allows connection to different heating equipment types. It improves flexibility when used in mixed water heating or boiler systems. We have another related model HTW-HT09-3ANV3 which with WiFi function.

02. Stable Temperature Sensing
The thermostat uses an NTC sensor to measure room temperature. This provides stable and consistent temperature feedback. Accurate sensing helps maintain comfortable heating conditions.

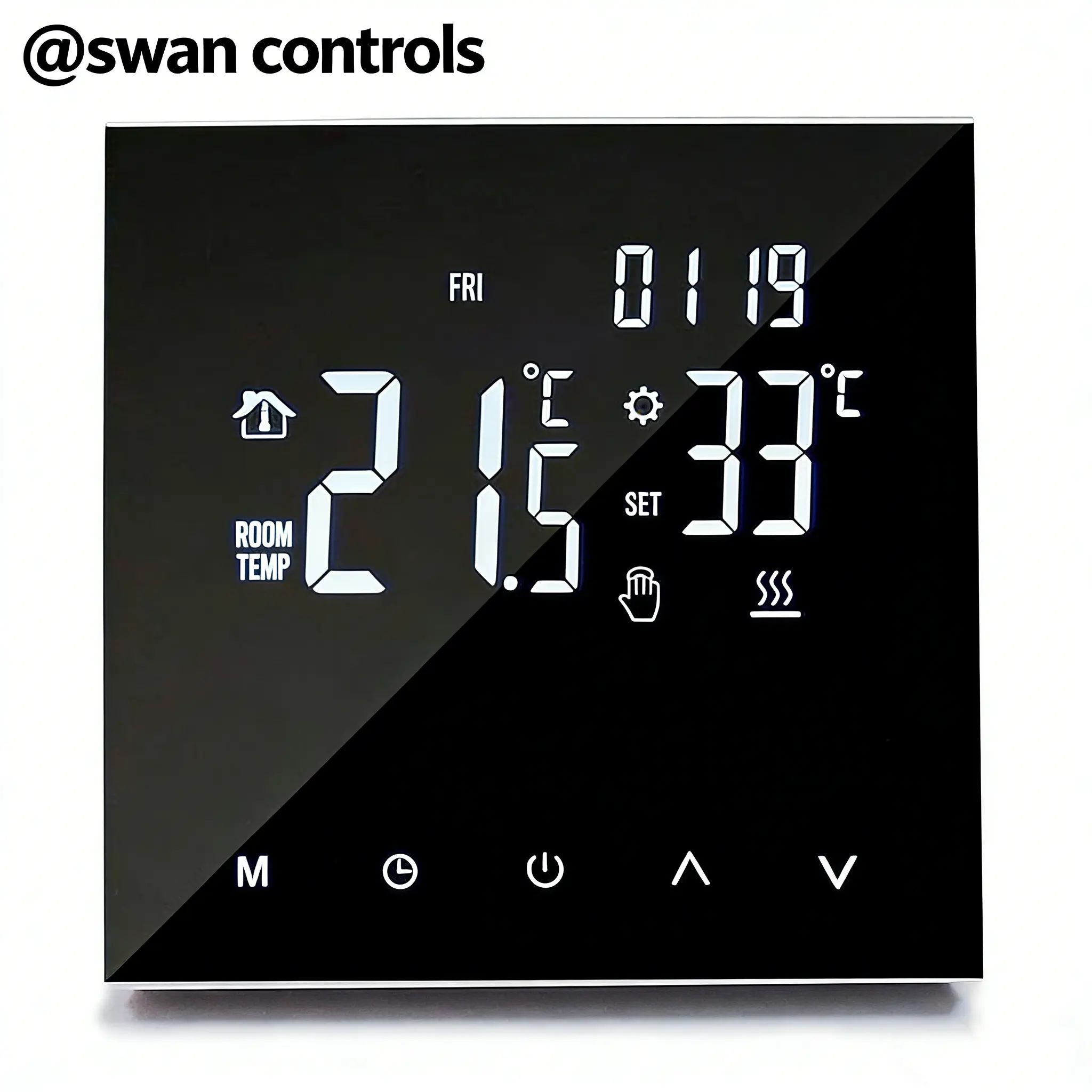

03. Clear Display Interface
The VA screen provides clear temperature and status information. Users can easily read settings under different lighting conditions. This improves usability for daily operation and adjustment.

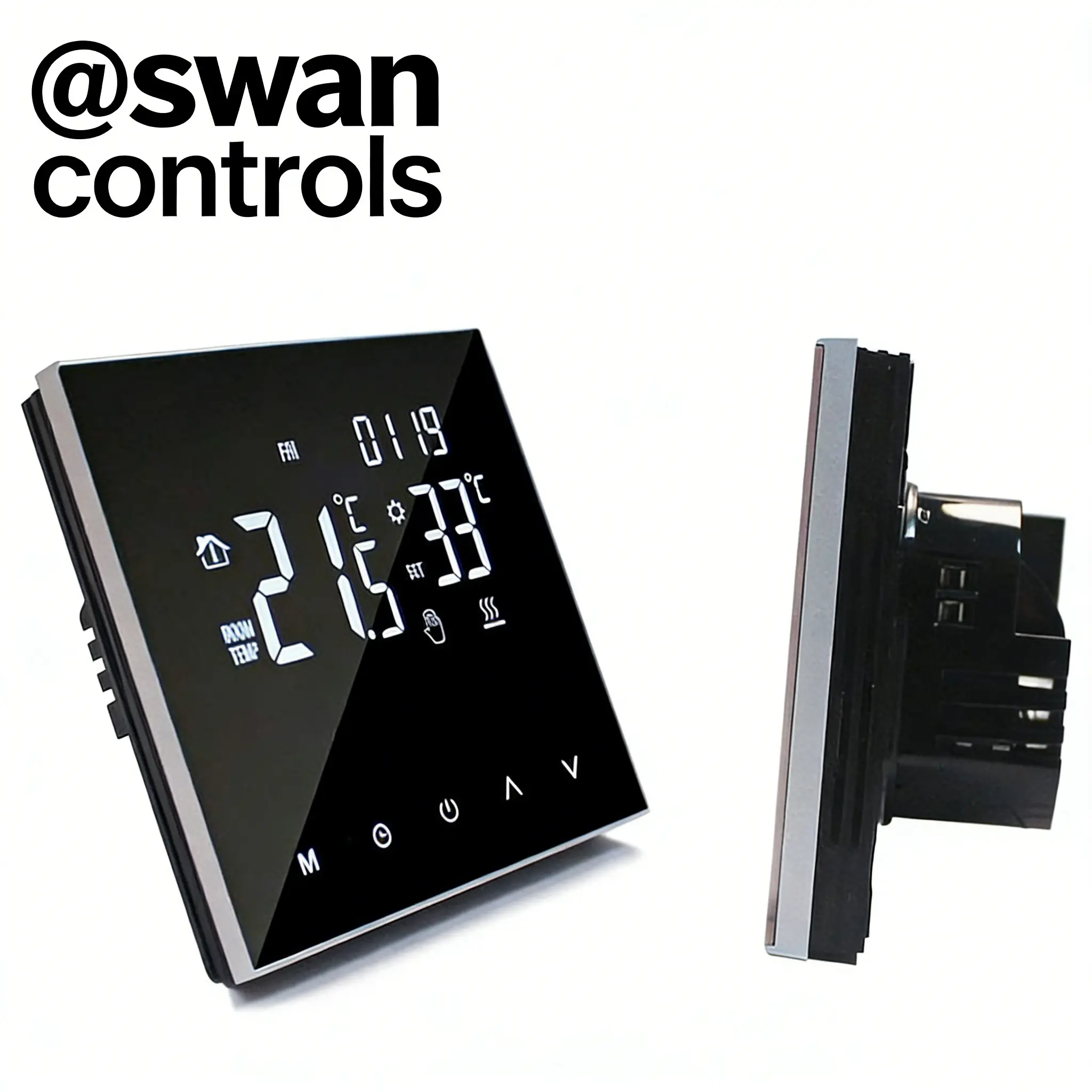

Display

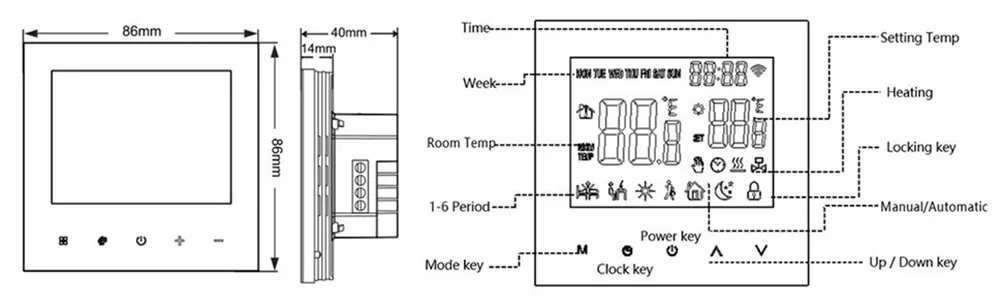

(This section shows the product’s dimensions and the interface layout.)



Specifications

(This section lists the key parameters for reference and project confirmation.)

Parameter	Value
Power Supply	95~240Vac
Frequency	50/60Hz
Accuracy	±0.5°C or ±1°F
Sensor	NTC3950, 10K
Setpoint Range	5~35°C
Display Range	5~99°C
Installation	EU or Standard Electric Box Housing
Material	PC + ABS (Fireproof), IP20

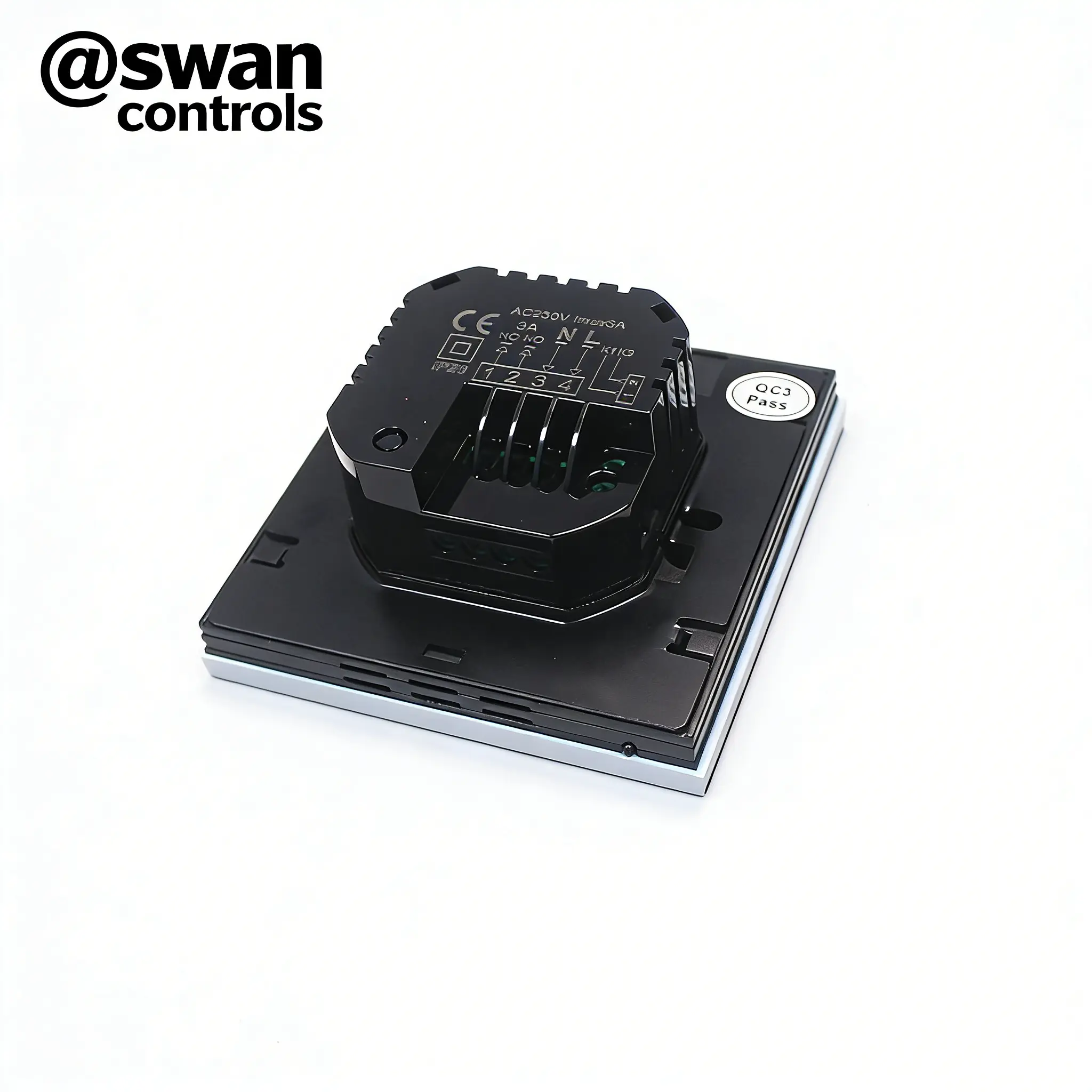

Wiring

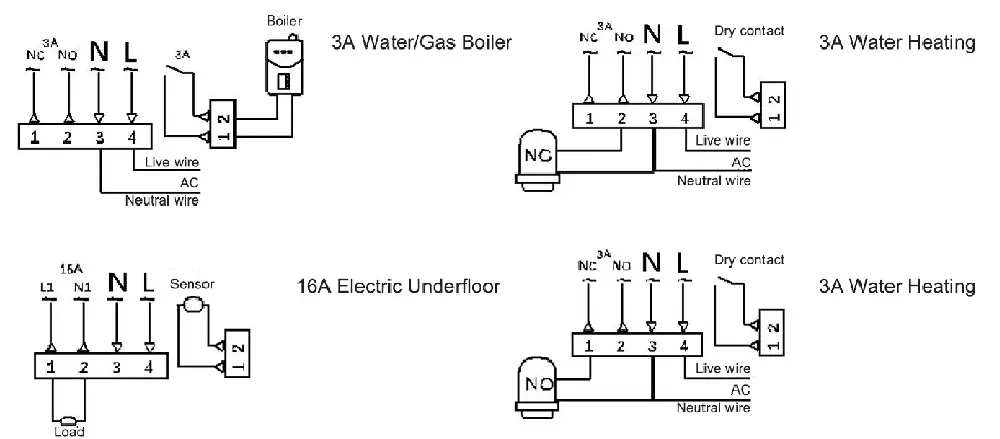

(This section provides the wiring reference diagram for correct installation.)

Guide

(This section explains what configuration the model code refers to.)

Heating series	xx stands for
3A	Water Heating, with NC+NO+COM output terminals
NV	Boiler Heating, with Non-Voltage Dry Contact
1	1 = Standalone
Example	HTW-WF11-xx: if xx = 16A3, it stands for electric floor heating with external sensor support and Wi-Fi function. Most sub-models are ready-made. Kindly contact us to confirm availability.

Project Fit & Customization

(This section explains where the product can be used, its limits, and OEM/ODM options.)

This thermostat is not suitable for systems requiring advanced communication protocols. It does not support Modbus or BACnet. Large building automation projects usually require communication-enabled thermostats.

The product is designed for indoor use only. It should not be installed in high humidity or strong interference environments. Outdoor or remote monitoring projects require different thermostat types.

Despite these limits mentioned above, functional adjustments may still be discussed. Control logic or interface behaviour may be modified based on project needs. OEM services such as logo printing and packaging customisation are supported.

Certifications

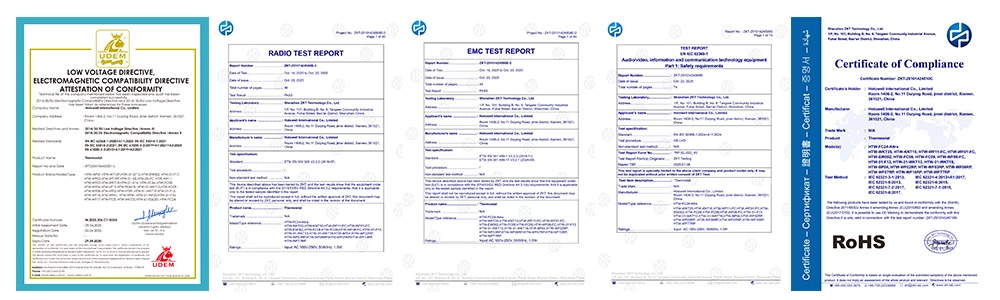

Certification documents for Swan Controls thermostats
