Quick Summary
The HTW-W27 fan coil unit motorized valve combines a forged brass valve body with an actuator for hydronic HVAC systems. It is designed for on/off control of chilled and hot water in FCU applications, supporting both 2-way shut-off and 3-way diverting control. This fan coil unit motorized valve helps maintain stable flow and reliable operation in daily use.
This page helps you understand how this fan coil unit motorized valve fits your project. It explains valve structure, actuator function, installation options, and common selection points, while also supporting OEM discussions based on project needs.
Key Functional Highlights
(This section introduces the main control functions of the fan coil unit motorized valve and actuator assembly, and their engineering value in HVAC water systems.)
(01) Spring Return Safety Design
This fan coil unit motorized valve uses a single direction motor with stainless steel spring return. When power is lost, the valve returns to its default position. This helps prevent uncontrolled water flow and improves system safety during power failure.
(02) 2-Way and 3-Way Options
The fan coil unit motorized valve is available in both 2-way and 3-way versions. 2-way is used for shut-off control, while 3-way supports diverting flow. This allows flexible use in different FCU system layouts.
(03) FCU Water Flow Control
This fan coil unit motorized valve controls the flow of chilled and hot water through the fan coil unit. It helps maintain stable room temperature and improves system response. Proper flow control also supports energy efficiency.
(04) Normally Closed Function
The 2-way version is normally closed, while the 3-way version supports diverting flow. This design helps ensure safe operation and predictable control logic. It is especially useful in building automation projects.
(05) BSP Connection with Custom Option
The valve uses standard BSP thread connection. For projects requiring NPT, customization is available. This helps match different piping standards across regions.

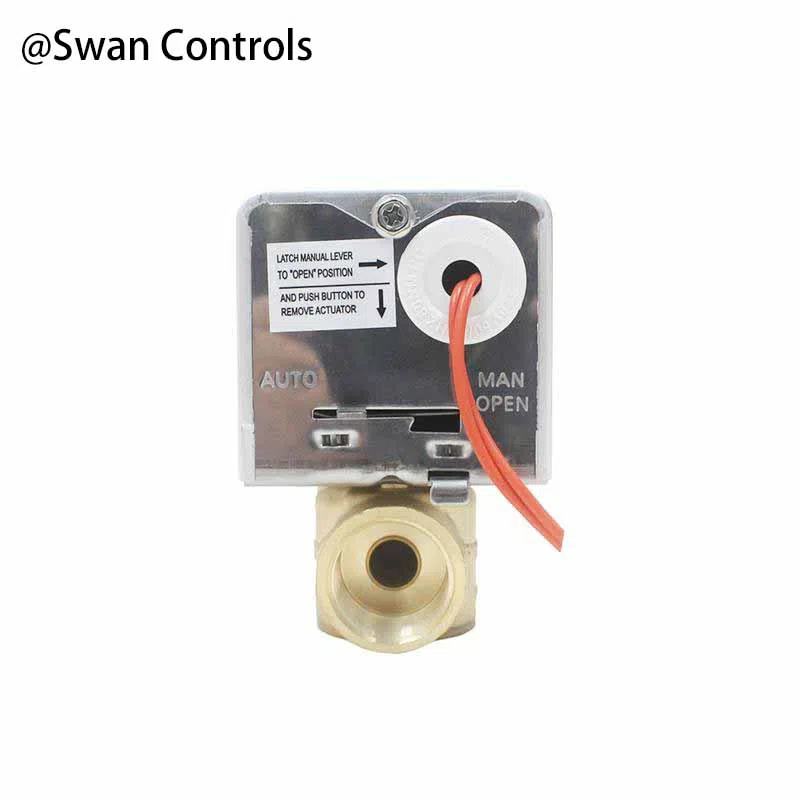

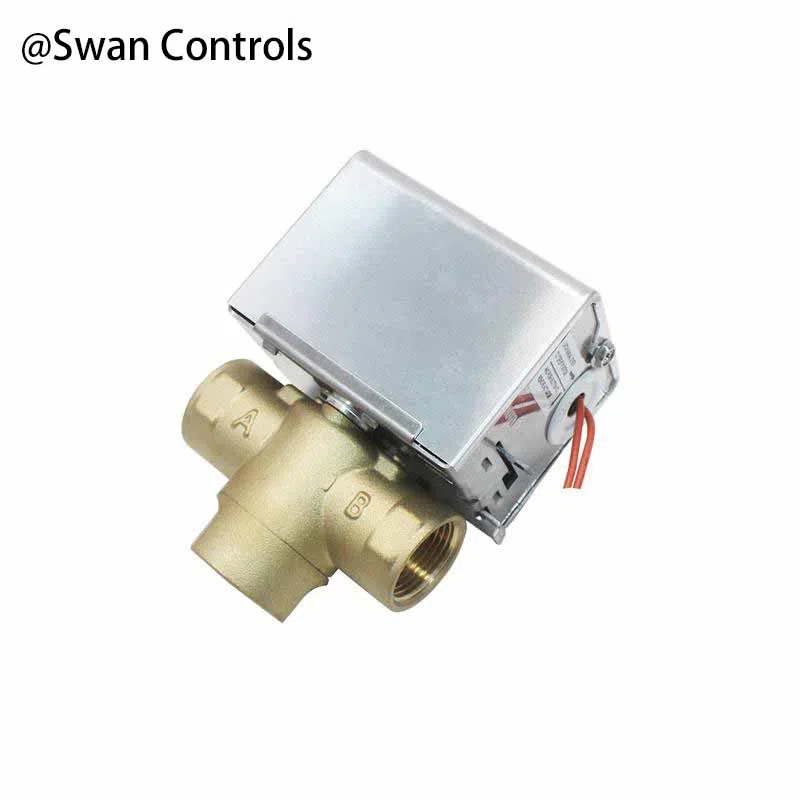

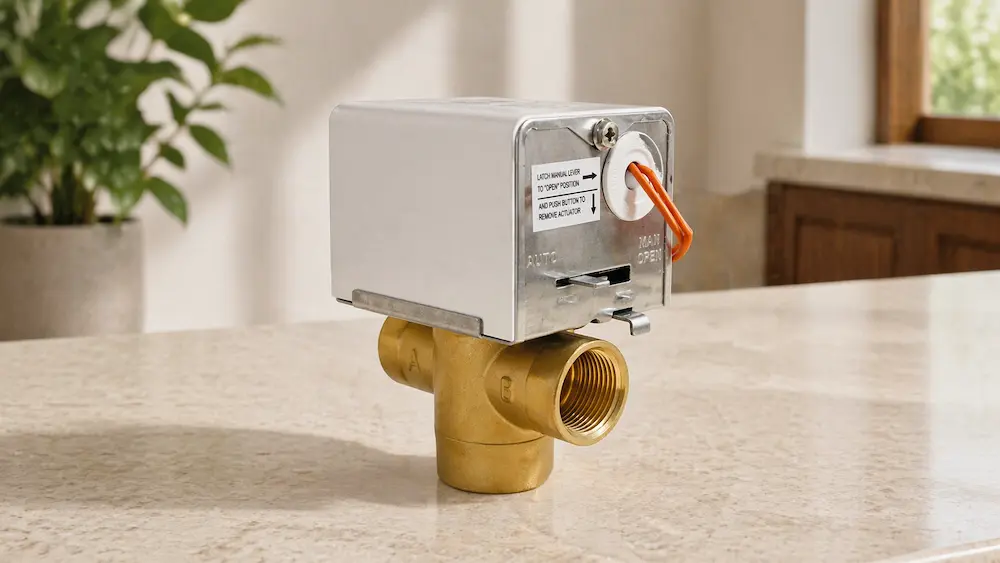

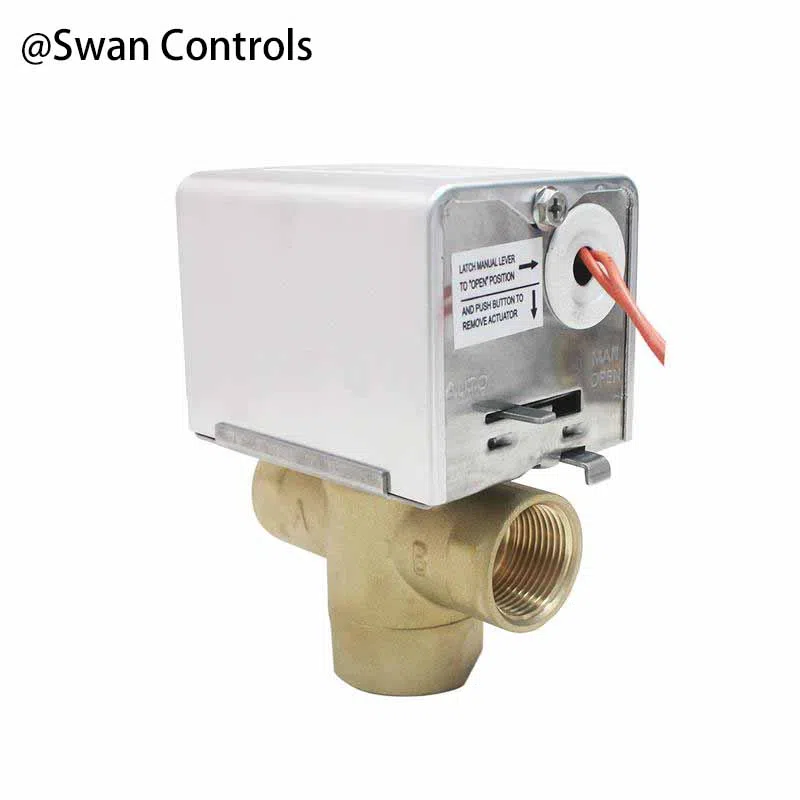

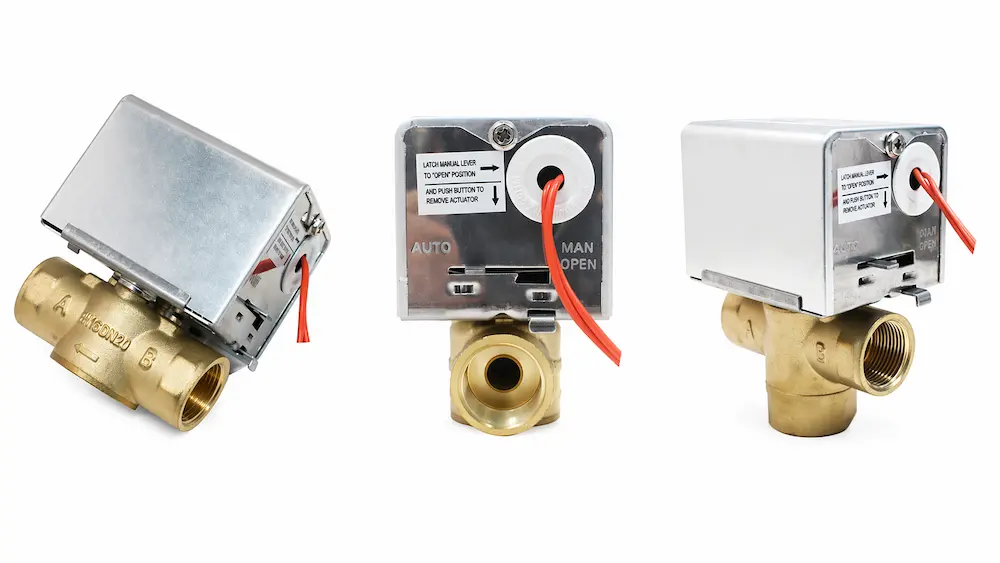

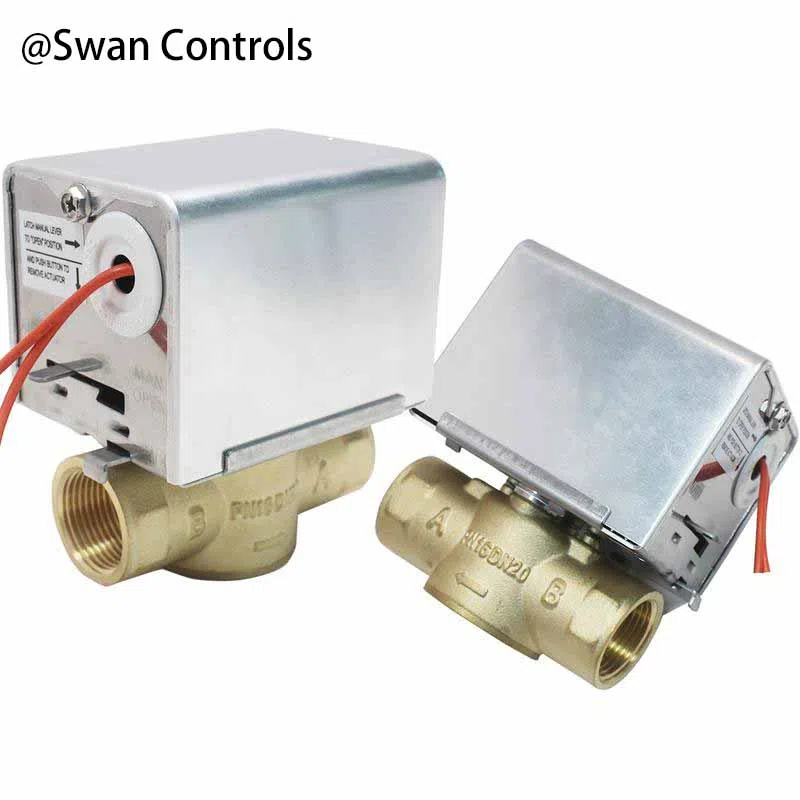

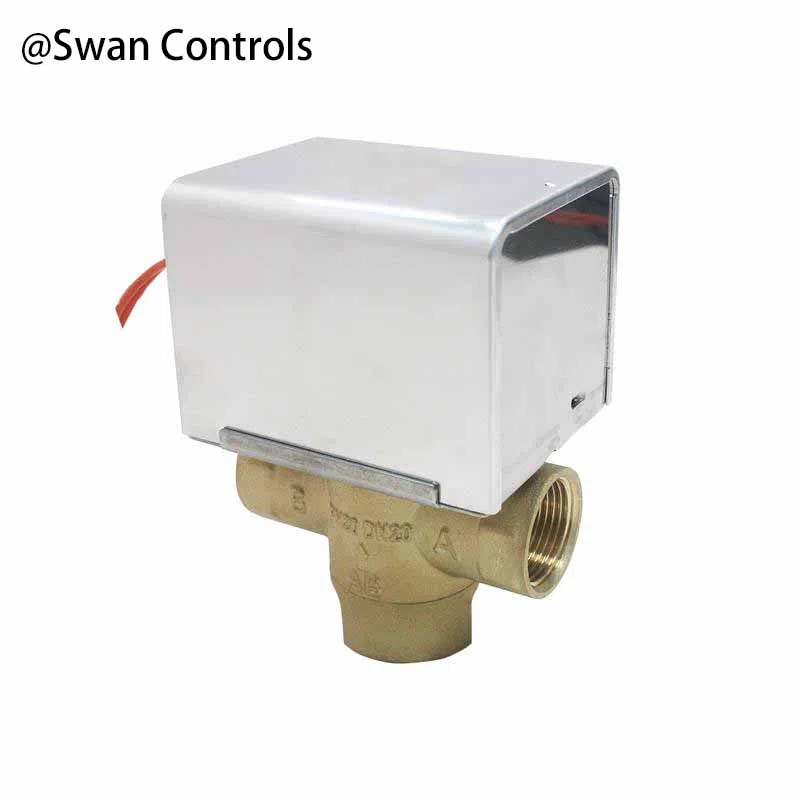

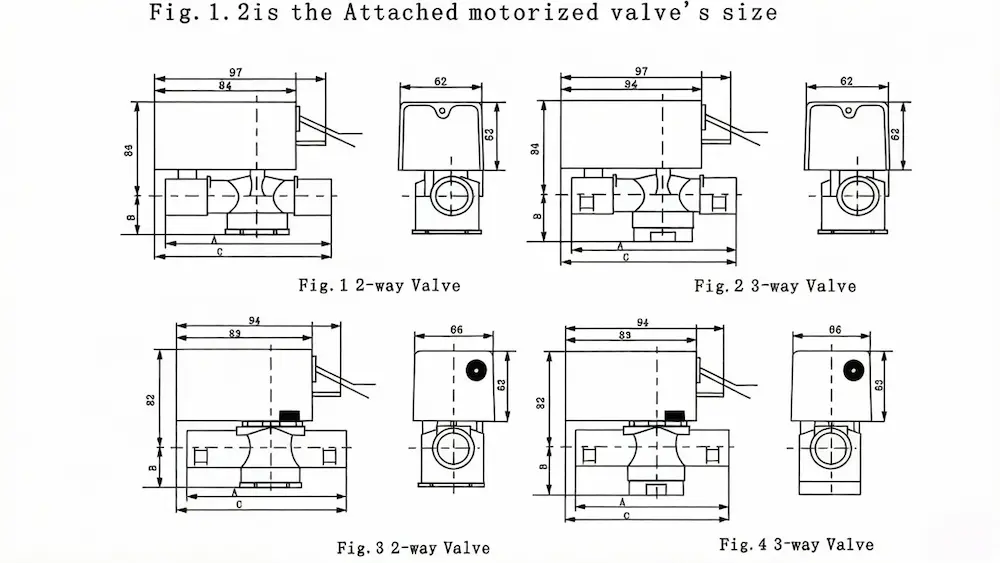

Product Design and Display
(This section shows the valve body, actuator appearance, connection form, and installation structure of this fan coil unit motorized valve model.)
Model Code (Sizes, etc)
| Model Code | Size |
|---|---|
| HTW-W27-215/315 | 215=2 way + DN15(1/2 inch); 315=3 way + DN15(1/2 inch) |
| HTW-W27-220/320 | 220=2 way + DN20(3/4 inch); 320=3 way + DN20(3/4 inch) |
| HTW-W27-225/325 | 225=2 way + DN25(1 inch); 325=3 way + DN25(1 inch) |
| HTW-W27-220 refers to a 2-way DN20 (3/4 inch) valve with a standard 220Vac power supply, BSP thread, and spring return actuator. To confirm the sub-model that suits you, please feel free to get in touch with us directly. | |
Technical Specifications
(This section lists the key technical parameters relevant to this fan coil unit motorized valve model.)
| Parameter | Value |
|---|---|
| Valve Type | Fan Coil Unit Motorized Valve |
| Control Signal | On/Off, Normally Closed |
| Power Supply | 220VAC (Optional: 24VAC / 110VAC) |
| Connection Type | BSP (NPT optional) |
| Power Consumption | 6.5W |
| Working Temperature | 5°C ~ 40°C |
| Water Temperature | 5°C ~ 90°C |
| Valve Body | Forged Brass |

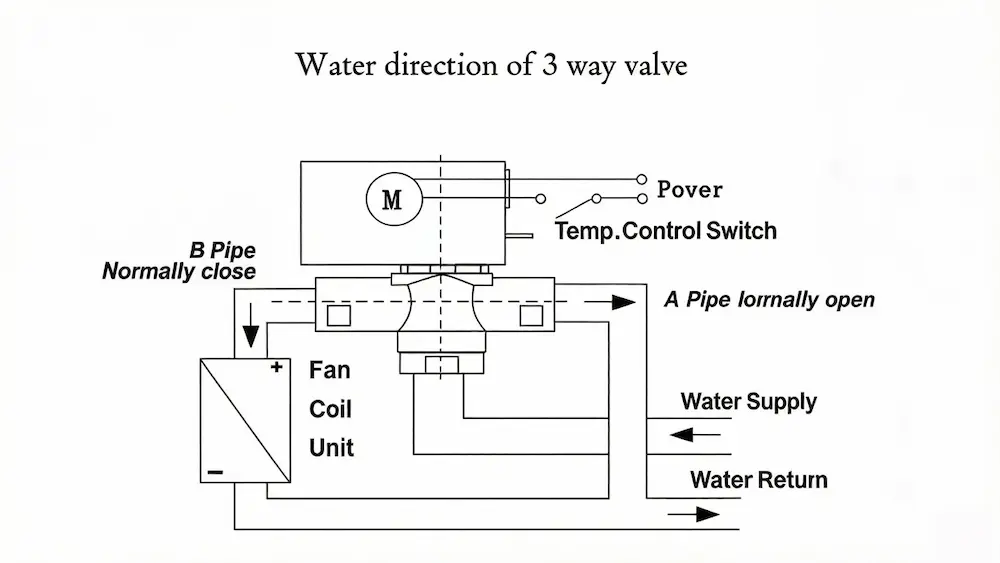

Wiring and Flow Direction
(This section provides the wiring reference for the actuator and the flow direction guidance for the fan coil unit motorized valve in HVAC systems.)
Project Fit & Customization
(This section describes project suitability, system limitations, actuator-valve matching conditions, and available OEM options for this fan coil unit motorized valve.)
This fan coil unit motorized valve is not suitable for steam systems or aggressive fluids. It should not be used outside rated pressure or temperature ranges. Incorrect wiring or voltage mismatch may affect operation.
Despite these limits, power supply, connection type, and actuator configuration can be adjusted. These details can be evaluated based on project needs and order quantity. We are happy to support your selection.
OEM is supported. Logo printing, label customisation, and packaging adjustments are available. Appearance identification can also be discussed based on order quantity.
Certificates and Compliance
(This valve product is designed for HVAC applications and can comply with CE-related requirements for the European market.)
Exhibition Moments
(Our team regularly participates in international HVAC exhibitions such as Febrava in Brazil, The Big 5 in Dubai, and ISK-SODEX in Turkey, etc.)
Frequently Asked Questions
Q1: When should I choose this fan coil unit motorized valve?
This fan coil unit motorized valve is suitable for FCU systems requiring reliable on/off water control. It is commonly used in hotel and office HVAC projects.
Q2: What is the difference between 2-way and 3-way?
2-way valves provide simple shut-off control. 3-way valves are used for diverting flow. The choice depends on system design.
Q3: Does this valve support different voltages?
Yes, 220Vac is standard. 24Vac and 110Vac options are also available. Please confirm your project requirement before ordering.
Q4: What happens during power failure?
The spring return function drives the valve back to its default position. This helps protect the system and ensures safe operation.
Q5: What is the MOQ and do you support samples?
We support sample orders. The typical MOQ is 100 units, but it can be discussed depending on project needs.
Q6: How can we place an order?
Please share your requirements with us. We will provide a PI for confirmation. Payment options include TT, PayPal, and Visa.
Q7: What is the lead time?
Standard samples are shipped within 7 days. Custom orders usually take 3–5 weeks. A batch of 100 units takes about one month.
Q8: What shipping methods are available?
Courier delivery takes about 7 days. Air freight is similar. Sea shipping takes about one month or longer depending on destination.
Need Help Choosing the Right Model?
If you are not sure which fan coil unit motorized valve suits your project, please feel free to get in touch with us. We are happy to support you.
Related Valve Models
To find out other valves, please click here directly:
Motorized valves | Ball Valves | PICV
If one is looking for the thermostat also, please click here: FCU Wi-Fi Thermostat | FCU Modbus Thermostat | Heating Thermostat
Final Note
In hydronic HVAC projects, stable water flow control is essential for zoning and comfort. The HTW-W27 fan coil unit motorized valve ensures reliable shut-off and flow control. It supports safe operation, stable performance, and easier system management.
