Quick Summary
The HTW-WKT18-3ANV1 Wireless Heating Thermostat is designed for water and boiler heating systems. It uses a wireless panel and receiver structure. It supports 3A relay output for stable switching. The internal sensor controls temperature accurately in standard indoor environments.
This page explains how the Wireless Heating Thermostat works in real projects. It covers control logic, wiring, and key parameters. It also includes installation points and common questions. Basic OEM and ODM options are available for project needs.
Key Features
(This section explains the core control functions and their practical value.)
(01) Wireless control structure
This Wireless Heating Thermostat separates the control panel and receiver. It removes direct wiring between control and load. This helps reduce installation time and improves flexibility in retrofit or renovation projects. If you are interested in boiler heating thermostat, please refer to this link: HTW-WKT18-NV3.
(02) Dual heating system compatibility
The thermostat supports both water heating and boiler heating systems. It uses a 3A relay output for stable switching. This allows one model to cover more project types with simple configuration.
(03) Battery powered panel design
The control panel uses 2 AA batteries or USB power. It avoids fixed wiring constraints. This makes it easier to place the thermostat in the best position for accurate temperature sensing.
(04) Internal sensor temperature control
The wireless heating thermostat uses an internal NTC sensor for temperature detection. It keeps the control logic simple and stable. This is suitable for standard rooms where external sensing is not required.
Product Design and Display
(This section shows this wireless heating thermostat’s dimensions and the interface layout.)

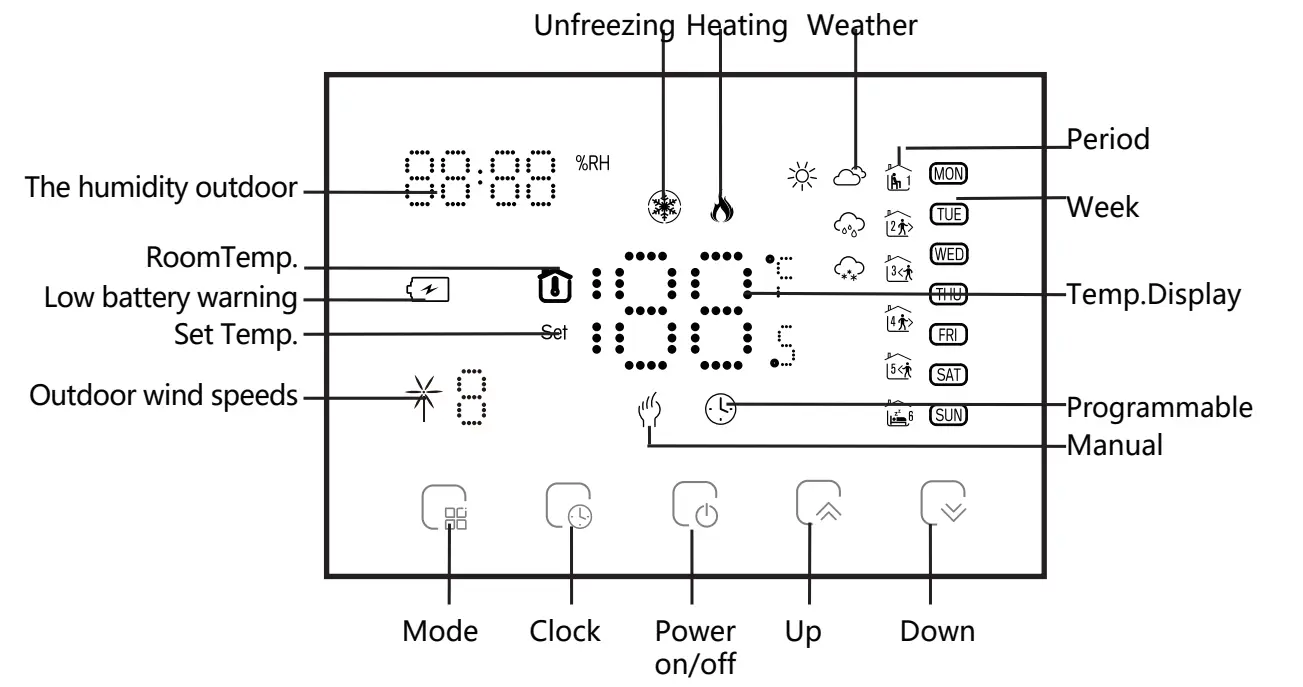

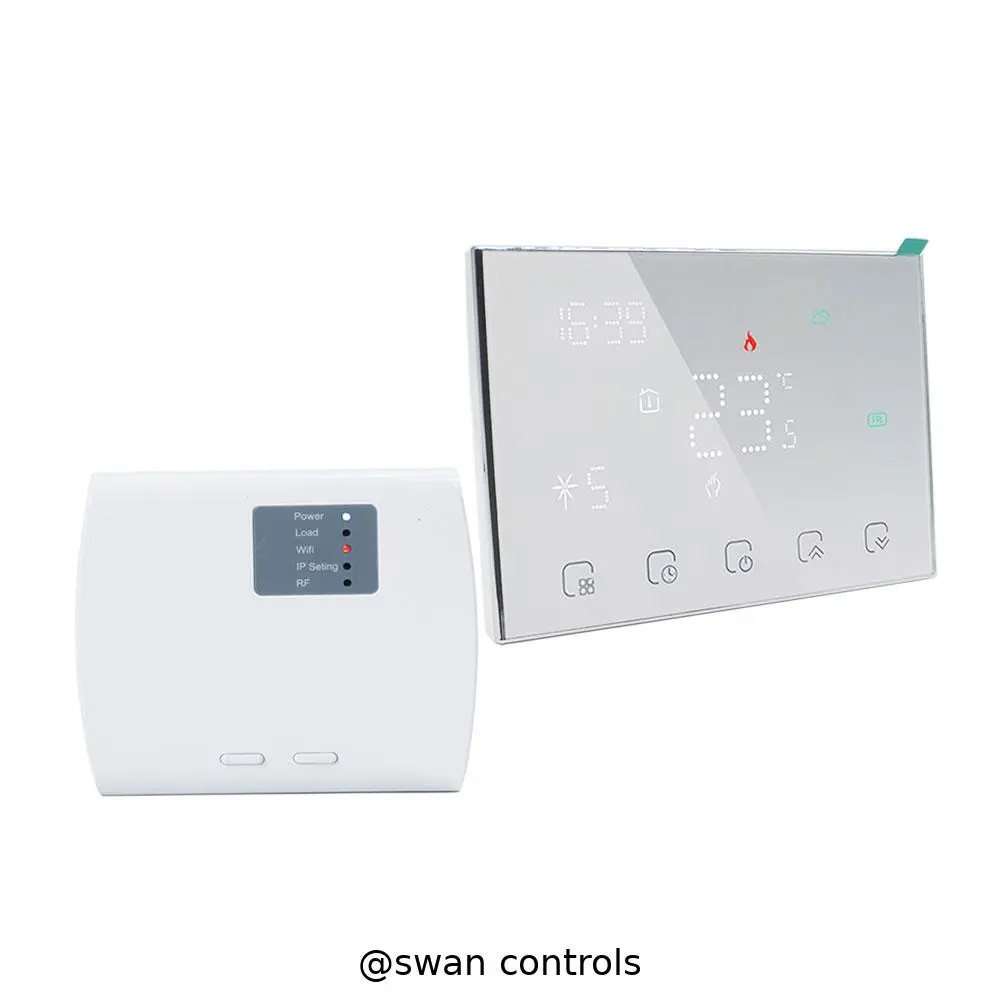

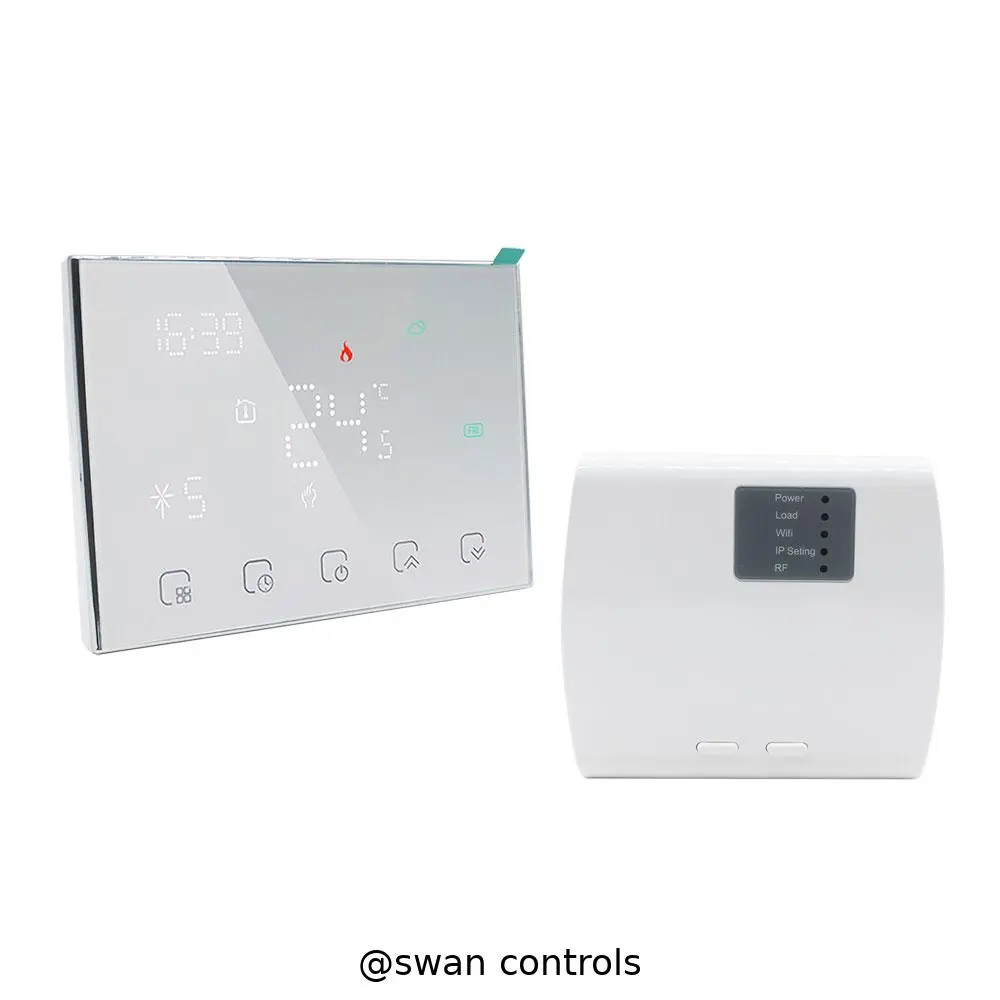

The thermostat uses an LED screen with capacitive touch buttons. The panel design is simple and clean. The receiver is wall-mounted and compact. This design supports clear operation and practical installation.
Technical Specifications
(This section lists the key parameters for reference and project confirmation.)
| Parameter | Value |
|---|---|
| Receiver Power Supply | 95~230V AC, 50/60Hz |
| Panel Power Supply | 2 × AA Battery / USB |
| Relay Load | 3A (water heating / boiler) |
| Accuracy | 0.5°C |
| Temperature Range | 5~35°C |
| Sensor | NTC3950, 10K |
| Ambient Condition | 0~45°C, 5~95% RH |
| Protection Class | IP20 |

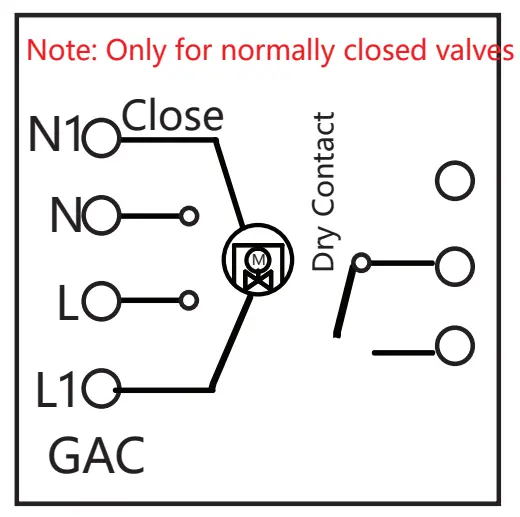

Wiring Diagram
(This section provides the wiring reference diagram for correct installation.)
The receiver connects to the heating system using relay terminals. The panel communicates wirelessly with the receiver. Correct pairing ensures stable signal and reliable system control.
Model Code Guide
(This section explains what configuration the model code refers to.)
| Heating series | xx stands for |
|---|---|
| 3A | Water Heating, with NC+NO+COM output terminals |
| 16A | Electric Underfloor Heating, with L+N output + External Sensor |
| NV | Boiler Heating, with Non-Voltage Dry Contact |
| 1 | Standalone |
| Example HTW-WF11-xx: if xx = 16A3, it stands for electric floor heating with external sensor and Wi-Fi. Most models are ready-made. Contact us to confirm availability. | |
Project Fit & Customization
(This section explains where this wireless heating thermostat can be used, its limits, and OEM/ODM options.)
This Wireless Heating Thermostat is not suitable for BMS integration projects. It does not support WiFi or app control. It is also not suitable for electric floor heating or systems needing external sensors.
Despite these limits mentioned above, ODM customization can be discussed. Control logic or hardware structure may be adjusted. Communication or interface changes can be evaluated based on project needs.
OEM customization is supported for branding and packaging. This includes logo printing, colour changes, and label design. These options help match local market requirements and project standards.
Certificates and Compliance
Frequently Asked Questions
Q1. Can this wireless heating thermostat control both water and boiler heating?
Yes, it supports both water heating and boiler systems. The 3A relay output ensures stable switching and reliable control in typical heating applications.
Q2. Does it require wiring between panel and receiver?
No, the panel and receiver communicate wirelessly. This reduces wiring work and allows flexible installation in different room layouts.
Q3. Is this thermostat suitable for electric floor heating?
No, this model is not designed for electric floor heating. A 16A version with external sensor is usually more suitable.
Q4. What is the MOQ and can we get samples?
We support sample orders. Standard MOQ is 300 units, but smaller quantities like 100 units may be discussed for trial or project testing.
Q5. How do we place an order?
Please contact us with your requirements. We will confirm details and issue a PI. Payment supports TT, PayPal, Visa, with EXW, FOB, DAP terms.
Q6. How will the products be shipped?
Express delivery is recommended and takes about 7 days. Air shipping is similar. Sea shipping usually takes over one month depending on destination.
Related Thermostat Models
For projects needing other models, please contact us to discuss suitable options for your project. Also you can refer to below links:
Water Underfloor Heating Thermostat
Wired Boiler Heating Thermostat
This Wireless Heating Thermostat is suitable for projects needing simple wireless installation and stable control. It is often used in residential heating systems. For smart control or system integration, other models should be selected. 【Moremodels: heating thermostat】
