Quick Summary
HTW-WF10-16A3MT is a Matter Protocol Electric Underfloor Heating Thermostat for electric floor heating systems. It controls heating output through relay switching and sensor feedback. The unit supports internal and external sensors for stable control. WiFi and Matter protocol enable remote access and system integration.
This page explains how the Matter Protocol Electric Underfloor Heating Thermostat works in projects. It covers control logic, wiring method, and parameter setup. It also explains configuration meaning and customisation options. Typical questions and answers are included for quick understanding.
Key Features
(This section explains the core control functions and their practical value.)
01 Relay-Based Heating Control
The Matter Protocol Electric Underfloor Heating Thermostat controls heating using relay output. It compares measured temperature with setpoint. This ensures stable heating operation and reduces unnecessary switching in daily use. We also have a standalone model HTW-WF10-16A1.
02 Internal and External Sensor Control
The thermostat supports both internal and external sensors for temperature detection. Internal sensor manages room temperature. External sensor limits floor temperature and protects heating system during continuous operation.
03 WiFi and Matter Connectivity
WiFi and Matter protocol enable remote control and system integration. Users can adjust settings through mobile application or smart platforms. This improves flexibility in smart home and project deployment scenarios.

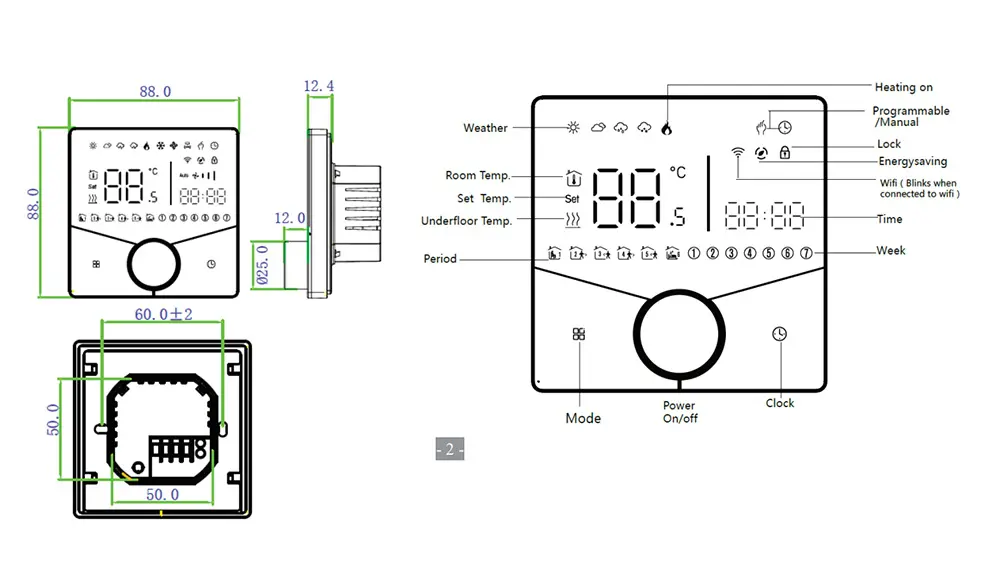

Product Design and Display
(Shows the product’s dimensions and the interface layout.)
Technical Specifications
(This section lists the key parameters for reference and project confirmation.)
| Parameter | Value |
|---|---|
| Power Supply | 95~240Vac |
| Frequency | 50/60Hz |
| Accuracy | ±0.5°C |
| Sensor | NTC3950, 10K |
| Setpoint Range | 5~35°C |
| Display Range | 5~99°C |
| Housing Material | PC + ABS (Fireproof) |
| Protection Class | IP20 |

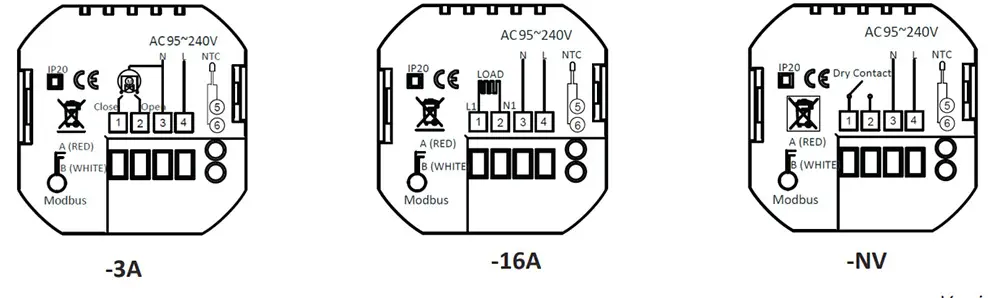

Wiring Diagram
(This section provides the wiring reference diagram for correct installation.)
Model Code Guide
(This section explains what configuration the model code refers to.)
| Heating series | xx stands for |
| 3A | Water Heating, with NC+NO+COM output terminals |
| 16A | Electric Underfloor Heating, with L+N line voltage output terminals + External Sensor |
| NV | Boiler Heating, with Non-Voltage Dry Contact |
| 1/3 | 1 = Standalone, 3 = Wi-Fi |
| Example HTW-WF10-xx: if xx = 16A3, it stands for electric floor heating with external sensor support and Wi-Fi function. Most sub-models are ready-made. Kindly contact us to confirm availability. | |
Project Fit & Customization
(This section explains where the product can be used, its limits, and OEM/ODM options.)
This Matter Protocol Electric Underfloor Heating Thermostat is not suitable for water or boiler systems. It does not support valve or fan coil control. It is not designed for complex BMS protocols like Modbus. It works only with electric heating loads.
Despite these limits mentioned above, ODM customisation can be discussed. Communication protocol or app functions may be adjusted. Control logic or sensor settings can be modified based on project needs. Final feasibility depends on technical evaluation.
OEM services are available for branding and appearance adjustments. Logo printing, colour customisation, and label design can be supported. Packaging and interface changes may also be arranged for bulk orders.
Certificates and Compliance
Exhibition Moments
Frequently Asked Questions
Q1. What system is this Matter Protocol Electric Underfloor Heating Thermostat used for?
It is used for electric floor heating systems and controls heating output through relay switching based on temperature feedback.
Q2. How is the thermostat installed and wired?
It is installed in a standard electric box and connected to L and N power supply and heating load terminals following standard installation practice.
Q3. Does it support smart system integration?
Yes, WiFi and Matter protocol allow integration with mobile apps and compatible smart systems for remote control and system management.
Q4. What is the MOQ and can I order samples?
We support sample orders. Standard MOQ is 300 units, but smaller trial quantities such as 100 units can also be discussed.
Q5. How can I place an order?
Please contact us to confirm requirements. We will provide a proforma invoice. Payment supports TT, PayPal, Visa, and terms like EXW, FOB, or DAP.
Q6. How will the products be shipped?
Courier delivery is recommended and takes about 7 days. Air shipping also takes around 7 days, while sea freight usually takes over one month.
Need Support?
If you need help with model selection or integration, please contact us. Our team can support your project setup. You can refer to below links:
Electric Underfloor Heating Thermostat
Water Underfloor Heating Thermostat
Final Note / Practical Takeaway:This Matter Protocol Electric Underfloor Heating Thermostat offers stable heating control with smart connectivity. It fits projects requiring reliable performance, remote access, and clear installation logic. 【Model models: heating thermostat】
