Quick Summary
HTW-WKT25-BP is a Wired boiler heating thermostat designed for boiler heating systems. It controls heating output using dry contact switching and temperature sensing. The unit is battery powered with 3×AAA supply. LED slide operation allows simple and stable temperature adjustment during daily use.
This page explains how the Wired boiler heating thermostat works in projects. It covers control logic, wiring method, and parameter setup. It also explains model configuration and customisation options. Typical questions and answers are included for quick reference.
Key Features
(This section explains the core control functions and their practical value.)
01 Battery Powered Operation
The Wired boiler heating thermostat uses 3×AAA batteries for power supply. This removes the need for line voltage wiring. It simplifies installation and improves flexibility in retrofit or replacement projects.
02 Slide-Based Temperature Control
The thermostat uses slide up and down operation for temperature setting. This reduces mechanical wear and improves user interaction. It allows quick adjustment and supports stable control during daily operation.
03 Boiler Control via Dry Contact
The Wired boiler heating thermostat controls boiler systems using dry contact output. This matches common boiler control requirements. It ensures reliable switching and stable system operation in heating applications. We have another model HTW-WKT25-RF3 can support wireless boiler heating system and WiFi function.

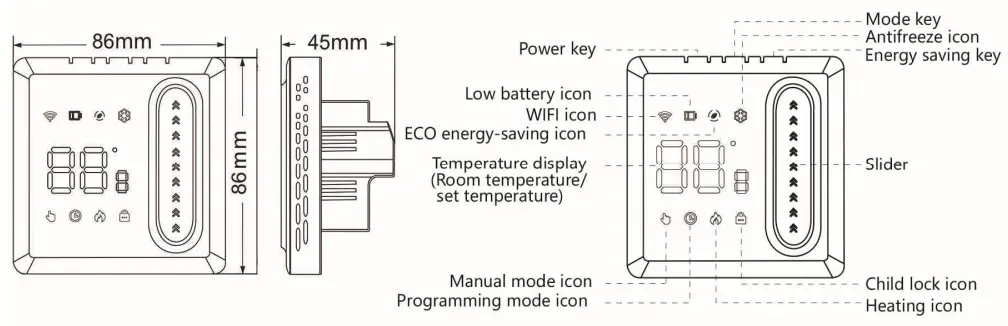

Product Design and Display
(This section shows the product’s dimensions and the interface layout.)
Technical Specifications
(This section lists the key parameters for reference and project confirmation.)
| Parameter | Value |
|---|---|
| Power Supply | 3×AAA Battery |
| Accuracy | ±0.5°C |
| Sensor | NTC3950, 10K |
| Power Consumption | <1W |
| Temperature Range | 5~70°C |
| Product Size | 86×86×45 mm |
| Material | PC + ABS (Fireproof) |
| Protection Class | IP20 |

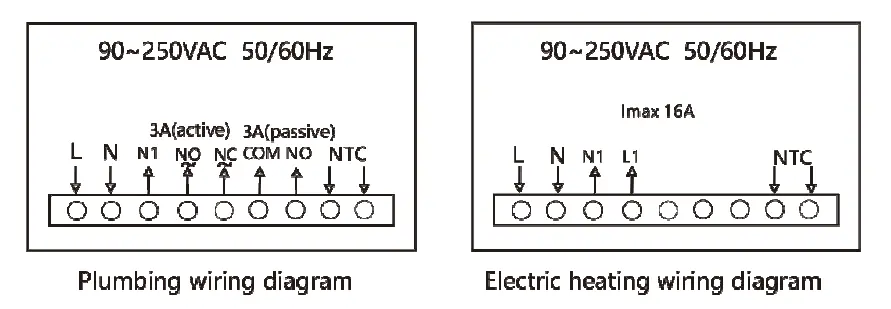

Wiring Diagram
(This section provides the wiring reference diagram for correct installation.)
Model Code Guide
(This section explains what configuration the model code refers to.)
| Heating series | xx stands for |
| 3A | Water Heating, with NC+NO+COM output terminals |
| 16A | Electric Underfloor Heating, with L+N line voltage output terminals + External Sensor |
| NV | Boiler Heating, with Non-Voltage Dry Contact |
| 1 | 1 = Standalone |
| Example HTW-WKT25-xx: if xx = BP, it stands for battery powered boiler heating thermostat. Most sub-models are ready-made. Kindly contact us to confirm availability. | |
Project Fit & Customization
(This section explains where the product can be used, its limits, and OEM/ODM options.)
This Wired boiler heating thermostat is not suitable for electric floor heating systems. It does not support water valve control or fan coil systems. It is not designed for WiFi or BMS integration. It is intended for simple standalone boiler control only.
Despite these limits mentioned above, ODM customisation can be discussed. Control logic or output type may be adjusted. Interface behaviour or sensing options can be modified. Final solution depends on technical evaluation and project requirements.
OEM services are available for branding and appearance changes. Logo printing, colour options, and label design can be supported. Packaging and interface adjustments may also be arranged for bulk production.
Certificates and Compliance
Frequently Asked Questions
Q1. What system is this Wired boiler heating thermostat used for?
It is designed for boiler heating systems and controls heating output through dry contact switching based on temperature feedback.
Q2. Does it require external power supply?
No, it is powered by 3×AAA batteries, which simplifies installation and removes the need for line voltage wiring in many projects.
Q3. Does it support WiFi or remote control?
No, this model is a standalone wired boiler heating thermostat without WiFi or remote control functionality. It is designed for simple and reliable local operation.
Q4. What is the MOQ and can I order samples?
We support sample orders. Standard MOQ is 300 units, but smaller trial quantities such as 100 units can also be discussed.
Q5. How can I place an order?
Please contact us to confirm requirements. We will provide a proforma invoice. Payment supports TT, PayPal, Visa, and terms like EXW, FOB, or DAP.
Q6. How will the products be shipped?
Courier delivery is recommended and takes about 7 days. Air shipping also takes around 7 days, while sea freight usually takes over one month.
Related Thermostat Models
If you are comparing models or selecting alternatives, please contact us. We can help match suitable thermostats based on your project needs.
Or you can refer to below links:
Electric Underfloor Heating Thermostat
Water Underfloor Heating Thermostat
Final Note / Practical Takeaway:This Wired boiler heating thermostat provides simple and reliable control for boiler systems. It suits projects requiring easy installation, stable operation, and independent temperature control without complex integration. 【More models: heating thermostat】
