Quick Summary
The HTW-FC09-3KDMEN modbus thermostat is designed for fan coil ac system control. It manages a 3-speed fan and supports 2-pipe valve control. Both on/off and modulating control are available. It works in heating and cooling modes with stable control logic.
This page covers its control logic, function meaning, and key parameters. It also includes wiring guidance and typical project questions. Customisation options are outlined for practical project use.
Key Functional Highlights
(This section introduces the main control functions and their engineering value in the ac system.)
(01) 3-speed fan control
Three fan speeds allow flexible airflow adjustment during operation. This helps balance comfort and noise levels in different rooms. It also improves system stability by matching airflow with real cooling or heating demand.
(02) 2-pipe valve control (on/off or modulating)
This modbus thermostat supports both on/off and modulating valve control. It fits common 2-pipe ac system layouts used in many projects. This flexibility helps reduce design changes during project deployment.
If a thermostat with 24V output for the modulating valve is preferred, this model may be considered (please click → HTW-FC09-FVMN-24K).
(03) RS485 Modbus communication
RS485 Modbus allows connection with a BMS for central control. We can monitor room status and adjust settings remotely. This improves operation efficiency and reduces manual maintenance work.
(04) External sensor support
An external sensor provides additional temperature input when required. It helps improve control accuracy in larger or complex rooms. This ensures more stable performance where built-in sensing is not sufficient.
(05) 2 digital inputs + 1 analogue input
Multiple inputs allow flexible integration with field signals. Digital inputs can connect door contacts or occupancy signals. The analogue input supports extended control logic in more complex ac system projects.
Product Design and Display

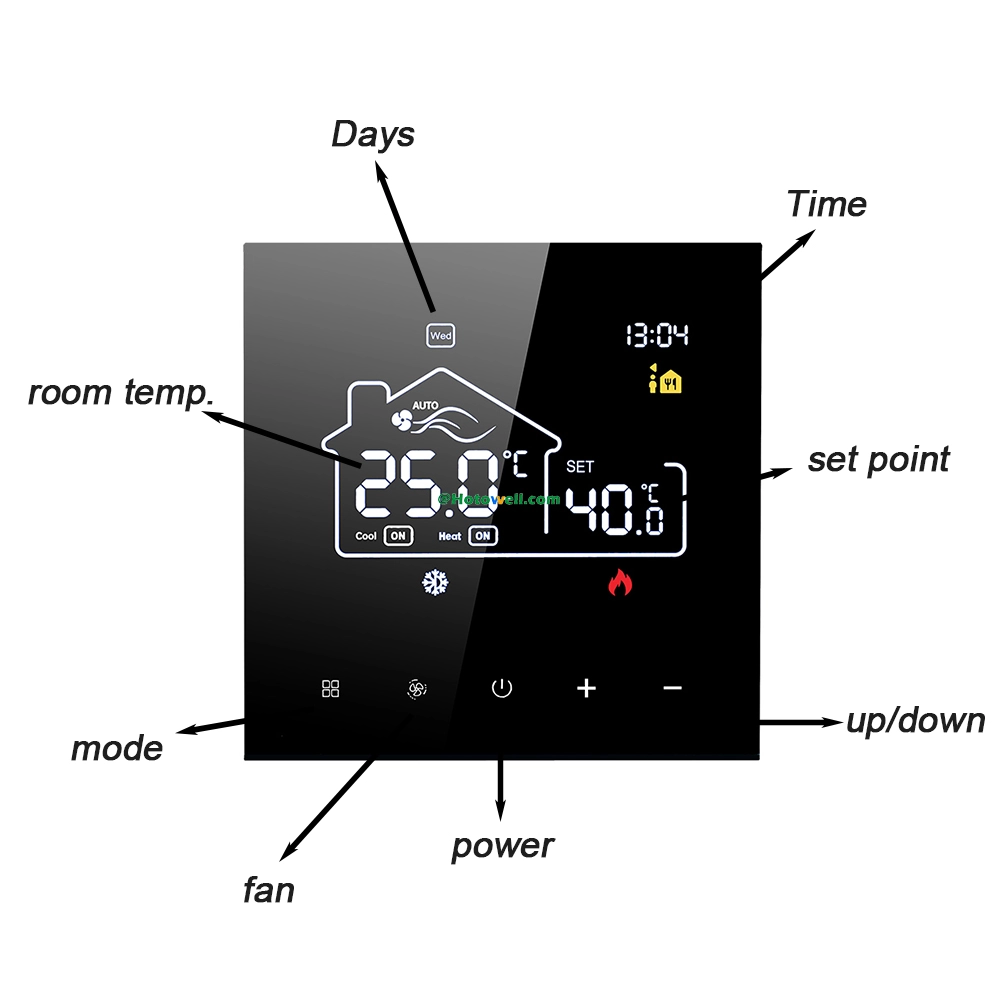

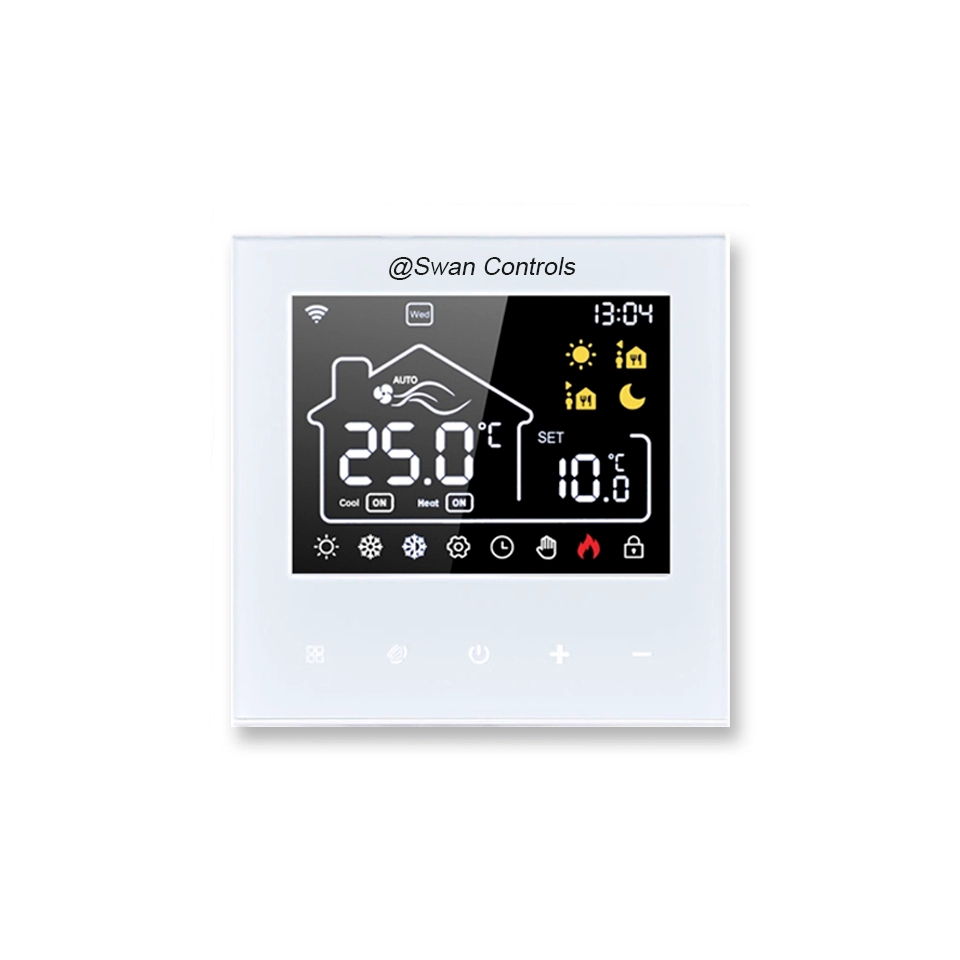

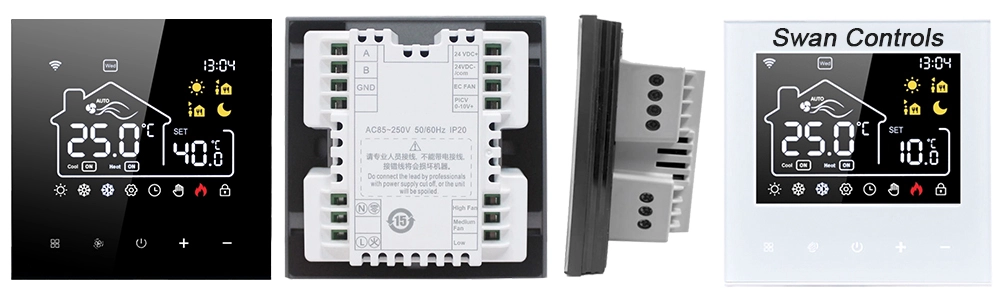

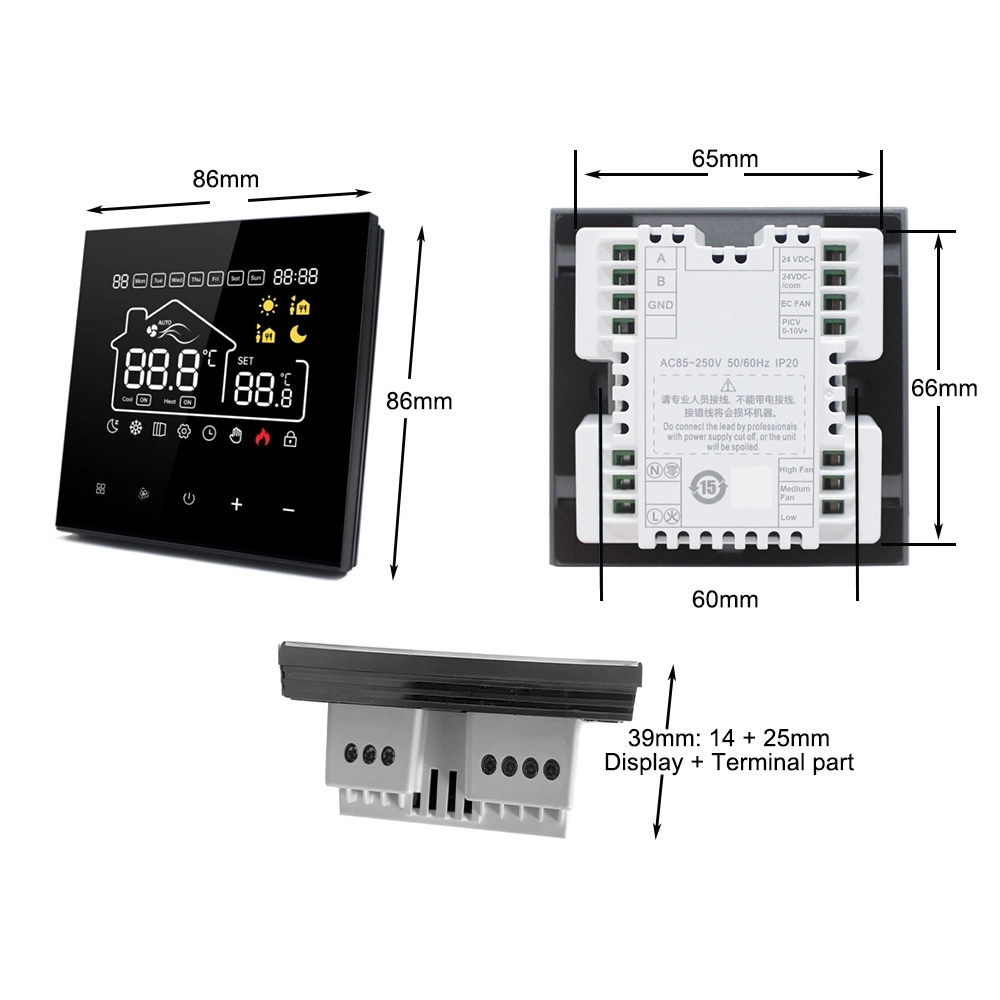

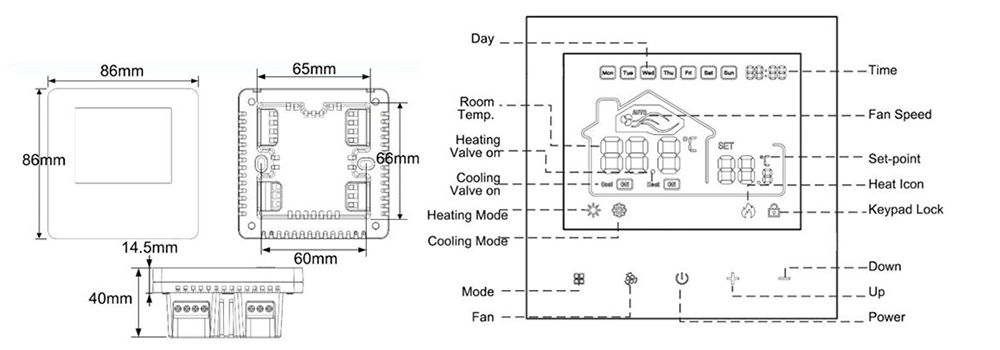

(This section shows the thermostat appearance, screen interface, or installation dimensions of this specific model.)
Technical Specifications
(This section lists the key technical parameters relevant to this thermostat model.)
| Parameter | Value |
|---|---|
| Power Supply | 95~240Vac, 50/60Hz |
| Current Load | Fan Relay 5A |
| Built-in Sensor | NTC3950, 10K |
| Temperature Accuracy | ±0.5°C |
| Set-Point Range | 5~35°C |
| Installation | Standard 86x86mm Box |
| Warranty | 2 Year |
| Control Type | 3-speed fan + 2-pipe |
Wiring Diagram

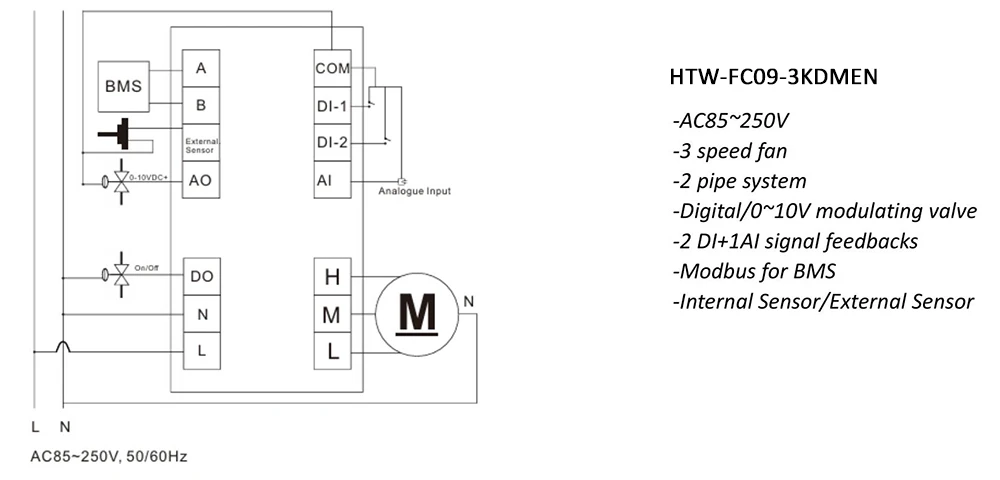

(This section provides the wiring diagram for this thermostat in the relevant HVAC control system.)
Model Code Guide
(This section explains what configuration the model code refers to.)
| HTW-FC09-xxx | xx stands for |
| FVM | 0-10V EC fan + Modulating valve |
| 24 | with 24V output for 0-10V valve |
| WF | Wi-Fi |
| ZB | Zigbee communication |
| K/S | K = Keycard; S = External sensor |
| Example HTW-FC09-FVMN-24K: it stands for the model with EC fan, 0-10V valve control, a built-in transformer featuring 24VDC output, Modbus and Keycard. For more details, kindly contact us to confirm availability. | |
Project Fit & Customization
(This section describes project suitability, system limitations, and available customization options.)
This modbus thermostat is not suitable for VRF or heat pump systems with complex logic. It does not support standalone wireless control without additional modules. It also requires correct RS485 configuration for stable ac system communication.
Despite these limitations mentioned above, we can support function customisation based on project needs. Communication options such as Wi-Fi or BACnet can be discussed. Input logic and control behaviour can also be adjusted within practical limits.
We also support OEM customisation for project supply. This includes logo printing, housing colour, and label design. Packaging and basic interface adjustments can be arranged based on requirements.
