Quick Summary
The HTW-WF03RP-16A is designed for indoor electric heating systems in residential use. It controls heating output based on room temperature. The thermostat uses a built-in sensor to maintain stable heating. It helps keep the room comfortable in daily use.
This Wifi Electric Heating Thermostat is suitable for users who need simple control and remote access. This thermostat supports app control and clear display. This thermostat improves comfort and energy use. The sections below present key functions and main parameters clearly.
Key Features
These functions support stable heating control and easy daily use.

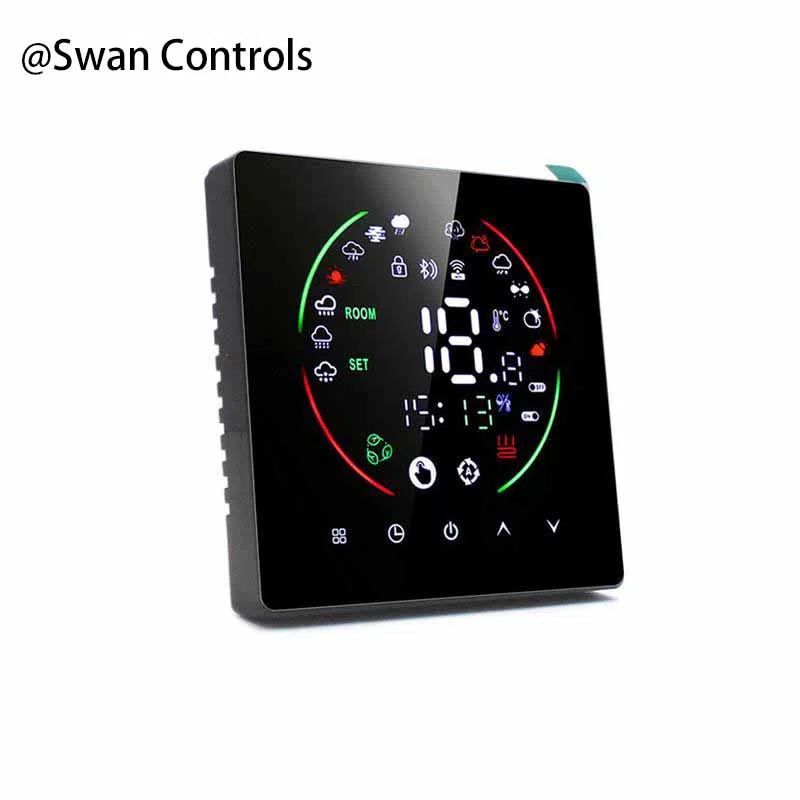

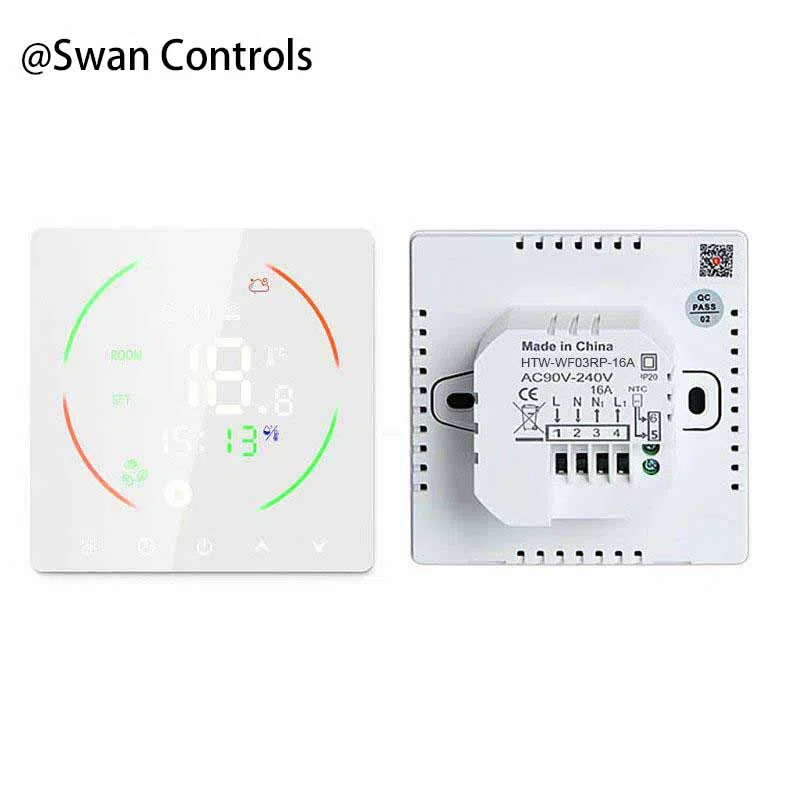

(01) Black and white colour options
Two colour options are available. This helps match different home styles. This thermostat fits modern interiors.
(02) Electric heating system
The thermostat is designed for electric heating. It controls heating output directly. This thermostat is suitable for floor or panel heating.
(03) Built-in sensor
The thermostat uses a built-in sensor to detect room temperature. It helps keep control stable. This thermostat improves comfort.

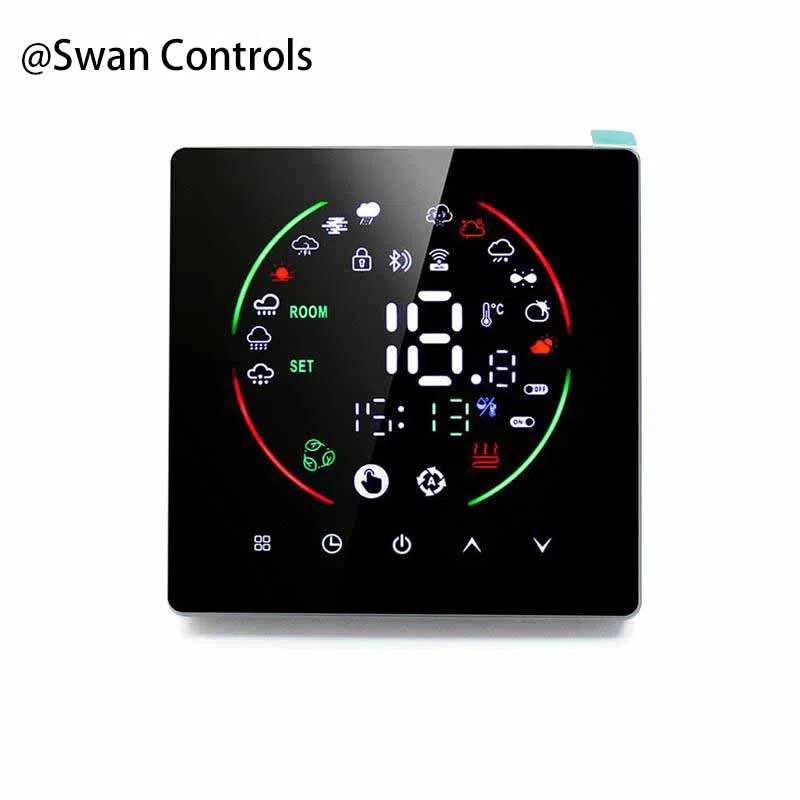

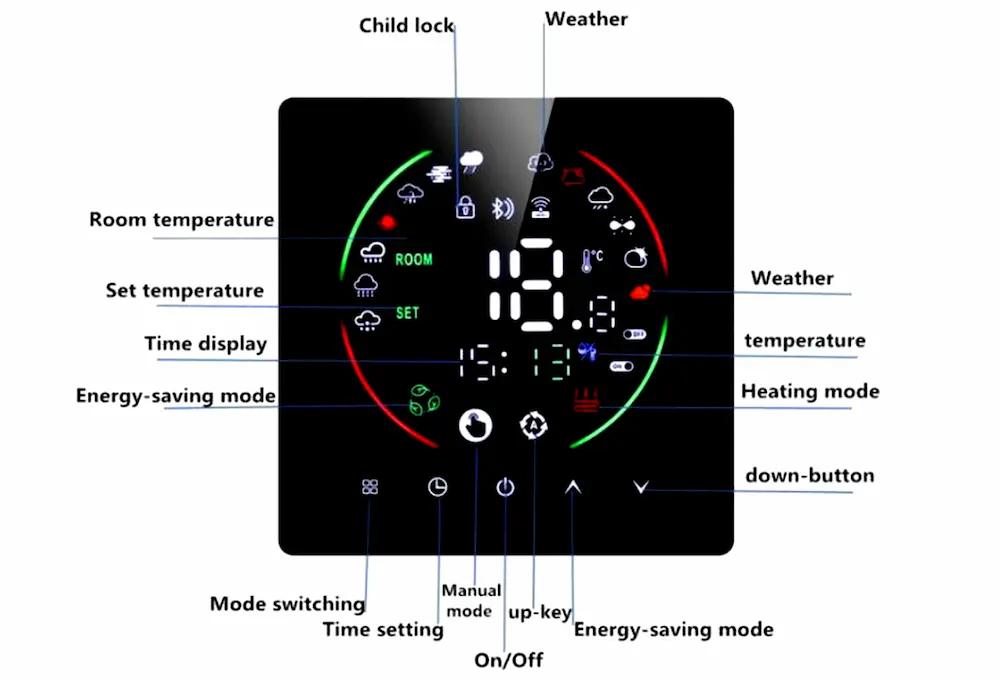

(04) LED colourful display
The display is clear and easy to read. It shows temperature and status directly. This thermostat improves user experience.
(05) Wifi application control
Wifi allows remote control through a mobile app. Users can adjust settings anytime. This Wifi Electric Heating Thermostat adds flexibility and convenience.

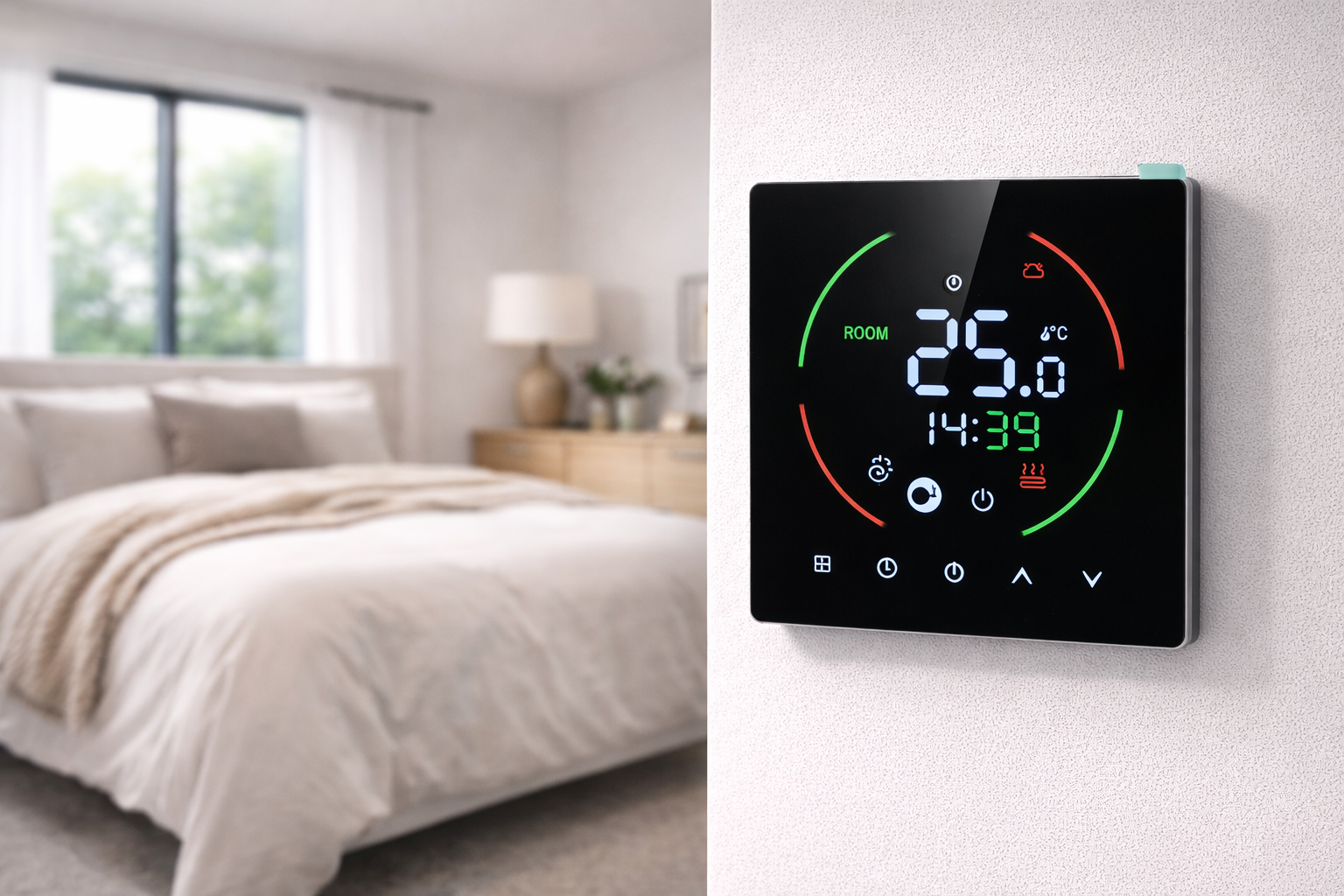

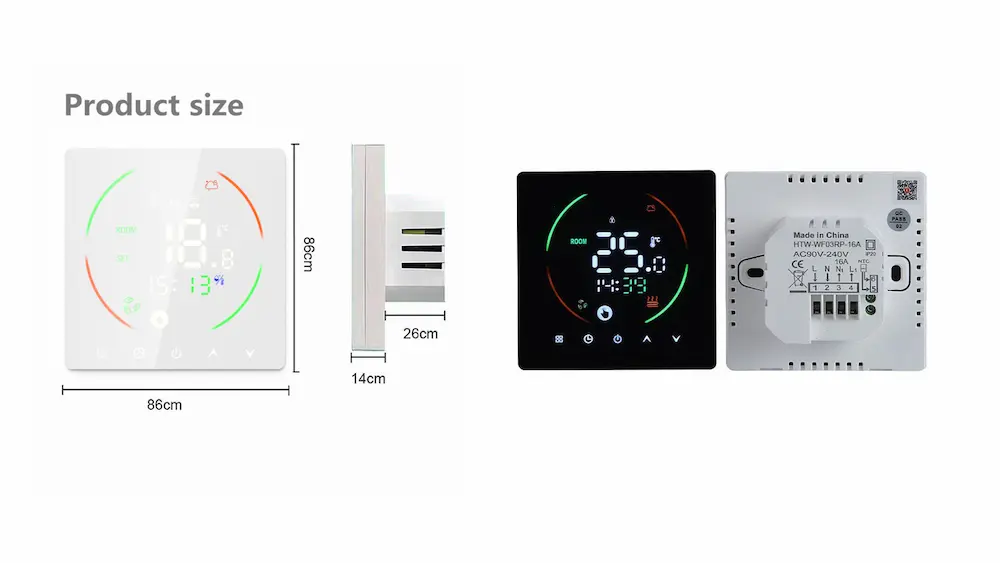

Product Design and Display
The design is simple and compact. It fits wall installation in homes. The interface uses touch buttons for easy control. This thermostat is suitable for daily operation.
Technical Specifications
Key parameters are listed below for installation and system matching.
| Parameter | Value |
|---|---|
| Power Supply | 100–250VAC, 50/60Hz |
| Power Consumption | 5A |
| Temperature Setting Range | 5–40°C |
| Accuracy | ±1°C |
| Installation | EU or Standard Electric Box |
| Protection Level | IP20 |
| Shell Material | PC+ABS (Fireproof) |
| Operation | Touch Buttons |
| Warranty | 2 Years |

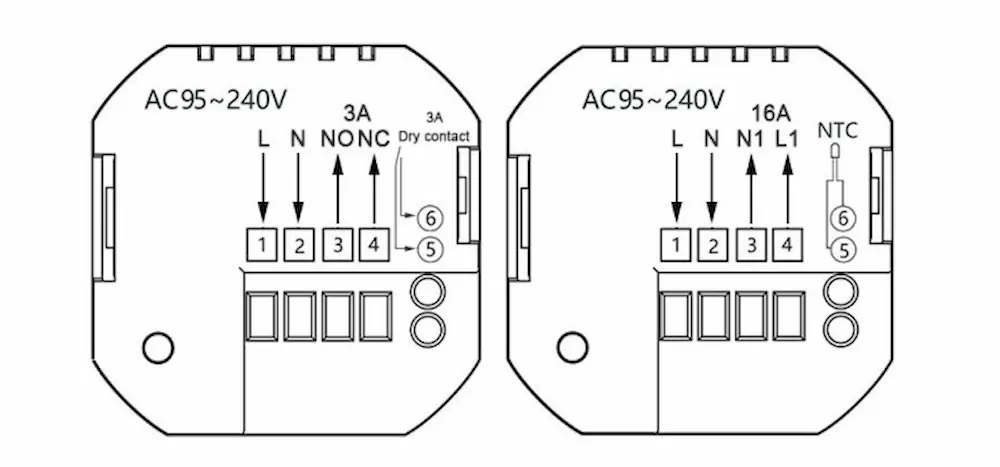

Wiring Diagram
The wiring supports electric heating output control. It connects directly to heating devices. This thermostat is simple to install.
Model Code Guide
This part helps explain the model structure and configuration options for the series.
| Heating series | xx stands for |
| 3A | Water heating |
| NV | Boiler heating |
| 16A | Electric Heating |
| Example WF03RP-XX | If XX=16A, it means Electric heating with WiFi function |
Project Fit & Customization
This model is suitable for residential electric heating systems. It supports direct control of heating output. This thermostat is ideal for home use.
Some functions can be adjusted. Control logic and display settings can be modified. This thermostat supports flexible project needs.
OEM support is available. Logo, colour, and packaging can be customised. This Wifi Electric Heating Thermostat can match different market needs.
Certifications and Compliance
The thermostat meets common safety and HVAC standards. It supports stable and safe operation. This Wifi Electric Heating Thermostat is suitable for long-term use.
Exhibition Moments
The product is shown in HVAC exhibitions. This helps improve design and application. This Wifi Electric Heating Thermostat is used in many projects.
Frequently Asked Questions
Q1: Is this thermostat suitable for electric heating?
Yes, it is designed for electric heating systems. This Wifi Electric Heating Thermostat controls heating output directly. If you need Water Gas Boiler Heating Thermostat， please check here: WF03RP-3ANV
Q2: Does it support remote control?
Yes, it supports Wifi app control. This Wifi Electric Heating Thermostat allows remote operation.
Q3: Is the display easy to read?
Yes, the LED display is clear. This Wifi Electric Heating Thermostat is easy to use.
Q4: Does it support programming?
Yes, it supports scheduling. This Wifi Electric Heating Thermostat helps manage heating.
Q5: What is the MOQ and can I get samples?
MOQ is 300 units. Samples are available. Smaller orders can be discussed.
Q6: How to place an order and arrange shipping?
Contact us for PI. Payment supports TT and PayPal. Shipping supports EXW, FOB, and DAP.
Q7: How long does production take?
Samples take about 7 days. Custom orders take 3–5 weeks. Bulk orders need about one month.
Q8: What shipping methods are available?
Express takes about 7 days. Air is similar. Sea shipping takes about one month.
