Quick Summary
The HTW-WF81-716 Wifi Electric Heating Thermostat is designed for electric floor heating systems. It supports 16A load control with L+N output terminals. The unit provides programmable control and mobile app access. Internal and external sensors improve safety and stable temperature control in daily use.
This page explains how the Wifi Electric Heating Thermostat works in real projects. It helps confirm wiring, parameter settings, and installation logic. It also supports basic selection and configuration understanding. Common questions are included to support quick project decisions.
Key Functional Highlights
(This section explains the core control functions and their practical value.)
(01) Wifi app control
The Wifi Electric Heating Thermostat supports remote control through a mobile app. Users can adjust temperature and schedules from different locations. This improves control flexibility and helps reduce energy waste during operation.
(02) Programmable scheduling
The thermostat supports time-based heating control with multiple periods. It allows automatic temperature adjustment during different times of the day. This reduces manual changes and helps maintain stable indoor comfort conditions.
(03) Internal and external sensor support
The thermostat supports both internal and external temperature sensors. The external sensor monitors floor or system temperature directly. This improves control accuracy and helps prevent overheating during long operation cycles.
(04) Knob Control with Negative Screen
The thermostat uses a knob interface with a negative display. This design provides simple operation. It also offers clear visibility in different lighting conditions.(Other design please click here)

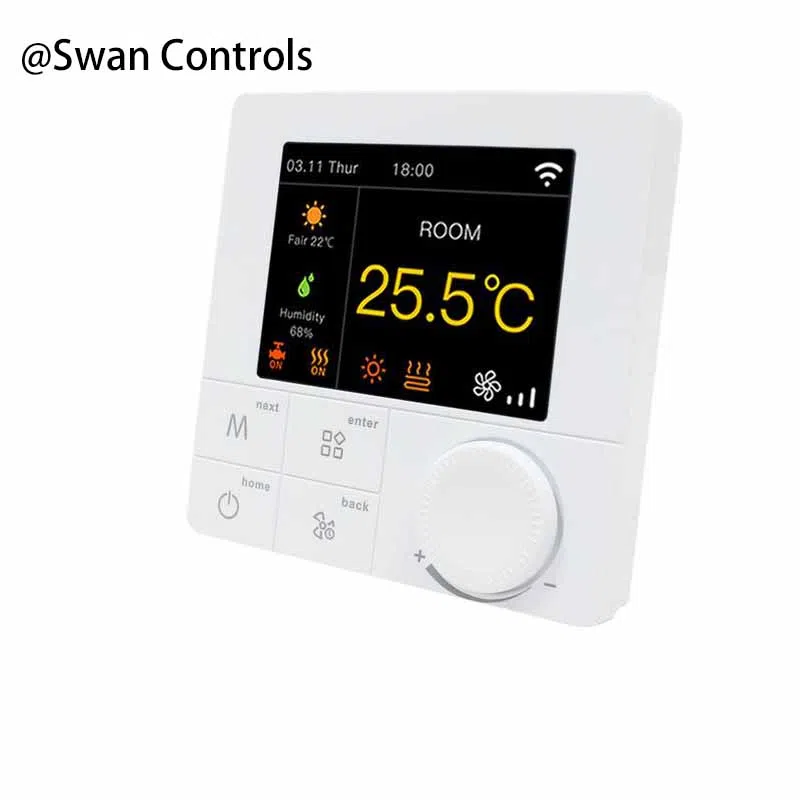

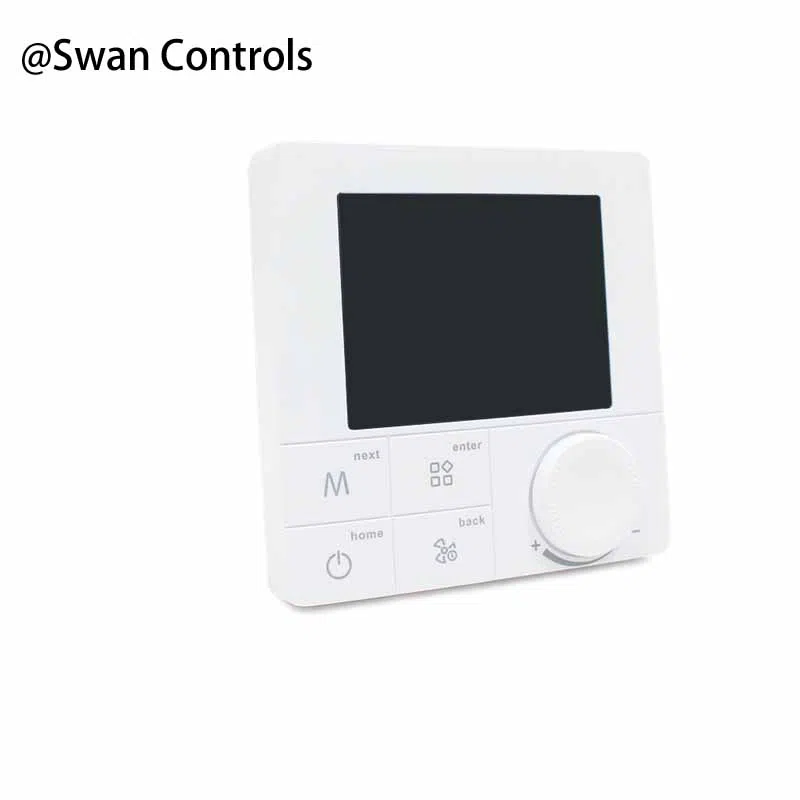

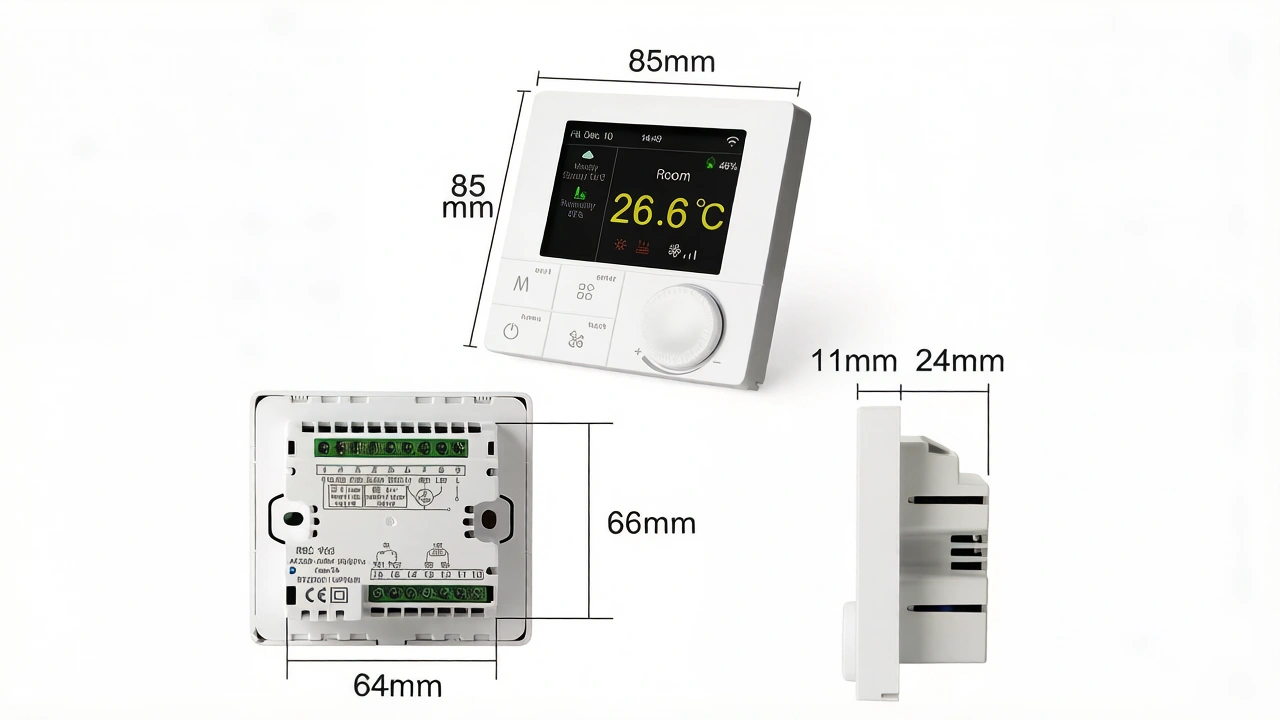

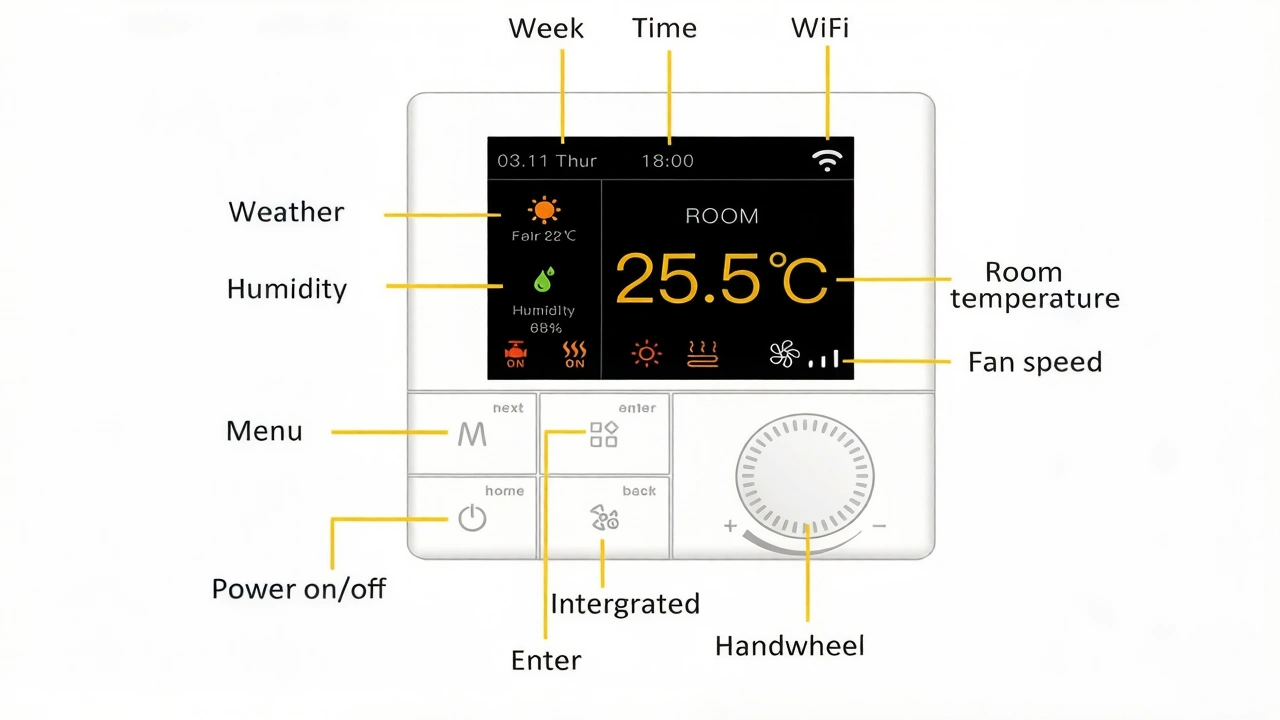

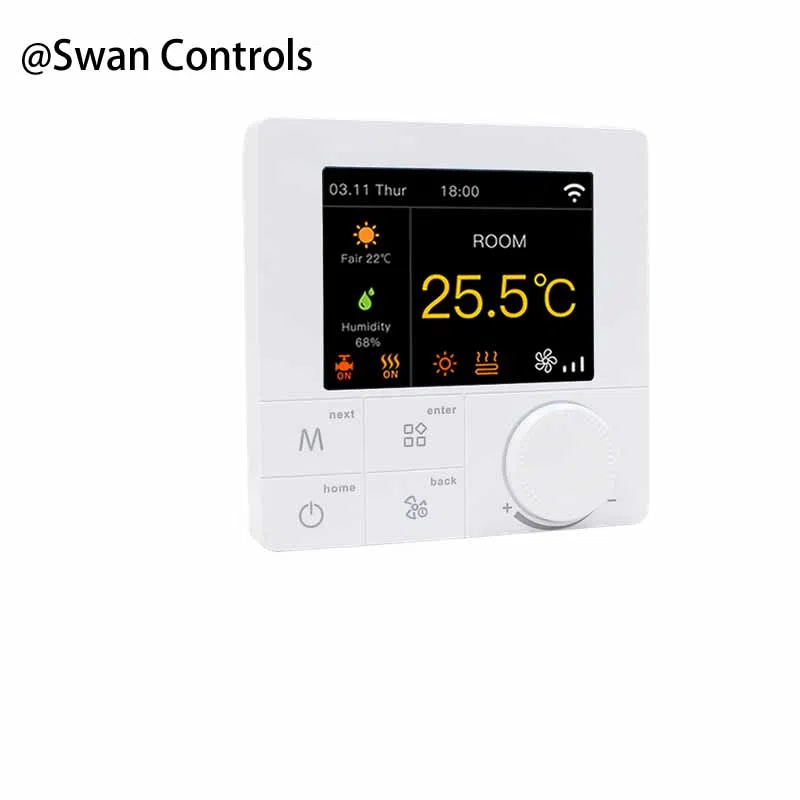

Display
(The thermostat appearance and interface layout to fully grasp the display effect and performance of the thermostat in real-world use)
Specifications
(This section lists the key parameters for reference and project confirmation.)
| Parameter | Value |
|---|---|
| Power Supply | 95~240Vac, 50/60Hz |
| Power Consumption | Wifi 3W Max |
| Temperature Range | 5–95°C |
| Floor Limit Range | 20–90°C |
| Control Accuracy | ±1°C |
| Ambient Temperature | -5–50°C |
| Protection Level | IP20 |
| Material | Anti-Flammable PC |

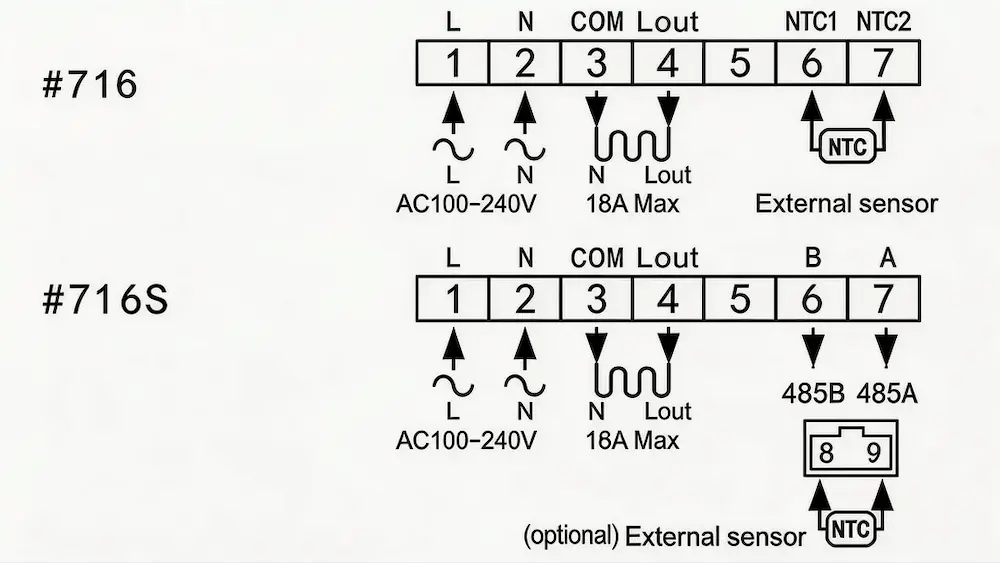

Wiring
(Clear wiring references to help you complete the installation quickly and correctly.)
Guide
(This section explains what configuration the model code refers to.)
| Heating series | xx stands for |
| 703 | Water Heating, with NC+NO+COM output terminals |
| 716 | Electric Underfloor Heating, with L+N output + External Sensor |
| 723 | Boiler Heating, with Non-Voltage Dry Contact |
| 723S | Boiler Heating, with Non-Voltage Dry Contact, Wi-fi, Modbus |
| Example HTW-WF81-716: if xx = 716, it stands for electric heating with Wi-Fi function. Most sub-models are ready-made. Kindly contact us to confirm availability. | |
Project Fit & Customization
(Where the product can be used, its limits, and OEM/ODM options.)
This Wifi Electric Heating Thermostat is not suitable for BMS systems. It does not support Modbus, BACnet, or central building control. It is not designed for outdoor use or wet areas. Projects needing strong protection or large system control should use other models.
Despite these limits mentioned above, function changes can be discussed. Communication or control logic may be adjusted for some projects. Sensor type or control range can also be modified. Final options depend on project size and technical review.
OEM services are supported for brand and product appearance. Logo printing, labels, and packaging can be customised. Colour changes and simple interface changes are also possible. These help match project needs and market positioning.
Certifications
Certification documents for Swan Controls thermostats.
Exhibition Moments
Swan Controls presenting thermostats at an international HVAC exhibition.
Frequently Asked Questions
Q1. Can this Wifi Electric Heating Thermostat control floor heating?
Yes, it is designed for electric floor heating systems. It supports 16A output and stable temperature control for typical indoor heating applications.
Q2. Does the thermostat support external sensors?
Yes, it supports both internal and external sensors. External sensors monitor floor temperature and help prevent overheating during long heating operation.
Q3. Can users control it remotely through Wifi?
Yes, the Wifi Electric Heating Thermostat supports app control. Users can adjust settings, monitor temperature, and manage schedules through a mobile application.
Q4. What is the minimum order quantity and sample policy?
We support sample orders for testing. Standard MOQ is 300 units, but smaller trial quantities such as 100 units can be discussed.
Q5. How can I place an order?
Please contact us to confirm your needs. We will issue a proforma invoice. Payment supports TT, PayPal, Visa, and more. Terms include EXW, FOB, DAP.
Q6. What shipping methods are available?
Courier delivery is recommended and takes about 7 days. Air freight also takes around 7 days. Sea freight usually needs more than one month.
Need Support?
Contact us for project advice or model selection. We can help confirm the right thermostat for your application.
